ASSA ABLOY RD200 Compact Revolving Door
This compact model integrates effortlessly into any building.

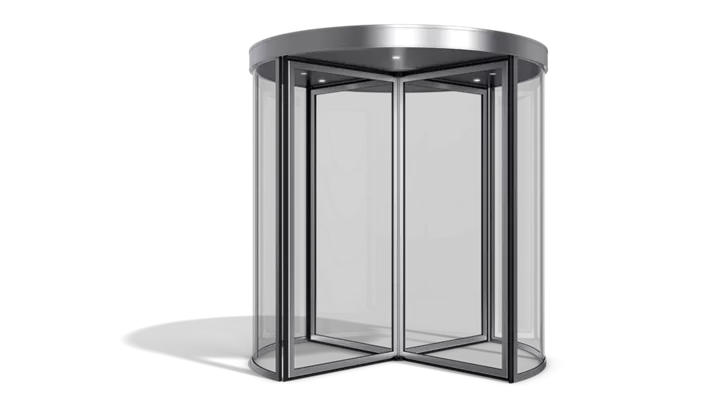

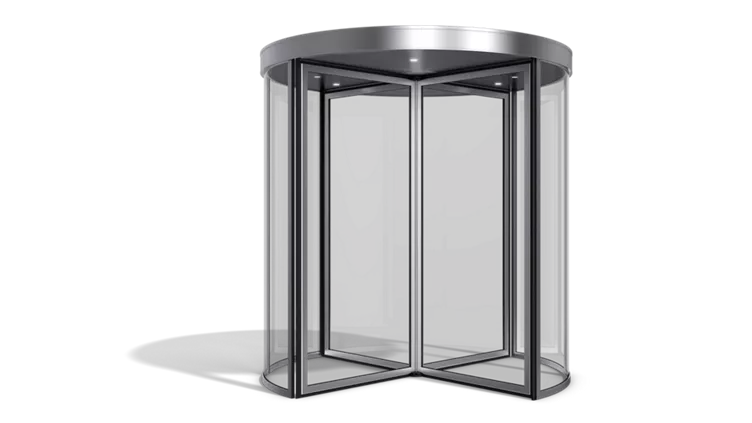

ASSA ABLOY RD150 Compact Revolving Door
The ASSA ABLOY RD150 seamlessly accommodates pedestrian traffic, combining the convenience of an automatic revolving door with the flexibility of a manual model. This entrance solution easily provides faster access, more security, and stylish versatility.
Available in various sizes and materials, these doors are built to last decades and offer complete climate control for all buildings. Quiet operation paired with three different speed options provides unmatched comfort, while RC2 and RC3 level security keep your entrance secure and safe for all users.
Unmatched convenience, security, and efficiency
The ASSA ABLOY RD150 automatic revolving door offers the perfect blend of convenience, security, and efficiency. Designed to adjust its speed to match pedestrian traffic seamlessly, it ensures smooth and faster access for all users. Whether operating in automatic or manual mode, the RD150 adapts effortlessly to varying traffic flow, allowing for speedier entry or relaxed passage as needed.
Prioritized safety
With three adjustable speed settings—Automatic High Speed, Individual Speed Control, and Low Speed—the RD150 guarantees comfort and safety. The door’s advanced safety systems remain active, preventing it from operating too quickly for the slowest pedestrian. These features ensure a comfortable experience and provide added protection for users. Rubberized safety edges minimize the risk of injury, and the Low-Speed setting helps avoid collisions when multiple users enter or exit simultaneously.
Easy to use & secure
Security is a top priority with the RD150, which offers RC2 and RC3 security levels, providing peace of mind for you and your customers. The door’s plug-and-play design allows for quick and easy setup, and its manual push function enables users to pass at their own pace.
Versatile options for every building
Available in three or four-door configurations with various sizes and materials, the ASSA ABLOY RD150 is an ideal solution for any modern building. For a complete entrance system, we highly recommend pairing it with an ASSA ABLOY swing or sliding door.
With so many different people flowing through your facility, providing an entrance which is accessible, safe and convenient to any visitor is essential. Our revolving door portfolio offers a variety of different sizes and specifications, with features such as power assistance, rotation speed control and the adjustable stop-motion of the door to increase safety, accessibility and comfort.
Optimized door designs for accessibility and capacity
By design, a four-wing door has a wider throat opening than a three-wing door of similar diameter. The wider throat opening is more accessible, increasing user comfort and capacity. In smaller-diameter doors, the throat opening width becomes an influential factor in determining capacity. The two-wing option is used for our high-capacity doors, and come equipped with an automatic middle sliding door.
Product series specifications
| RD100 Manually operated with power | 1800 – 3000 mm | RD400 High Security | 1600 – 2500 mm |
| RD150 Fully Automatic | 1800 – 3000 mm | RD600 High Capacity 2-wing | 3600 – 5400 mm |
| RD200 Fully Automatic | 1800 – 4000 mm | RD700 High Capacity 3-wing | 4200 – 6200 mm |
| RD300 All Glass | 1800 – 3000 mm |
- Internal diameter D (mm) = 1800 – 3000
- Internal passage height IPH (mm) = 2200 – 3000
- Canopy height CH (mm) = 200 –1250
- Power supply: 100-240 VAC+10/-15%, 50/60 Hz, mains fuse max. 10 A (building installation)
- Powder-coated finish (RAL colours)
- Stainless steel cladding
