ASSA ABLOY RD700 High Capacity Revolving Door

  • Hospitality
  • Retail
  • ASSA ABLOY

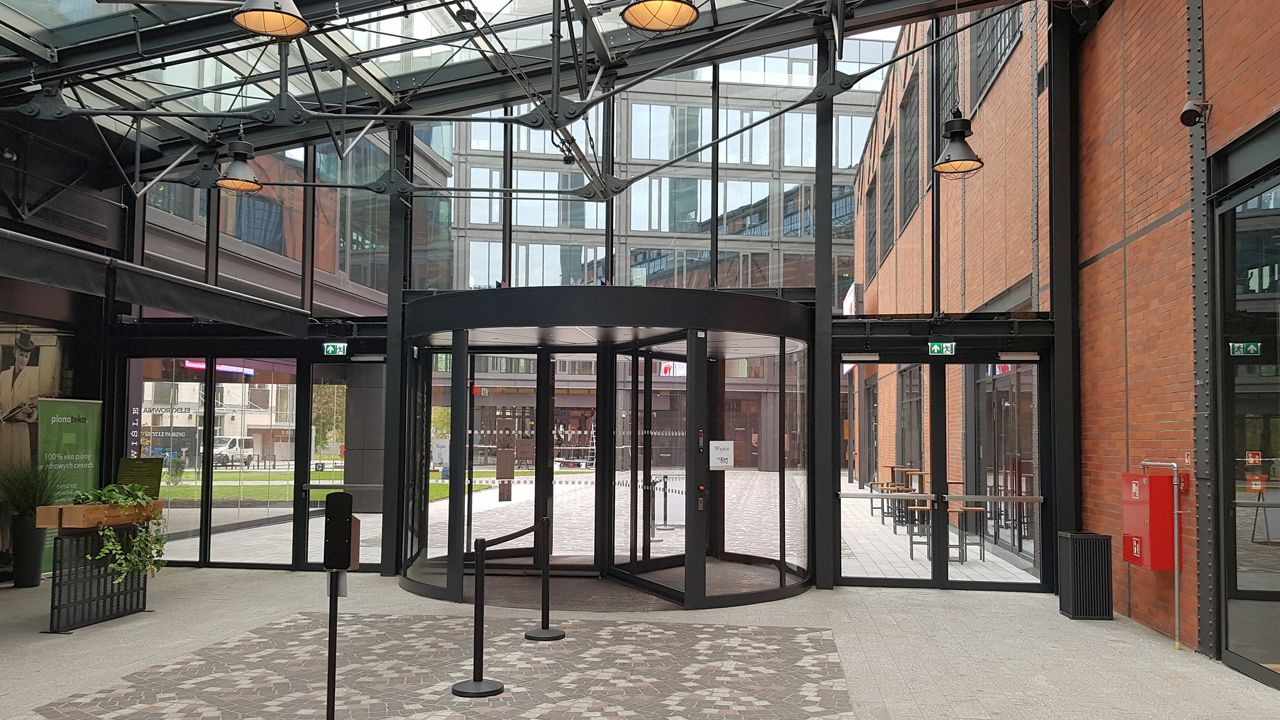

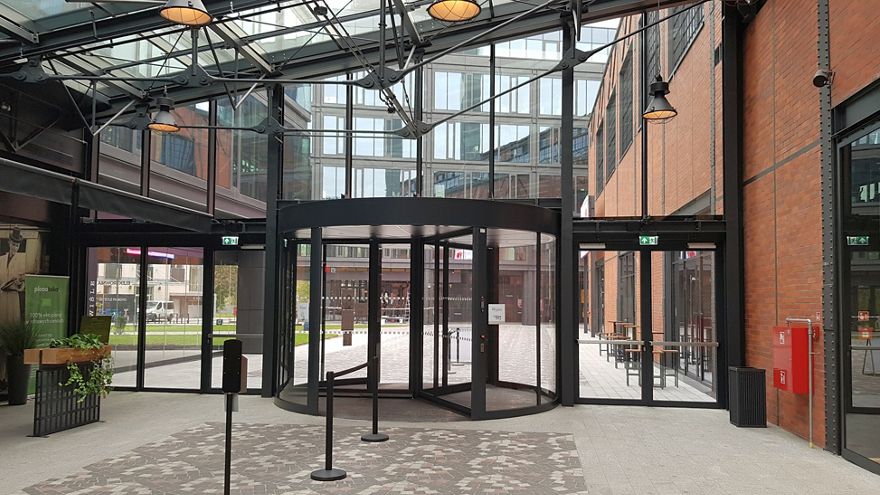

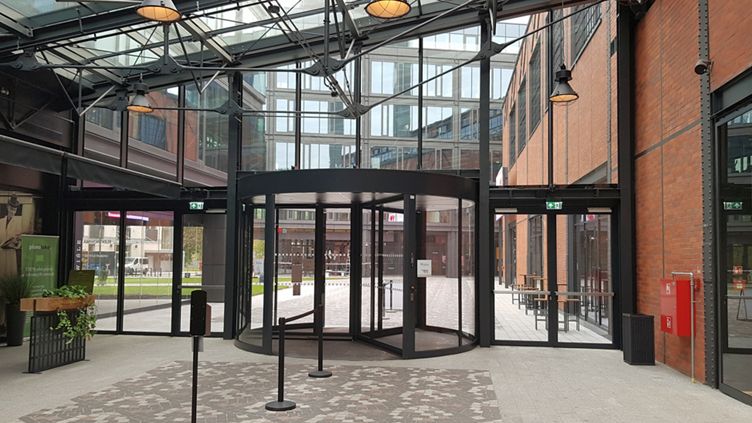

The large ASSA ABLOY (previously Besam) RD700 three-wing revolving door for busy entrances.

The ASSA ABLOY RD700 creates a spacious and welcoming entrance that can accommodate shopping trolleys, luggage carts and wheelchairs with ease. The full rotating ceiling ensures even lighting and eliminates brush marks, while hidden sensors allow for an uncluttered presentation and clean lines throughout.

The ASSA ABLOY RD700’s drive mechanism is located in the periphery of the drum, reducing stress on the drive itself and resulting in lower maintenance costs. An optional night-closing door provides an elegant solution for optimum security. In emergency situations, the door wings are released immediately and then folded to facilitate escape.

The ASSA ABLOY RD700 (previously Besam) is designed for placement directly on the finished floor surface and is delivered in a counter-clockwise rotation as standard.

Safety compliance

The ASSA ABLOY RD700 complies with: Machinery Directive (2006/42/EC), Low Voltage Directive (2006/95/EC), Electromagnetic Compatibility Directive (2004/108/EC) and requirements according to DIN 18650, EN 16005.

Energy-saving benefits

A revolving door is “always open, always closed” meaning air exchange is minimal. Not only will your indoor climate be safeguarded against unwanted air infiltration for the comfort of your visitors and staff, you will also spend less on heating and cooling of your building.

How to buy this product
Service and maintenance
3D render of the The ASSA ABLOY RD3L High Capacity Revolving Door with people exiting through it.3D render of the The ASSA ABLOY RD3L High Capacity Revolving Door with people exiting through it.

BIM objects

Revit
ASSA ABLOY Revolving RD700.rfa(RFA, 3 MB)
  • ASSA ABLOY RD3L 3W High Capacity Revolving Door

    • Product ID: RD3L
    • Power supply: 230 V, 50Hz, mains fuse max 10 A or 100-120V, 50/60Hz, mains fuse max 16A
    • Power consumption: 400 W /30 W resting
    • Lighting LED: 5 W 75 W
    • Ambient temperature: -20 to +50°C
    • Anodizing
    • Internal height non-standard (2000 to 2600 mm)
    • Fascia height non-standard (340 to 1250 mm)
    • Powder-coated finish (RAL colours)
    • Stainless steel cladding
  • Product leaflet
    Product leaflet ASSA ABLOY RD700(PDF, 797 KB)
    Product drawings
    Product drawing ASSA ABLOY RD700 CAD for customer floor preparation size 54-62(PDF, 870 KB)
    Product drawing ASSA ABLOY RD700 CAD for customer floor preparation size 54-62(DWG, 1 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer floor preparation size 42-48(PDF, 1 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer floor preparation size 42-48(DWG, 1 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer NCD 2 door size 42-48(PDF, 1 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer NCD 2 door size 42-48(DWG, 3 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer NCD 2 door size 54-62(PDF, 1 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer NCD 2 door size 54-62(DWG, 3 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer size 42-48(PDF, 1 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer size 42-48(DWG, 2 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer size 54-62(PDF, 1 MB)
    Product drawing ASSA ABLOY RD700 CAD for customer size 54-62(DWG, 2 MB)
    Product drawing ASSA ABLOY RD700 P burglar resistant RC3 2 door size 42-48(PDF, 1 MB)
    Product drawing ASSA ABLOY RD700 P burglar resistant RC3 2 door size 42-48(DWG, 3 MB)
    Product drawing ASSA ABLOY RD700 P burglar resistant RC3 2 door size 54-62(PDF, 1 MB)
    Product drawing ASSA ABLOY RD700 P burglar resistant RC3 2 door size 54-62(DWG, 2 MB)
    Product drawing ASSA ABLOY RD700 P burglar resistant RC3 floor preparation size 42-62(PDF, 1 MB)
    Product drawing ASSA ABLOY RD700 P burglar resistant RC3 floor preparation size 42-62(DWG, 1 MB)
    User manual
    User manual ASSA ABLOY RD700-3 (CDC500)(PDF, 5 MB)
    Product drawings (.pdf)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_NCD_2-DOORS_size_42_48_en(PDF, 1 MB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_NCD_2-DOORS_size_54_62_en(PDF, 1 MB)
    Product_drawing_ASSA_ABLOY_RD3L_P_Burglar_resistant_RC3_2-DOORS_size_42_48_en(PDF, 1 MB)
    Product_drawing_ASSA_ABLOY_RD3L_P_Burglar_resistant_RC3_2-DOORS_size_54_62_en(PDF, 1 MB)
    Product_drawing_ASSA_ABLOY_RD3L_P_Burglar_resistant_RC3_floor_preparation_size_42-62_en(PDF, 241 KB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_size_42_48_en(PDF, 1 MB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_size_54_62_en(PDF, 1 MB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_floor_preparation_size_54_62_en(PDF, 136 KB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_floor_preparation_size_42_48_en(PDF, 131 KB)
    Product drawings (.dwg)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_floor_preparation_size_42_48_en(DWG, 159 KB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_floor_preparation_size_54_62_en(DWG, 116 KB)
    Product_drawing_ASSA_ABLOY_RD3L_P_Burglar_resistant_RC3_floor_preparation_size_42-62_en (1)(DWG, 164 KB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_NCD_2-DOORS_size_54_62_en(DWG, 3 MB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_NCD_2-DOORS_size_42_48_en(DWG, 3 MB)
    Product_drawing_ASSA_ABLOY_RD3L_P_Burglar_resistant_RC3_2-DOORS_size_54_62_en(DWG, 3 MB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_size_42_48_en(DWG, 2 MB)
    Product_drawing_ASSA_ABLOY_RD3L_P_Burglar_resistant_RC3_floor_preparation_size_42-62_en(DWG, 164 KB)
    Product_drawing_ASSA_ABLOY_RD3L_CAD_for_customer_size_54_62_en(DWG, 2 MB)
    Product_drawing_ASSA_ABLOY_RD3L_P_Burglar_resistant_RC3_2-DOORS_size_42_48_en(DWG, 3 MB)
  • Product variations
    3-wing
