ASSA ABLOY RD300 All-glass Revolving Door

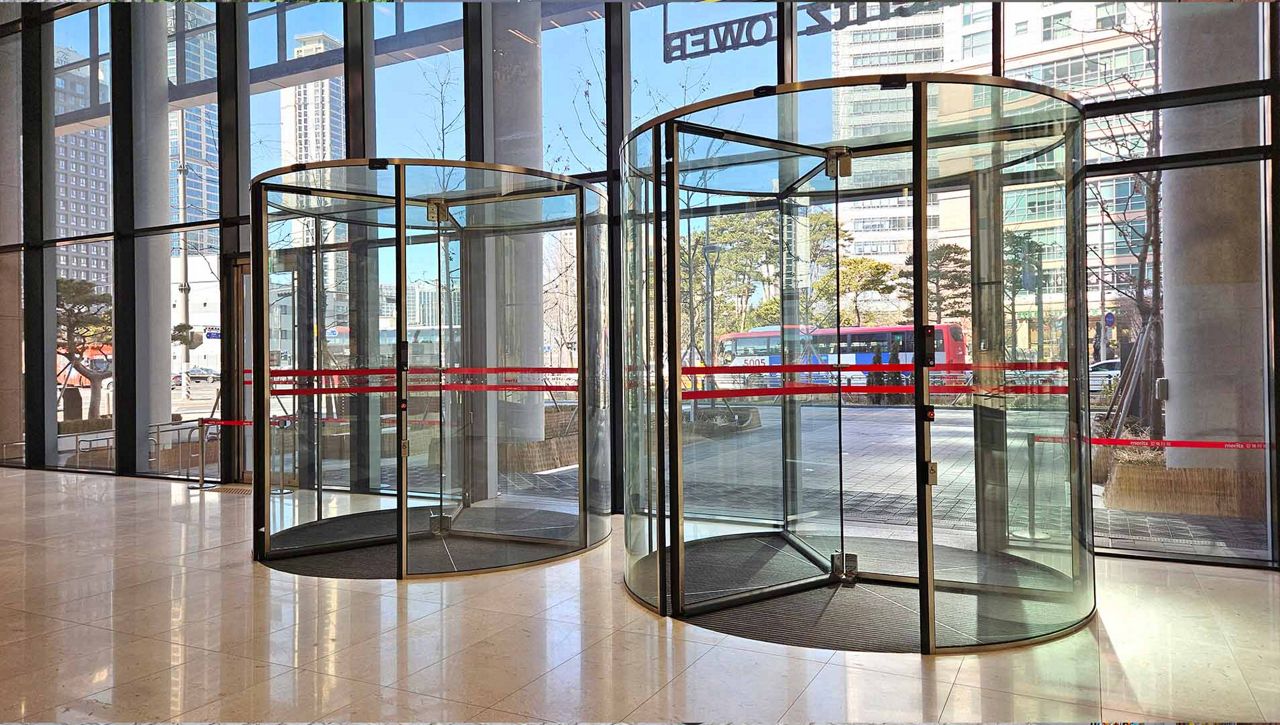

Beautiful all-glass ASSA ABLOY (previously Besam) RD300-3 and ASSA ABLOY RD300-4 revolving doors.
The spectacular, all-glass three- and four-wing ASSA ABLOY RD300-3 and ASSA ABLOY RD300-4 revolving doors, with their unique, are the crown jewels of our energy-saving entrance portfolio and a high-tech masterpiece for any building. With the all-glass revolving door, your indoor climate will be safeguarded against unwanted air infiltration, enabling you to take control of your energy consumption without detracting from a welcoming, luxurious entrance.
ASSA ABLOY all-glass revolving doors can be used for both internal and external installations, as single installations or for multiple main entrances.
Safety compliance
ASSA ABLOY RD300-3 and RD300-4 are fully compliant with EN 16005 safety standard.
ASSA ABLOY RD300 All-glass Revolving Door
BIM object
ASSA ABLOY RD300 All-glass revolving Door
Environmental Product Declaration
Available for downloads
ASSA ABLOY RD300-3 and ASSA ABLOY RD300-4 revolving doors
- Three- or four-wing configuration
- Power supply: 230 V, 50 Hz, mains fuse max 10 AT,100-120 V, 50/60 Hz, mains fuse max 16 AT
- Power consumption:
- Standard drive unit 200W / resting 30W
- Max. support 400W / resting 30W
- Powder-coated finish (RAL colours)
- Fascia, standard height 60 mm
- Internal height non-standard (2000 - 3000 mm)
- Emergency stop button
- Speed limiter (Control unit built-in under the ground)
Product drawing (.dwg)
Product drawing (.pdf)
Product variations RD300-3, 3 wings RD300-4, 4 wings
