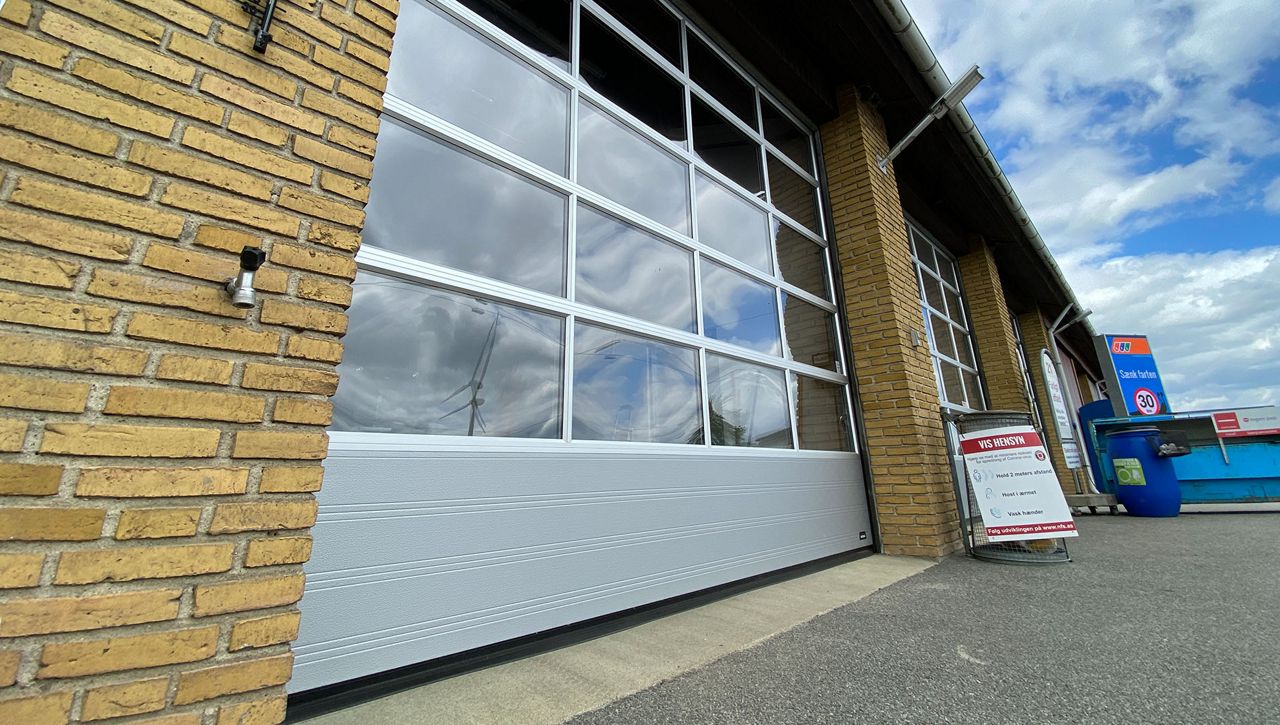

NASSAU 9000M Sectional Door
The NASSAU 9000M (Mix) Sectional Door fuses features from the 9000F and 9000G sectional doors into a hybrid creation. Benefit from the light-inflow design elements of the 9000G and the highly insulating foam sections of the 9000F with this bespoke sectional door. You can also choose from a wide variety of different track systems and colours for your sectional door.
Optimised Insulation
By combining insulated sections with glazed sections, the NASSAU 9000M has a section height of 675mm with a thickness of 44mm. In addition, the bottom section consists of 9000F panel that has highly insulated polyurethane foam.
The NASSAU 9000M Sectional Door panels are one of the best insulated on the market. This is partially due to the mix of highly insulated polyurethane foam and effective broken thermal bridges. Outside temperatures cannot penetrate through the door leaf due to the broken thermal bridges in the foam’s construction.
Adaptable Window Choices
You have a wide range of different windows to choose from for your NASSAU 9000M Sectional Door. They can be supplied in a combination of tempered glass or polycarbonate as an alternative to the 2.5mm double standard acrylic (SAN), if requested. An acrylic window with a scratch resistant finish and perforated panels can be fitted for more sensitive environments if you need added scratch protection.
Superior Seal Security
In keeping with the models that combine to create this NASSAU 9000 M sectional door, strong sealing strips have been built into the door to provide wind and rainwater protection. To guarantee a tight seal, side sealing strips have been attached to the vertical tracks, with the bottom section benefitting from a rubber profile with internal and external lip seals.
Stay Safe
The NASSAU 9000M Sectional Door complies with the EN standard in force and CE marking requirements. Not only do you have broken spring protection supplied with the NASSAU 9000M, but you also benefit from built-in broken wire and patented finger protection between the sections. The latter of which means you cannot trap your fingers while the door is moving due to the inclusion of protection plates.
NASSAU 9000M (Mix) overhead sectional door
- Standard size up to (WxH) [1]: 8000 x 6000 mm
- Panel thickness: 44 mm
- Wind load, EN 12424 [2]: Class 3
- Thermal transmittance, EN 12428 [2]
- Full panel (alum.) door [2] : 1,72 W/(m2K)
- Water penetration, EN 12425 [2]: Class 3
- Air permeability, EN 12426 [2]: Class 3
[1] Other sizes on request
[2] Values for aluminium door measuring 4 x 4 metres with one 90M window section with double acrylic fillings
Product variations Low Lift High Lift Standard Lift Vertical Lift with bracket-secured springs Low Head with standard spring placement High Lift with bracket-secured springs
