ASSA ABLOY RP100 SimplySafe

The ASSA ABLOY RP100 SimplySafe is a high-performance safety door specifically designed to safeguard people and processes in automated environments. As an essential guarding component, it effectively segregates hazardous areas, protecting operators from moving parts, high-risk zones, or active machinery during operation. By preventing unauthorized access during automatic cycles, the RP100 SimplySafe ensures that safety-critical areas remain secure at all times.

At the same time, it allows for safe, controlled access when maintenance, inspections, or manual interventions are required – without compromising operational integrity. The door integrates seamlessly with safety interlocks and control systems to ensure safe restart conditions, supporting compliance with key safety standards such as DIN EN ISO 14120 and EN 619.

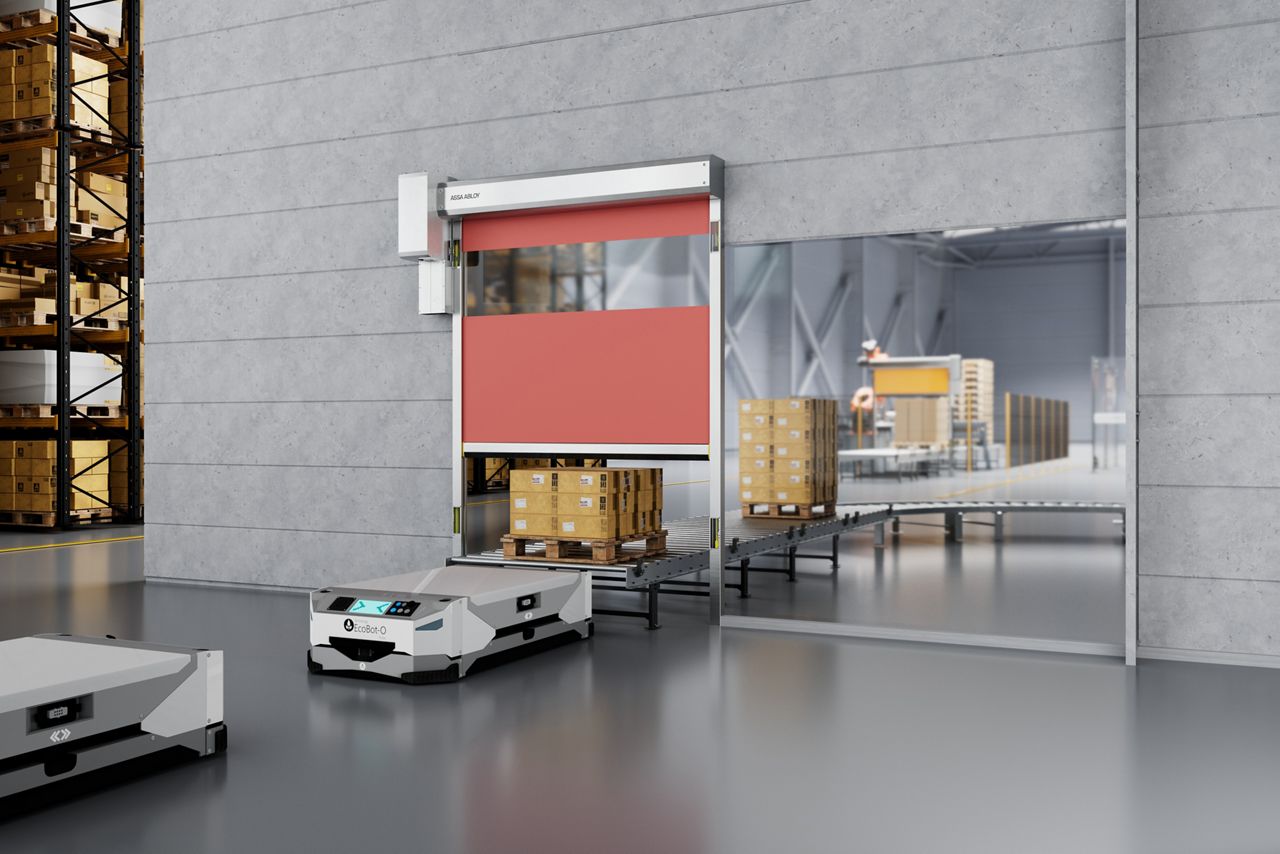

A red RP100 SimplySafe

Built for productivity, driven by safety

In the automated warehouse and material handling industry, operational efficiency and workplace safety are critical. Thanks to our new high-performance machine guarding door ASSA ABLOY RP100 SimplySafe, you can keep your workflow safe, smoth, uninterrupted.

Safety
Light curtain and Safety limit switch preventing access to danger zones and guaranteeing process safety
Reliability
Reliable, high-cycle operation keeps systems running
Simplicity
Space saving simple design and easy integration without sacrificing quality and reliability

The solution to your needs

Reduced downtime, enhanced operator safety through certified components, and full regulatory compliance for complete peace of mind. SimplySafe is our machine guarding door designed to offer maximum reliability with minimal complexity.

It solves the most common guarding challanges:

Reduces downtime - Reliable, high-cycle operation keeps systems running.
Protects people - Prevents accidental access to hazardous machine areas.
Blocks unauthorized entry - Ensures only permitted acess during safe conditions.
Simplifies integration - Easily connects to safety PLCs and automation systems.
Ensures compliance - Meets DIN EN ISO 14120, EN 528, EN 619.
Fits tight spaces - Slim, space-saving design ideal conveyors and AS/RS.

Equipped with a safety limit switch (PL e, SIL 3), SimplySafe ensures the door is securely closed before operation begins - preventing access to danger zones and guaranteeing process safety.

Door width min/max: 500 / 3000 mm
Door height min/max: 500 / 3000 mm
Speed open/close: max. 2,2/1,5 m/s
Cycles per minute: max. 5
Operation temperature: +10° C - + 45° C
Door Curtain: 1,3 mm TOP Polyester fabric double coated PVC-1700 m/m² - 1,3 mm thickness available in Blue similar RAL 5010, Orange similar RAL 2004, Grey similar RAL 7035, Red similar RAL 3002.
- As Option: PVC fabric, flame resistant B1 according to DIN 4102-1, only Orange similar RAL 2008.
Side frame: Galvanized steel sheet profile 60 x 60 mm
Top roll cover and motor cover (optional): Galvanized steel sheet
Safety limit switch integrated in the side frame (PLe cat 4 according to EN ISO 13849-1 and SIL CL 3 according to EN 62061), ensures the door is securely closed before operation begins.
- Standard: one safety limit switch
- As option: two safety limit switches

Control system: MCC, modular frequency converter control system (Vector Control)
Drive unit: GfA gear motor 0,75 kW with safety catching device and pulse encoder
- As Option: VARIO DRIVE configuration available, but without motor cover, Motor position can be chosen in step of 45°.
Protection IP55
Safety light curtain in the side frames, in door line. Only if DH ≥ 1630 mm and DW ≥ 1500 mm. Protecting up to max. height 2500 mm. Spacing between beams 45 mm. For DH < 1.630 or DW < 1.500 stationary photocells integrated in the side frames at 280 mm + X- Level from bottom.
Self-Supporting: the door can be equipped with a substructure that mounting directly to the floor is possible
The door complies with the following standards EN ISO 14120-2015 EN ISO 14119-2015, EN ISO 13849-1:2015, EN 619:2022, EN 528/2021

Common Applications

Handling and storage systems
End of lines
Conveyor systems
Warehouse automation
Good lifter
Palletizing systems
Assembly lines

Applications in action

0:00
0:00 / 0:31

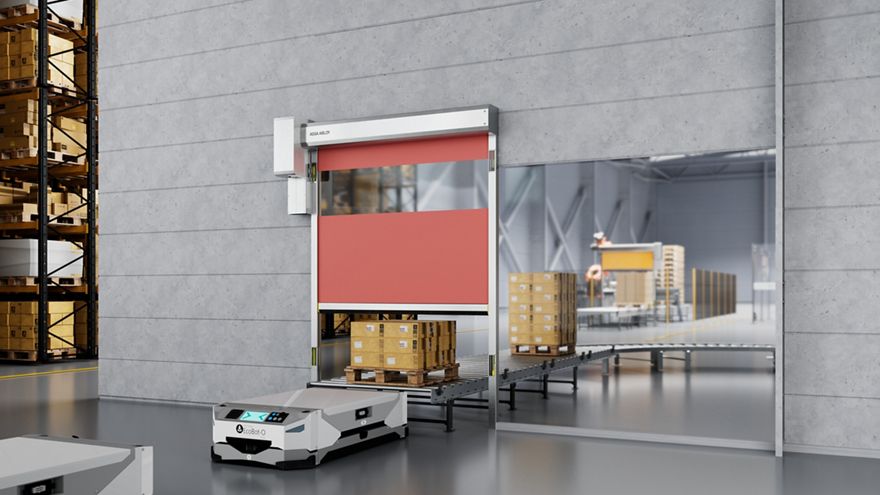

Door in a conveyor belt system, handover of the product at the end to a AGV
0:00
0:00 / 0:31
Integrated in Palletizer
