ASSA ABLOY DL6221TA (formerly Crawford) Teledock Autodock
Smart telescopic dock leveller for external loadhouse integration

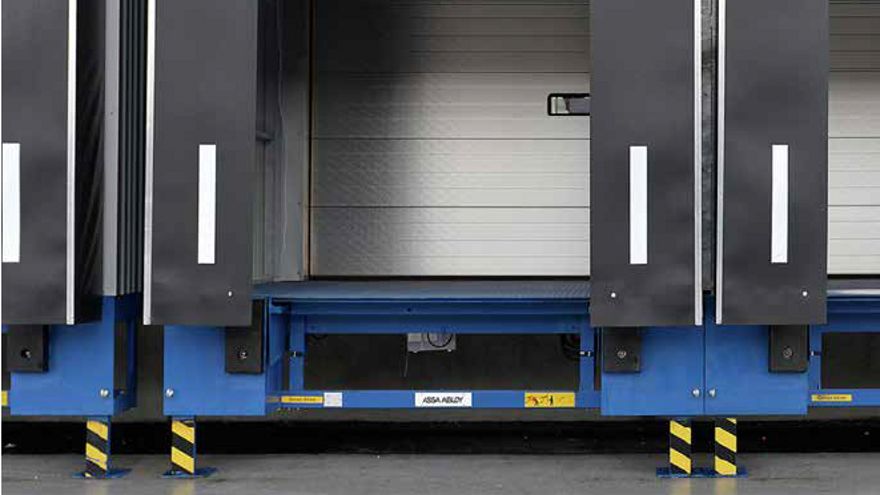

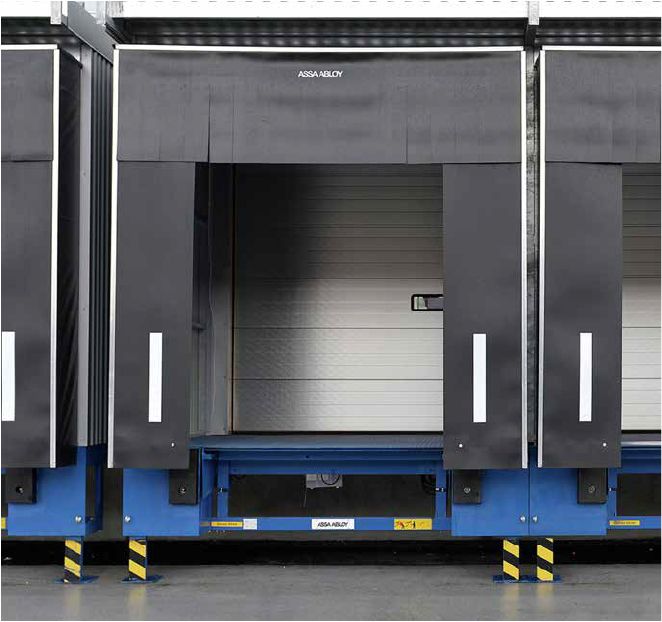

The ASSA ABLOY DL6221TA Teledock Autodock is a heavy-duty leveller with a 100 kN load capacity and a self-supporting frame. It’s designed for full integration into an external loadhouse setup—bringing the leveller, shelter, and door together in one smart, space-saving solution that protects your indoor environment.
Strong, stable, and built to last
Crafted from high-grade S355 steel, this dock leveller forms a solid connection between building and truck. It’s robust by design and requires minimal maintenance—so you can count on consistent performance day after day.
Extend your reach—and your efficiency

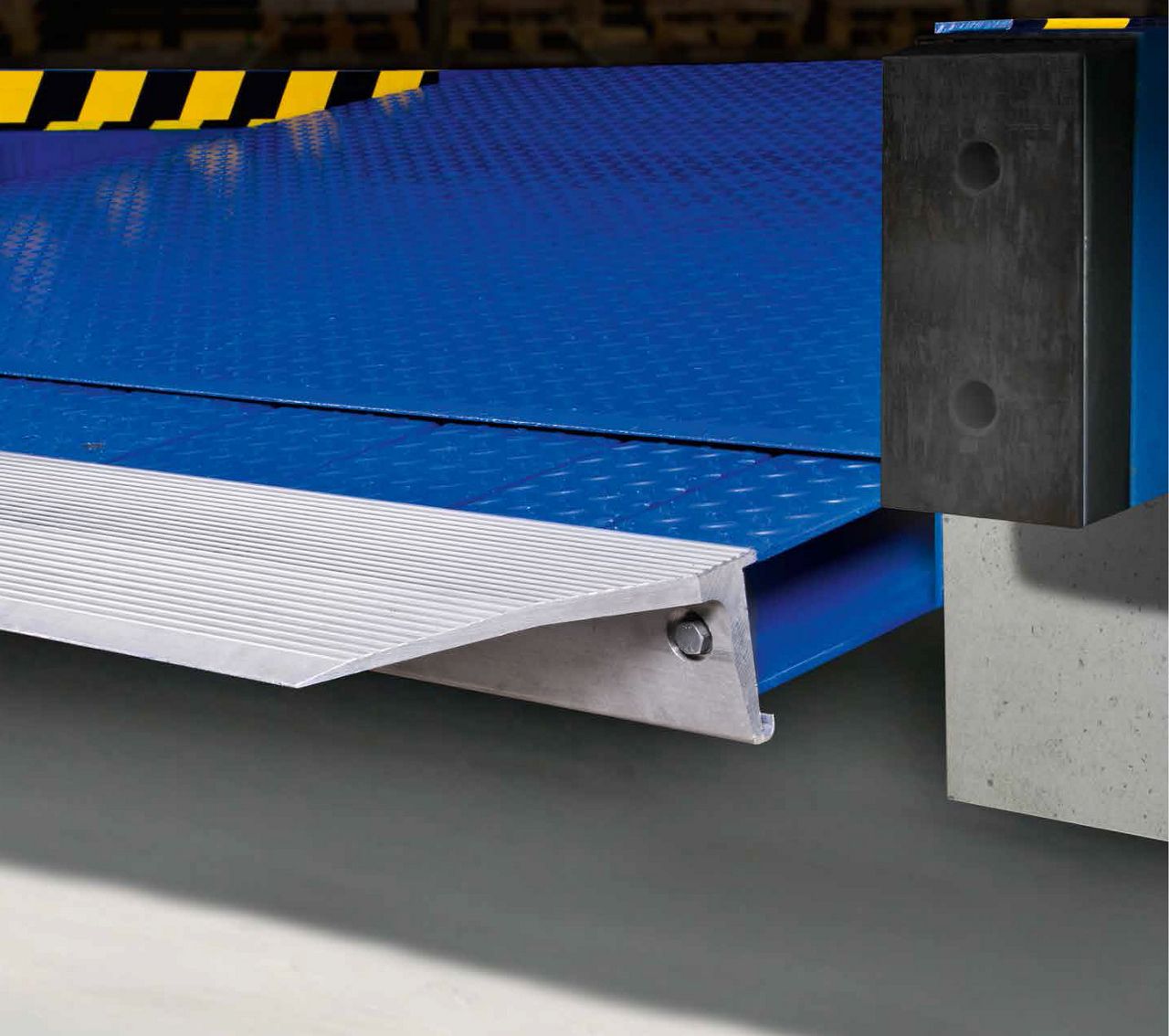

The hydraulic telescopic lip extends precisely to the truck bed, creating a wider, more secure contact area. That means better load positioning, safer transfers, and more efficient use of every vehicle.
Smarter tools for better decisions
DL6221TA is IoT-enabled and ready to connect with ASSA ABLOY Insight. You get real-time monitoring, predictive maintenance alerts, and data to drive sustainability and efficiency. Combined with smart dock doors, it gives you full visibility and control.
One touch for total control
With the ASSA ABLOY 950 series control unit, you can manage the leveller, shelter, and door from one easy interface. Just a few intuitive buttons—and no need for complex wiring or multiple control panels.
ASSA ABLOY DL6221TA Teledock Autodock
- Product ID: DL6221TA
- Normal length: 2000, 2450, 3000 mm (other sizes on request)
- Normal width: 3300, 3500, 3600, 3750 mm
- Load capacity: 100 kN (10 tonnes)
- Vertical working range; Rise above dock up to 415 mm, Fall below dock down to 430 mm
- Platform tear-plate thickness : 8 mm S355 ( 8/10 mm)
- Lip material and length: Steel, 500/1000 mm
- Control unit protection class: IP 54
- Nominal voltage: 400V 3-phase, 230V 3-phase
- Nominal motor power: 1,5 kW
- Temperature range hydraulic oil: -20°C - +60°C
- European standard: EN1398 dock levellers
