ASSA ABLOY DL6221T (formerly Crawford) Teledock 100
Heavy duty precision docking with extra reach

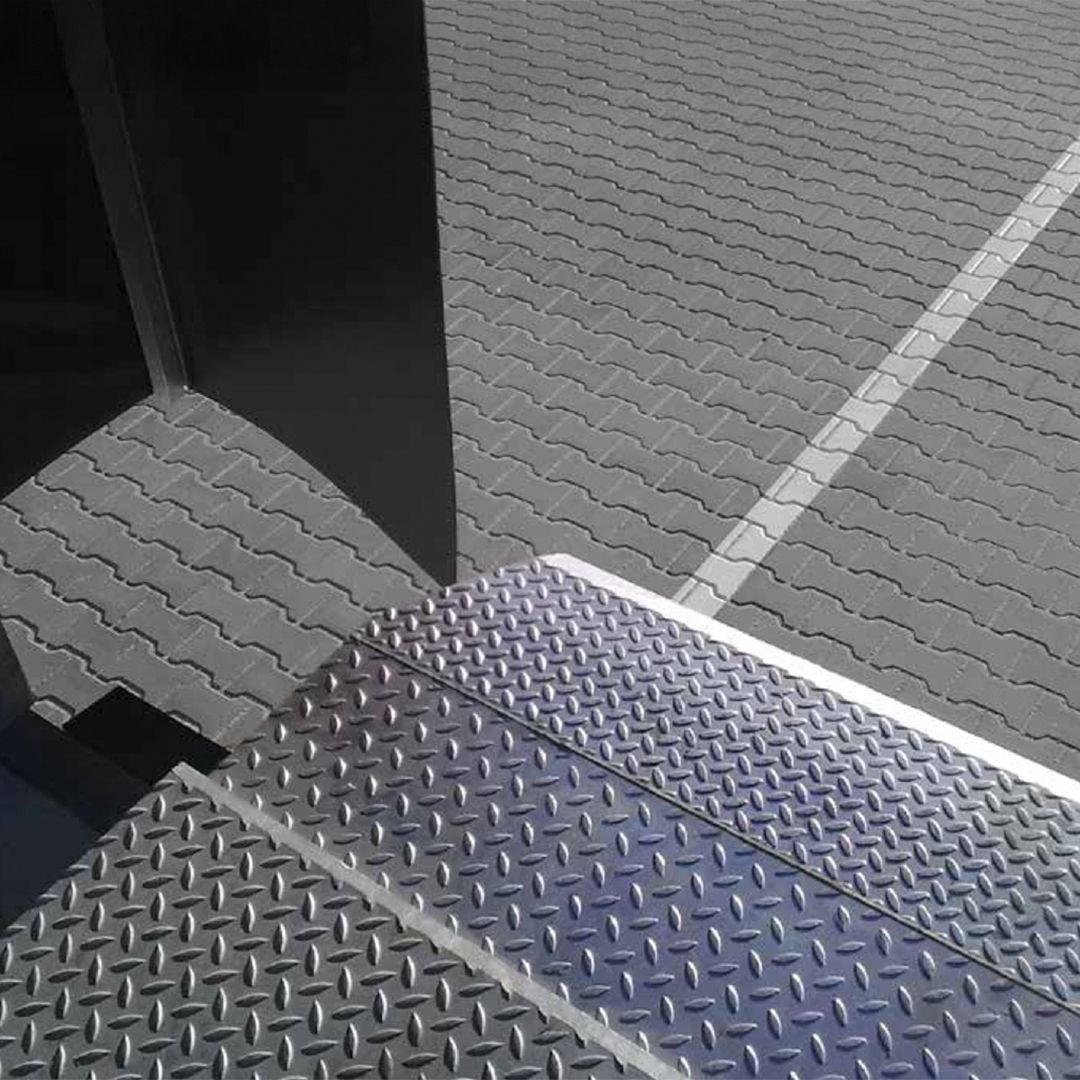

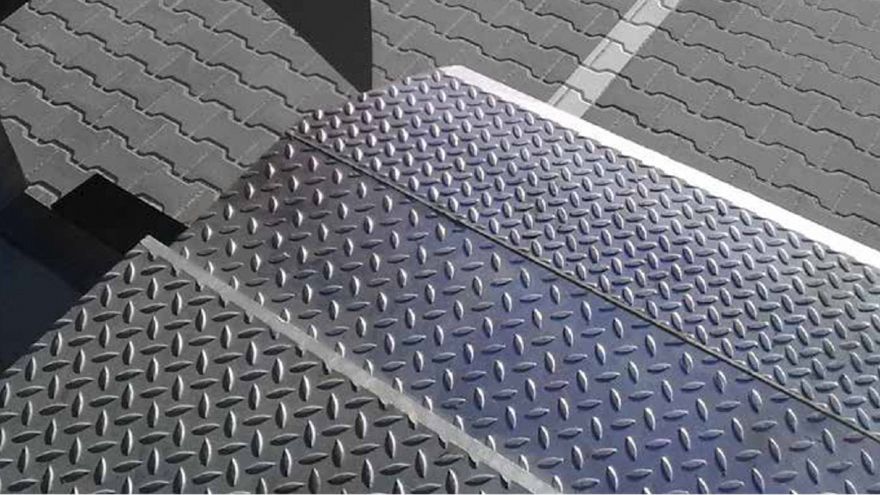

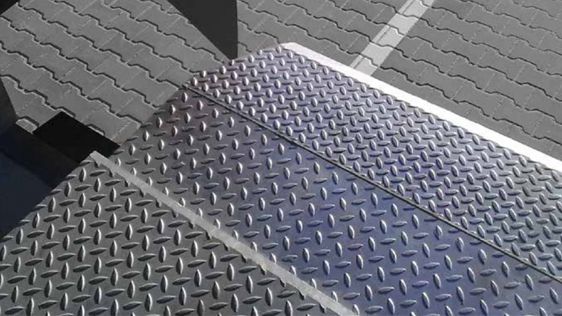

The ASSA ABLOY DL6221T Teledock 100 is a heavy-duty dock leveller with a telescopic lip and a 100 kN load capacity. Made from high-grade S355 steel, it’s designed for tough jobs and smooth operations—delivering strength, durability, and minimal maintenance.
Reach further, load smarter
The hydraulic telescopic lip extends precisely to the truck bed, creating a larger contact area. That means safer transfers, better load distribution, and smarter use of space—especially with uneven or varied vehicle types.
Reliable by design
This leveller is built to last. With a simplified design and fewer moving parts, it keeps maintenance quick and performance consistent—so your loading bay stays up and running.
Smarter operations, right out of the box
The DL6221T is IoT-enabled. Connected to ASSA ABLOY Insight, it helps you monitor wear and tear, track performance, and make data-driven decisions that improve uptime and sustainability. Combine it with our smart dock doors for total control.
Easy control, all in one place
Forget complex setups. The ASSA ABLOY 950 series control system lets you manage the leveller, shelter, and door from one simple, intuitive unit. Just a few buttons, built for any operator.
ASSA ABLOY DL6221T Teledock 100
- Product ID: DL6221T
- Normal length: 2000, 2500, 3000, 3500, 4000, 4500 mm (other sizes on request)
- Normal width: 2000, 2200 mm
- Load capacity: 100 kN (10 tonnes)
- Vertical working range: Rise above dock up to 415 mm, Fall below dock down to 475 mm
- Platform tear-plate thickness : 8 mm S355 ( 8/10 mm)
- Lip material and lenght: Steel, 500/1000 mm
- Control unit protection class: IP 54
- Nominal voltage: 400V 3-phase, 230V 3-phase
- Nominal motor power: 1,5 kW
- Temperature range hydraulic oil: -20°C - +60°C
- European standard: EN1398 dock levellers
