    Malkowski Martech Marc-OK fire curtain

    • Malkowski Martech

    By dividing the building into smaller sections, fire curtains prevent the spread of fire and smoke. This is crucial for ensuring the safe evacuation of people and for protecting valuable assets.

    The discreet design of the curtains means they take up minimal space when rolled up in the cassette. When a fire alarm is triggered, they close automatically and are activated without the need for manual operation.

    The fire curtains are perfectly suited for a variety of applications, including:

    • Distribution centers and warehouses
    • Manufacturing facilities
    • Parking structures
    • Shopping centers and public buildings

    Our solutions are developed in accordance with the strictest fire safety regulations and provide security in both new and existing buildings.

    Downloads

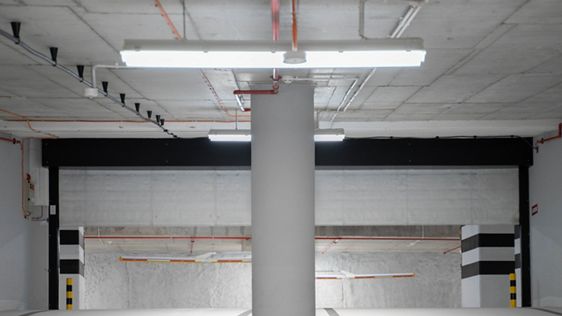

    Fire curtain installed in underground garage

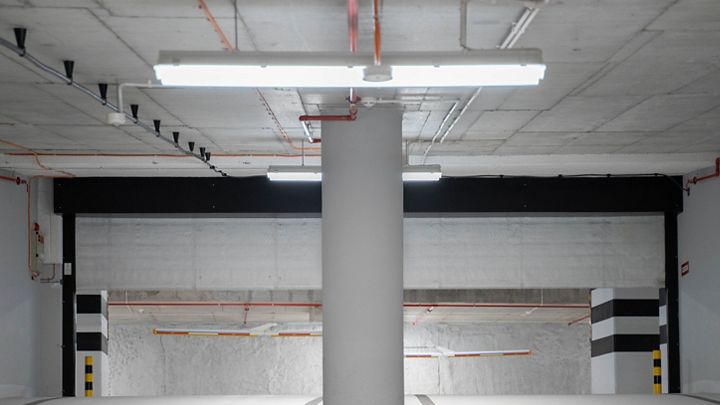

    Fire curtain installed in underground garage

    FIRE RESISTANCE CLASS:

    • EI 60, EI 120



    CHARACTERISTICS:

    • Thermally insulated fabric fire protection closure without sprinkler
    • Construction composed of curtain sheet, guide rails, winding shaft, shaft brackets, and VIC drive unit
    • Internal and external drives, gravity or power operated
    • Curtain sheet made of multi-ply textile layers (3 layers for EI60, 5 layers for EI120)
    • Curtain sheet reinforced with steel-wire glass fiber for durability and fire resistance
    • Curtain sheet top edge attached to the winding shaft
    • Curtain sheet bottom edge reinforced with a ballast for proper tension, smooth winding, and additional stability
    • Winding shaft and brackets installed in a galvanized steel box (0.7 - 1.0 mm thick)
    • Guide Rails:

            - Vertical edges of the curtain equipped with runners, which move inside profiled guide rails

            - Guide rail dimensions: 80 x 120 mm or 80 x 140 mm

            - Guide rail cover made of 0.7 mm thick galvanized steel sheet

    • Compatible with fire alarm systems, curtain position monitoring, and access control
    • Shell thickness:

            EI60 : 9 mm (6 kg/m²)

            EI120 : 18 mm (9 kg/m²)

    • Minimum shaft box dimensions:

            EI60: 250 x 275 mm

            EI120: 325 x 350 mm

    • Custom-built to meet project-specific sizes, maximum size limits (depending on EI class) - up to 18 x 10m
    • Full compliance with CE marking, CE marked acc to EN 16034: 2014 combined with EN 13241: 2003+A2: 2016
    • Windload resistance - up to class 2 (450Pa) acc to EN 13241
    • Use category - C2 acc to EN 16034:2014-11
    • Anti-corrosion class - up to C5 acc to EN ISO 12944-2
    • ATEX zones - 1/21, 2/ 22,



    FINISHING OPTIONS FOR GUIDE RAILS:

    • Standard colors: RAL 7035, 9002, 7016, 9010
    • Custom RAL colors and stainless steel options available



    ADDITIONAL OPTIONS:

    • Smoke-tight version  class Sa, S200 acc. to  EN 13501-2 available upon request
    • Compatible with fire alarm systems, door position monitoring, and access control solutions
    • For smaller-sized curtains, an alternative closing system is available, replacing the electric drive and sensors with:thermal fusible trigger and safety retarder with a torsion spring to ensure controlled curtain descent, preventing injury
