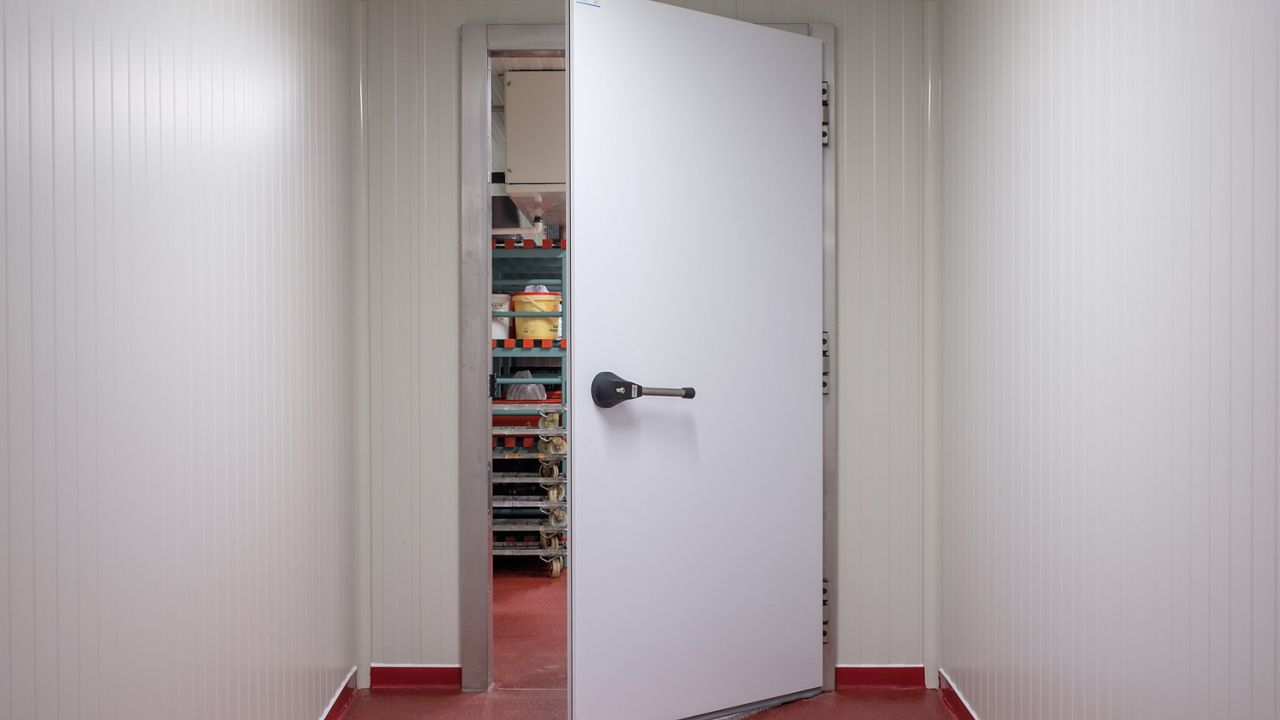

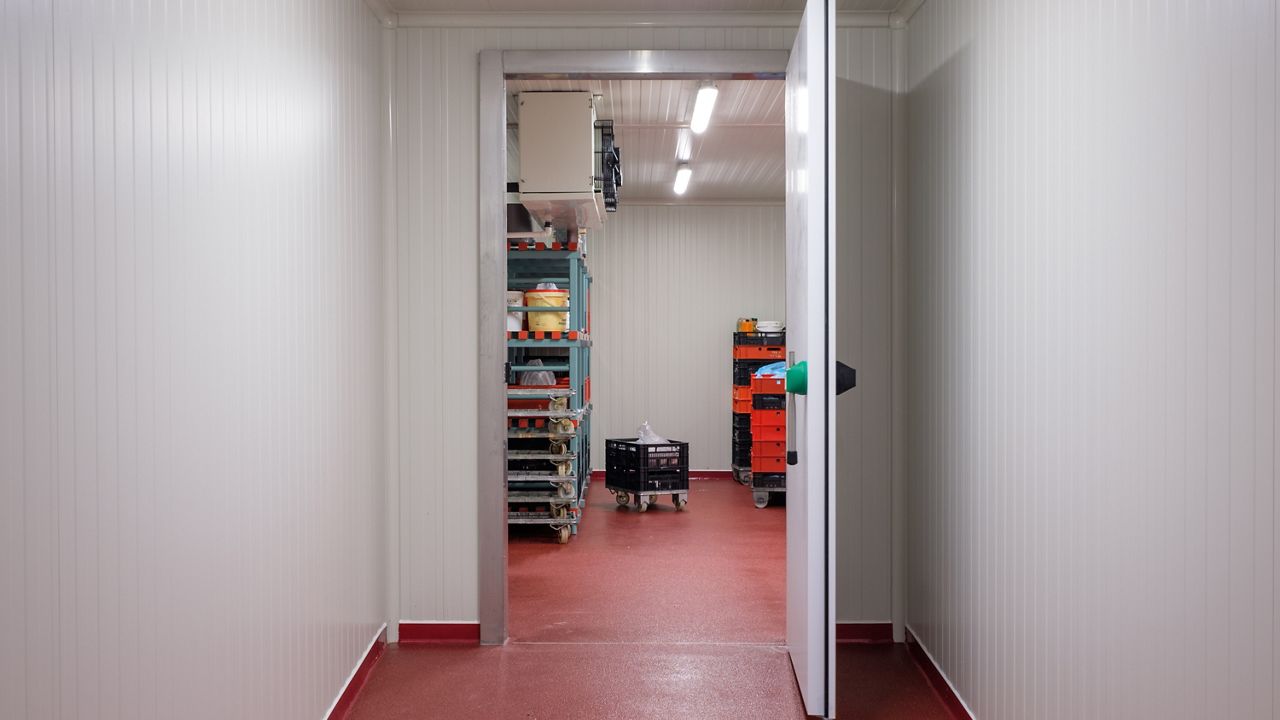

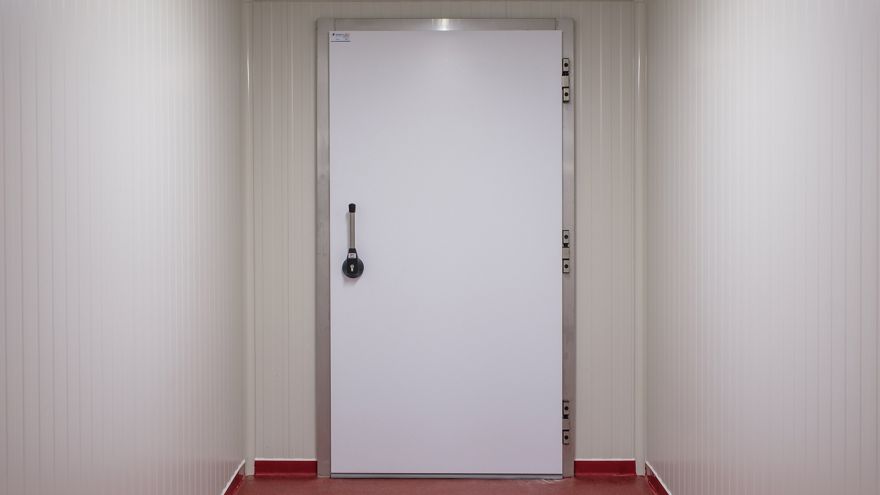

ASSA ABLOY CI KDM Swing Chiller

The ASSA ABLOY CI KDM Swing Chiller is a hinged door that hermetically seals cooled or controlled spaces. A built-in opener and optional viewing window support safe use for staff. Its smooth, hygienic finish and food-safe coating make it suitable for clean, regulated environments. Ideal for rooms kept at 0°C and above.

Downloads

1 of 4

Airtight swing chiller door for controlled cold rooms

The ASSA ABLOY CI KDM Swing Chiller is a hinged door developed for use in temperature-controlled environments from 0°C and up. Its airtight design helps maintain consistent internal conditions, while the durable construction ensures long-lasting performance with minimal maintenance.

Thanks to its smooth, uninterrupted surface, the door is easy to clean. Combined with a food-safe coating, it complies with hygiene standards typically required in the food industry and similar clean environments.

The integrated closing system ensures a reliable seal around the door opening. This limits air and moisture transfer between rooms and contributes to energy efficiency by reducing thermal leakage.

The ASSA ABLOY CI KDM Swing Chiller is supplied as a complete package, including installation frame and necessary fittings. The 80 mm thick door leaf contains an insulated core, finished on both sides with galvanized steel and a polyester top layer. A sealing rubber is applied around the full edge for consistent airtight closure.

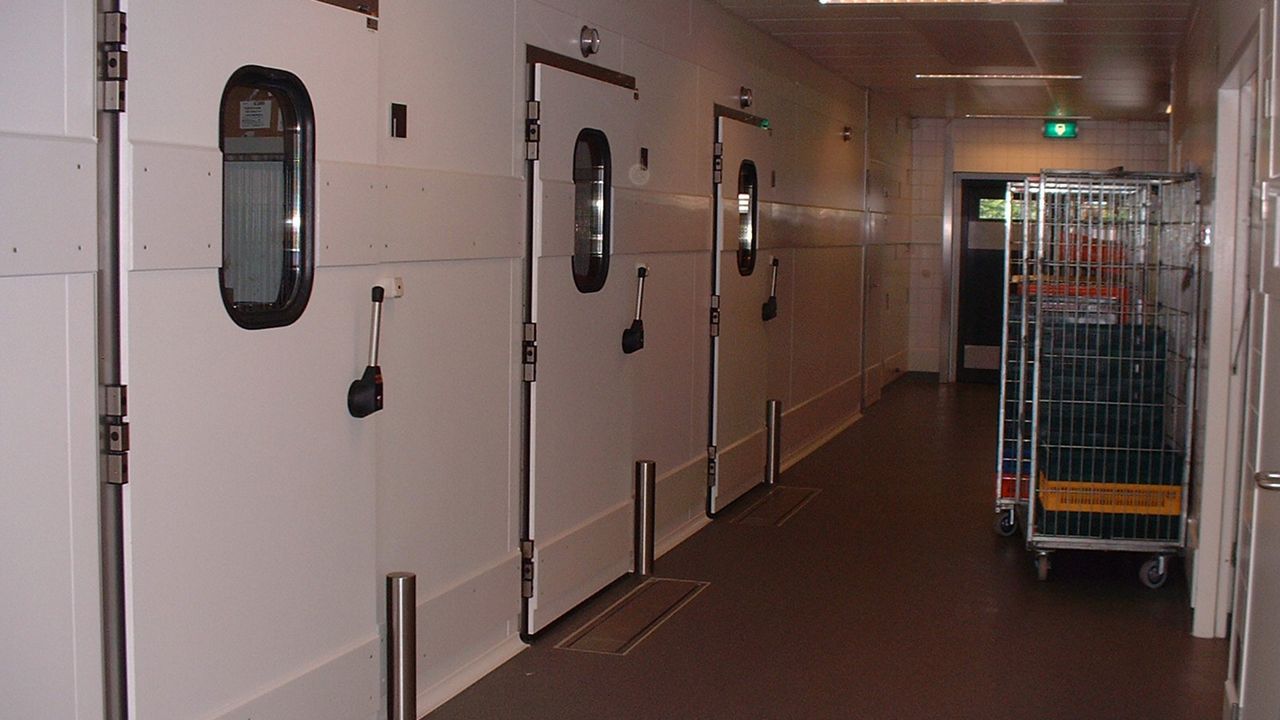

An optional viewing window of 360 x 560 mm is available for visual access without opening the door. For safety, the door includes an interior release system. Even if the door is locked from the outside using a key, it can always be opened from the inside, ensuring safe operation under all conditions.
