ASSA ABLOY SW200 OHC Swing Door Operator

The ultra discreet ASSA ABLOY SW200 OHC Swing Door Operator for when an attractive finish is important.

The ASSA ABLOY SW200 OHC is a concealed, overhead electromechanical swing door operator with a concealed arm system. It provides an aesthetically pleasing solution that is attractive yet incomparably strong.

SW200 OHC is the ideal choice for applications with high demands on gentle and smooth operation in combination with strength and high traffic flow. It compensates for stack pressure and wind load and yet it remains easy to open manually. Additionally it offers an easy-to-use manual push force in power-off.

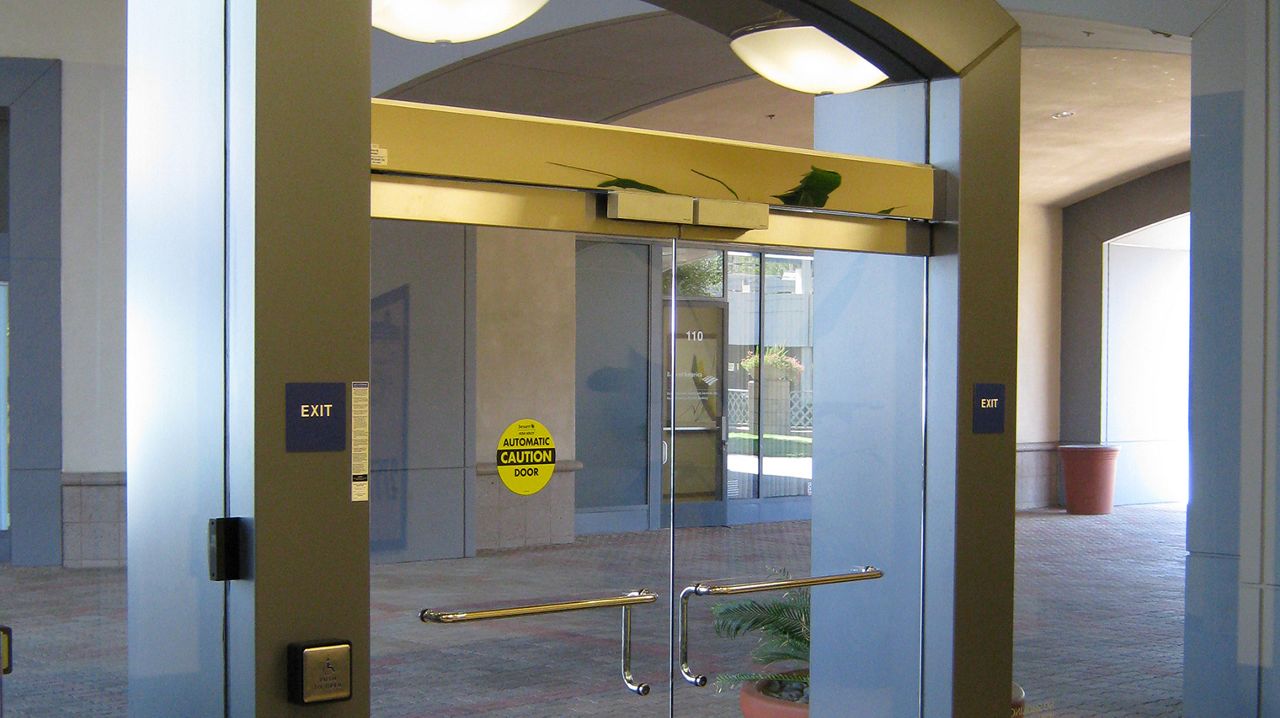

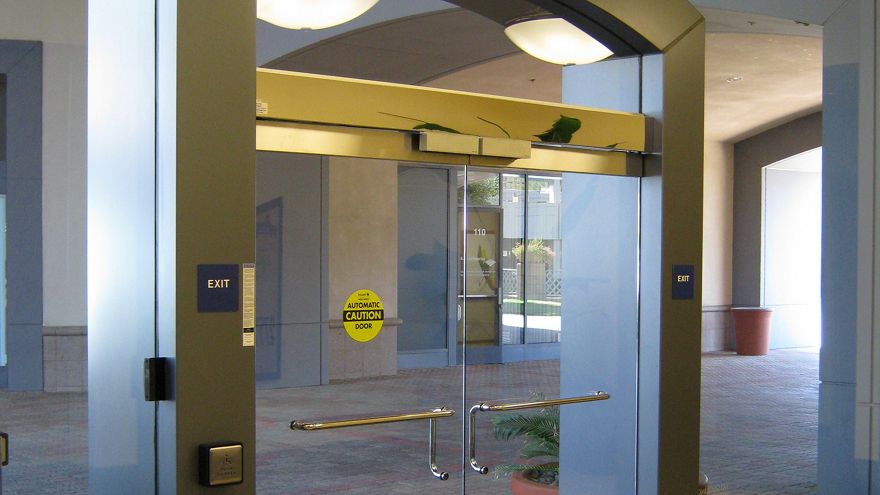

Image: Frontview of the ASSA ABLOY SW200 overhead concealed automatic swing door operator. — Frontview of the ASSA ABLOY SW200 overhead concealed automatic swing door operator.

An optional embedded battery back-up and monitoring ensures operation even when the power is interrupted, while an intelligent locking function adds security.

ASSA ABLOY SW200 OHC is suitable for applications such as: low-energy and heavy-duty, interior and exterior entrances, single- and double-leaf doors, and escape routes with panic break-out and manual reset.

Safety compliance

The ASSA ABLOY SW200 OHC complies with EN 16005, UL 325 and ANSI/BHMA A156.10, A156.19

ASSA ABLOY SW200 OHC swing door operator

Product ID: SW200 OHC
Variations: Single door, Double door
Power supply: 100-240 VAC +10/-15%, 50/60 Hz, mains fuse max. 10A (building installation)
Power consumption max.: 300 W
Auxiliary voltagen24 V DC, max.: 700 mA
Monitored battery backup unit: 24 V DC
Electromechanical locking connection: 12 V DC, max. 1200 mA or 24 V DC, max. 600 mA
Ambient temperature: -20 °C to +45 °C
Relative humidity (non condensing): 95%
Recommended max. door weight and door width inertia J: 80 kgm²
Class of protection IP20
