ASSA ABLOY SW100 Door Operator

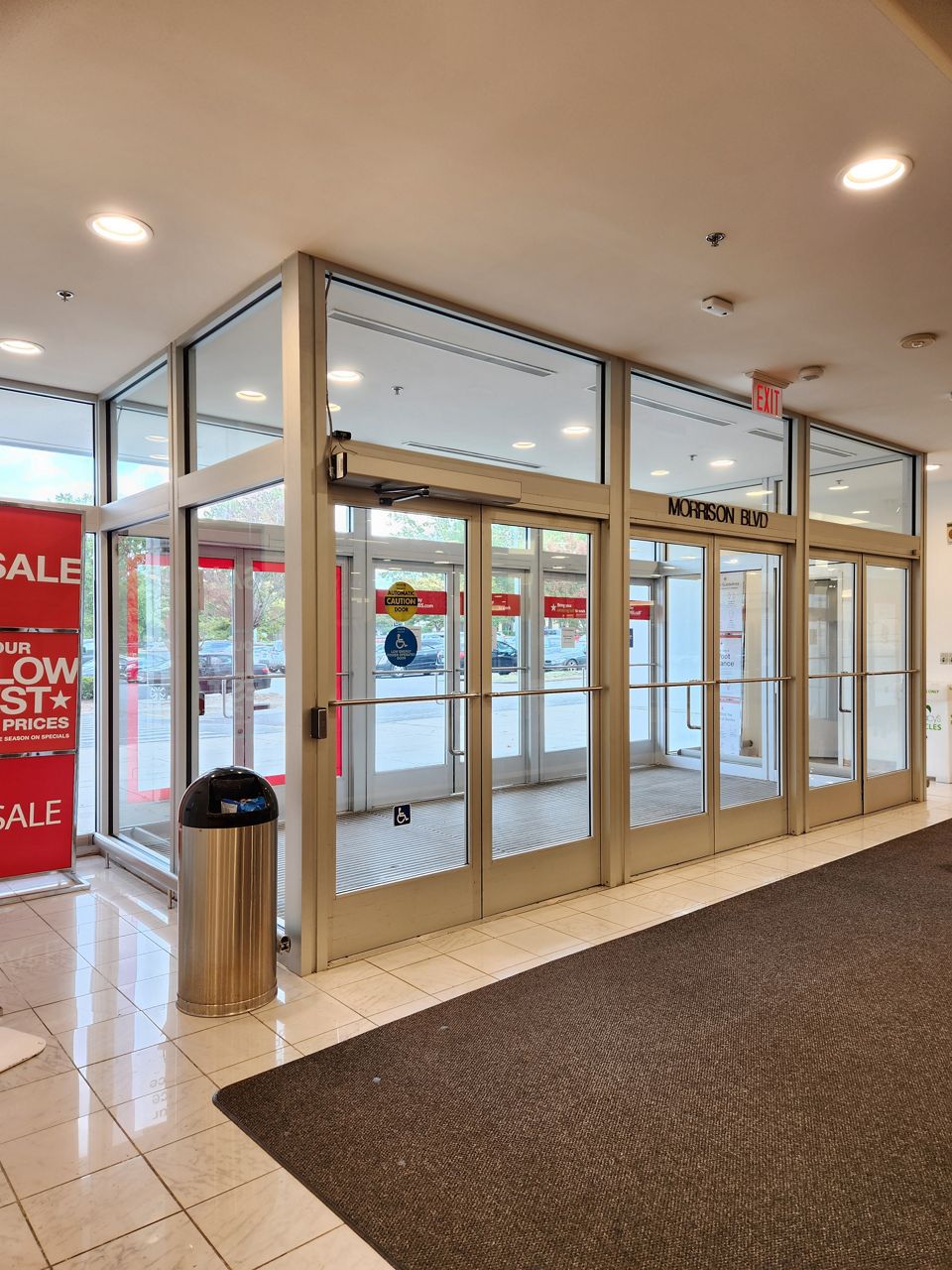

ASSA ABLOY SW100 universal swing door operator.

The ASSA ABLOY SW100 swing door operator's low-energy performance means it can be a very cost-effective option for automating a swing door entrance. ASSA ABLOY SW100 offers low noise during operation. It is the ideal choice for entrances in healthcare, residential, office and public service environments where both low noise and ease of access are important.

Find Your Local Office

Downloads

ASSA ABLOY SW100 swing door operator at the entrance of a former church, today a modern book shop.

An optional embedded battery back-up and monitoring ensures operation even when the power is interrupted, while an intelligent locking function adds security.

ASSA ABLOY SW100 is suitable for applications such as: low energy, interior and exterior entrances, single and double leaf doors, fire doors (depending on national regulations), escape routes and push and pull applications.

Safety compliance

The ASSA ABLOY SW100 complies with: EN 1634-1, EN 16005, UL 325 and ANSI/BHMA A156.19.

ASSA ABLOY SW100
Product ID: SW100
Power supply: 100-240 V AC, +10/-15%, 50/60Hz, mains fuse max. 10A (building installation)
Power consumption: max. 75 W
Auxiliary voltage: 24 V DC, max. 400 mA
Monitored battery backup unit: 24 V DC
Electromechanical locking connection: 12 V DC, max. 500 mA or 24 V DC, max. 250 mA
Ambient temperature: -20°C to +45°C
Relative humidity (non condensing) 95%
Recommended max. door weight and door width inertia J: PUSH = 45 kgm², PULL = 16 kgm²
Class of protection IP20
