ASSA ABLOY SW300 Swing Door Operator

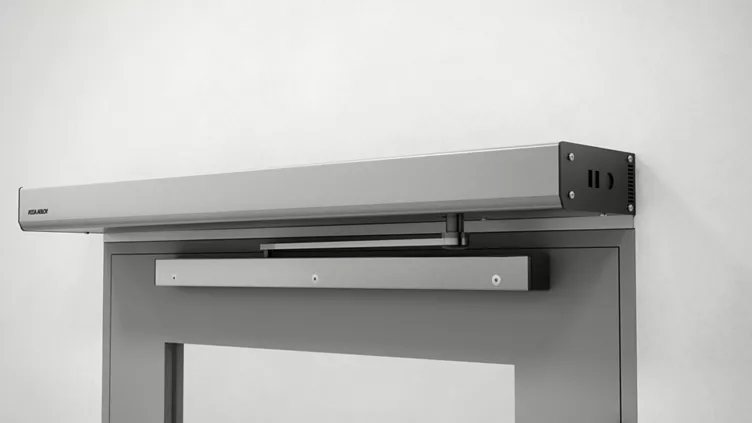

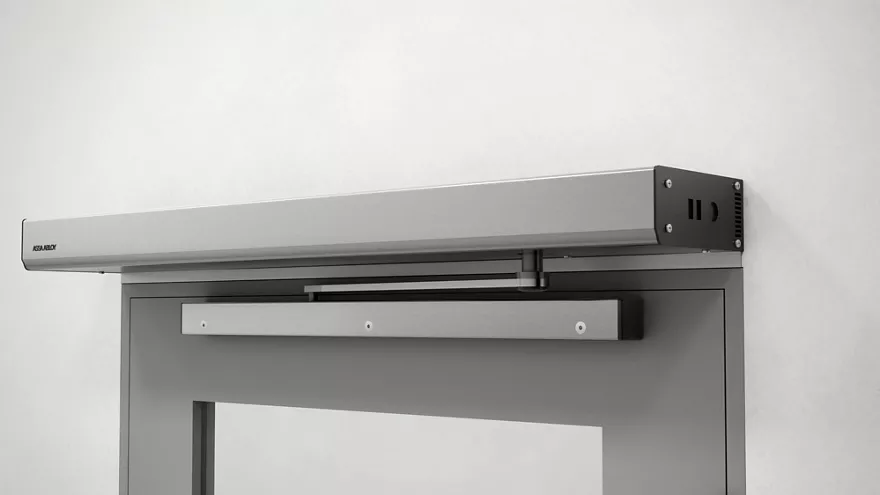

ASSA ABLOY SW300 Slim Swing Door Operator

The ASSA ABLOY SW300 is an intelligent, heavy-duty electromechanical swing door operator with an attractive slim 2.75”H (70 mm) header design. It provides quiet and is an ideal choice for applications with high demands and high traffic flow, providing both gentle and smooth operation.

The SW300 compensates for stack pressure and wind load, yet remains easy to open manually. It is the ideal choice for heavy traffic flow entrances in healthcare, residential, office and public service environments where both low noise and ease of access are important.

ASSA ABLOY SW300 provides the option of a unique double-acting arm solution, giving panic break-out in either direction. An optional embedded battery back-up and monitoring ensures operation even when the power is interrupted, while an intelligent locking function adds security.

ASSA ABLOY SW300 is suitable for applications such as: low-energy and full-pedestrian usage, heavy-duty, interior and exterior entrances, single- and double-leaf doors, push and pull applications, fire doors, and escape routes with optional panic break-out in either direction.

Surface mounted door operators - safety compliance
ASSA ABLOY SW300 surface mounted swing door operator complies with ANSI A156.10 and ANSI A156.19
