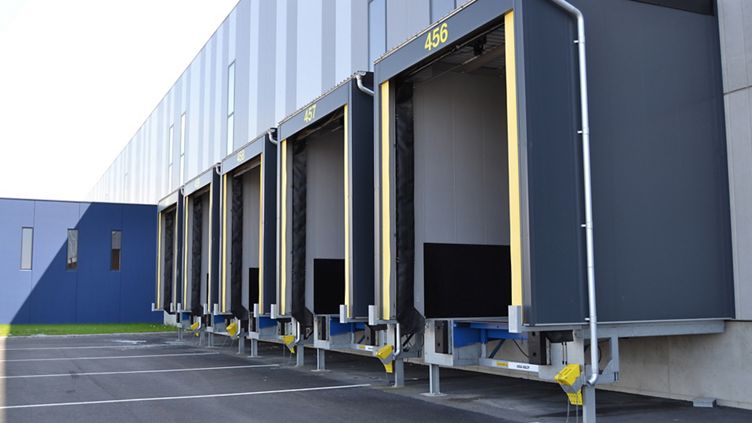

By relocating the loading system externally, businesses benefit from maximised internal floor space – a key advantage in both new builds and upgrades to existing sites. This space-saving solution requires no significant structural changes, making it ideal for retrofits. The thermal separation between the building and the loadhouse also ensures suitability for temperature-controlled environments, a critical factor for food, pharma, and cold chain sectors across Ireland.

Purpose-built to meet the expectations of architects, contractors, and operators, the ASSA ABLOY LH6180IL Loadhouse features a visually appealing, modern design. Its insulated wall panels are constructed without an internal steel frame, resulting in clean, smooth surfaces that are washable and compliant with hygiene standards in sensitive industries. The enclosed design includes a flush horizontal ceiling panel and seamless interior, reducing risk of damage or injury while keeping birds and pests out.


Engineered to handle Irish weather conditions, including snow loads of up to 3.0 kN/m² as certified by a third party, this reliable and durable solution is also designed to support smooth planning and approval processes. The ASSA ABLOY LH6180IL Loadhouse delivers on performance, safety, and aesthetics – a smart, future-ready investment for Irish logistics and warehousing operations.

  • ASSA ABLOY LH6081L light version stand-alone loadhouse

    • Product Id: LH6081L
    • Normal length: 2000, 2450, 3000 mm (other sizes on request)
    • Normal width: 3300, 3500, 3600 mm (other sizes on request)
    • Thickness of insulation: 40 mm
    • Thickness of material: 0,63 mm
    • Surface treatment: hot dip galvanised
    • Basic wind load 0,65 kN/m2
    • Basic snow load 0,89 kN/m2
    • Accumulated snow load 1,78 kN/m2

    BIM objects

    Download these products as BIM objects here:

    Environmental Product Declaration

    Available for this product download here:



3,0 kN Snow load

Stand alone housing for placing the dock leveler outside the building

Thermal separation

Washable smooth walls inside the housing
