All-glass
Optimize light inlet and product visibility.

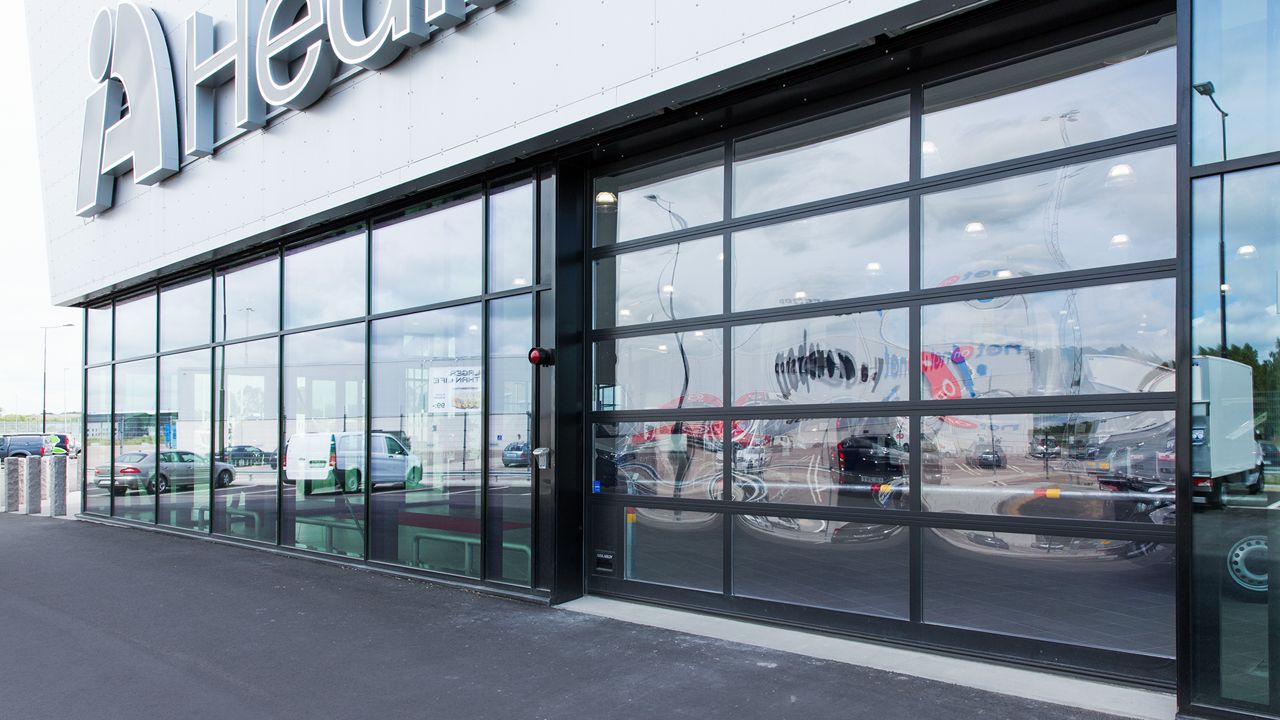

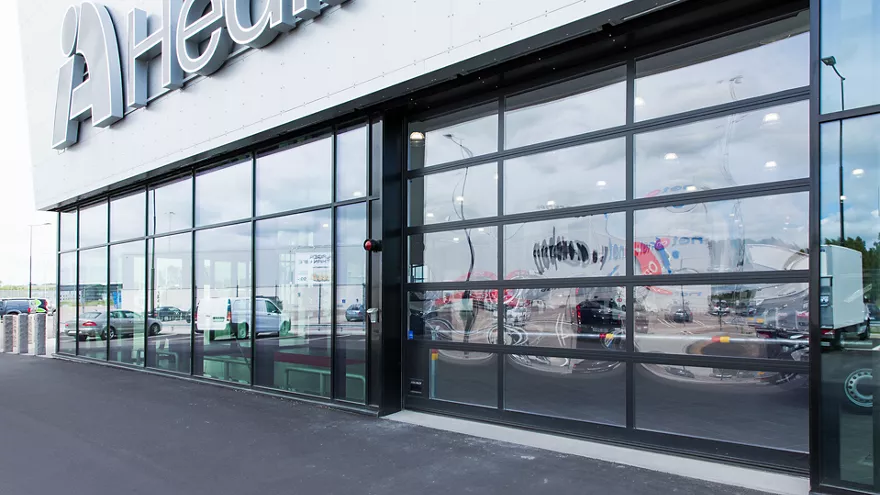

Crawford OH1042FG Fully Glazed Overhead Industrial Door
From car dealerships to fire stations, there are some premises where total visibility is key. These hard-wearing yet elegant overhead doors create a light-filled space and better working environment. With plenty of options to suit any building, they also save space around the entrance by gliding up neatly under the roof.
Single, double, or reinforced triple glazing? Anodized finish, or a custom paint job? We know that with these doors, aesthetics are as important as rugged reliability. You can choose glazed panels up to 3.3m wide. If they’re up to 2.6m, they don’t even need extra support built in, thanks to the robust aluminum frame.
Semi-transparent
Available in frosted or tinted glass to increase natural light while limiting visibility from the outside.
Configurable
Available with different sizes, panels, window configurations and locks.
Transparent
Configurable with different types of glass increasing the visibility through the door.
- Standard size up to (W x H) [1]: 5500 x 4250 mm
- Frame thickness: 44 mm
- Windows: W < 3300 mm: 1 pane, W > 3300 mm: 2 panes
- Pass-door: not available
- Access and Automation: optional
- Track options: SL, HL, LL, VL, HHL
- Wind load, EN 12424 [2]: class 3: W < 3300, class 2: W > 3300
- Thermal transmittance, EN 12428: 6 W/m2K
- Water penetration, EN 12425: class 3
- Air permeability, EN 12426: class 2
[1] Other sizes on request
