Energy-efficient
With significantly improved insulation to improve energy savings.

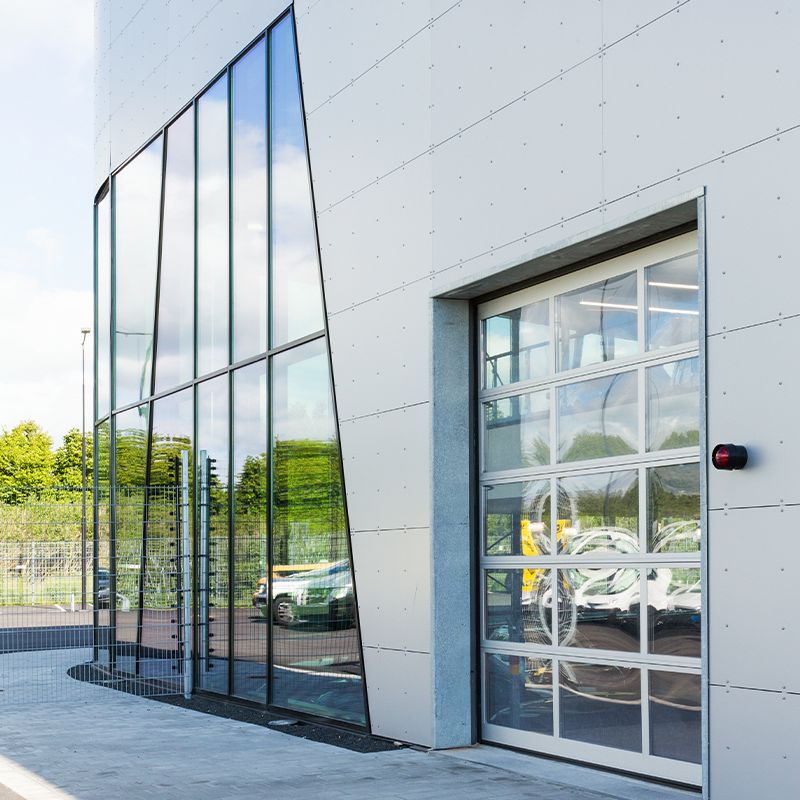

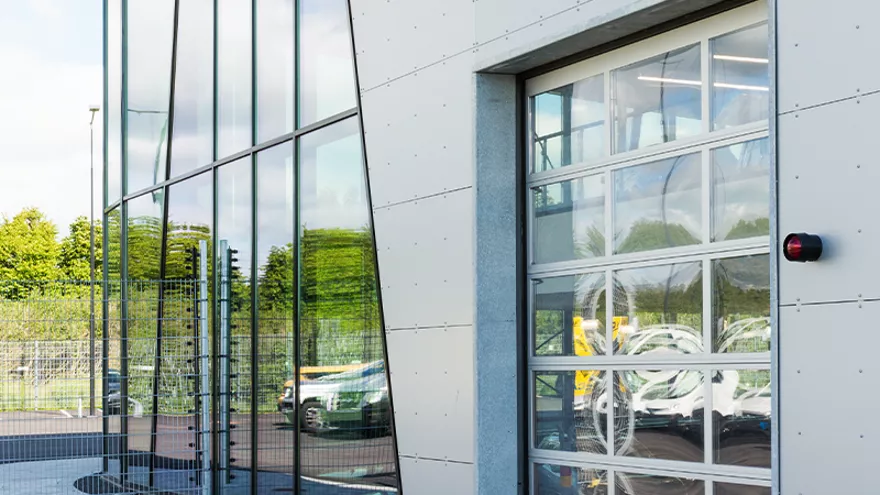

Crawford OH1042FI Glazed Insulated Doors
Glazed doors are perfect for high-visibility spaces, from showrooms to workshops. These are completely watertight with a broken cold bridge for exceptional insulation: hello energy saving, goodbye ice and condensation.
Insulated
Combination of insulated panels and frame sections with broken cold bridge.
Semi-transparent
Available in frosted or tinted glass to increase natural light while limiting visibility from the outside.
Transparent
Configurable with different types of glass increasing the visibility through the door.
Flexible and functional
- Completely customizable: The sturdy yet light 42mm aluminum frame holds a grid pattern that fits the size of the entryway exactly. What arrangement of windows and infill panels you use is up to you. We secure every window with butyl glue—so it’s a perfectly tight fit, but also easy to replace in years to come.
- Make the most of your space: The overhead sectional door opens vertically, running on tracks along the ceiling or into the space over the entrance. Which means a greater useable area around the door for customers, staff, equipment, or displays.
- Standard size up to (WxH) [1]: 7250 x 6050 mm
- Frame thickness: 42 mm
- Bottom section thickness: 42 mm
- Windows: Various options available
- Pass-door: Not avalible
- Access and Automation: Optional
- Track options: SL, HL, LL, VL, HHL, SLL
- Wind load, EN 12424 [2]: Class 3 W < 4250, Class 2 W > 4250
- Thermal transmittance, EN 12428 [3]: 2,6 W/(m2K) triple acrylic glazing 3,1 W/(m2K) double acrylic glazing 2,2 W/(m2K) Double hard energy glass
- Water penetration, EN 12425: Class 3
- Air permeability, EN 12426: Class 3
[1] Other sizes on request
[2] Higher wind load classification on request
[3] Door size 5000 x 5000 mm
Crawford OH1042FI OVERHEAD SECTIONAL DOOR
Environmental Product Declaration
Available for downloads
