Designed to fit a wide variety of vehicle sizes, the shelter ensures consistent protection against wind, rain, and external temperatures during loading and unloading operations.

When not in use, the shelter retracts fully behind the side frames, giving drivers full access to the width of the loading bay when reversing. Bright yellow guiding lines help ensure safe and accurate vehicle positioning, while durable bumpers at ramp level offer protection against accidental impacts.

Installed within a robust frame and insulated panel construction, the shelter further enhances energy efficiency and thermal insulation. Its modular design also allows for quick and straightforward component replacement if needed.


The inflatable airbags—positioned at the top and sides—are made from an impact-resistant, woven-core material that is non-flammable, colourfast, and exceptionally durable in all weather conditions. This ensures reliable operation even in harsh docking environments.

The ASSA ABLOY DS6070B inflatable dock shelter is available in a range of sizes, all engineered to deliver an airtight seal and help maintain the integrity of the cold chain—crucial for temperature-sensitive goods.

  • ASSA ABLOY DS6070B inflatable dock shelter bags

    • Product Id : DS6070B
    • Nominal height: 3755, 4055, 4355, 4555 mm
    • Nominal free height: 3300, 3600, 3900, 4100 mm
    • Nominal width: 3600 mm
    • Nominal depth: 770, 1020 mm
    • Top bag extension: 1000, 1300 mm
    • Side bag extension: 650 mm
    • Walls insulated panel: 42 mm
    • Roof white: RAL 9016
    • Fabric quality: PVC coated polyester
      Top bag: 500 g/m2, thickness 0,5 mm
      Side bag rear: 600 g/m2, thickness 0,5 mm
      Side bag front: 2500 g/m2, thickness 2 mm
    • Fan: 230 V, 1-phase, 50 Hz, 250 Wnoise level: 65 dBA in workingposition
    • Operating: Switch control included
    • Other controls available as option
    • Temperature range: -30°C to +60°C
Download banner with a person typing on a laptop.Download banner with a person typing on a laptop.
ASSA ABLOY DS6070B Inflatable Dock Shelter Bags

BIM object

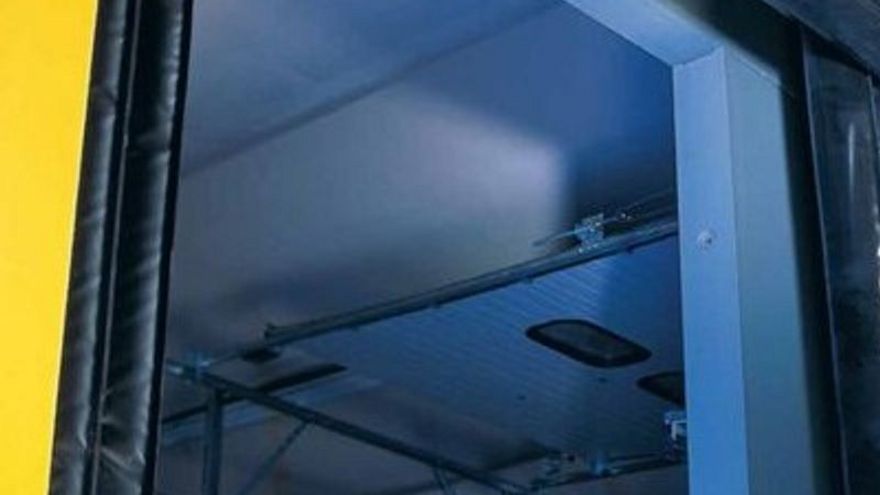

Inflate to seal around the truck body

Top bag with max. 1300 mm stroke

Weather protection

Insulation
