ASSA ABLOY

ASSA ABLOY RP150 High-speed door for oxygen reduction systems

Controlled solution

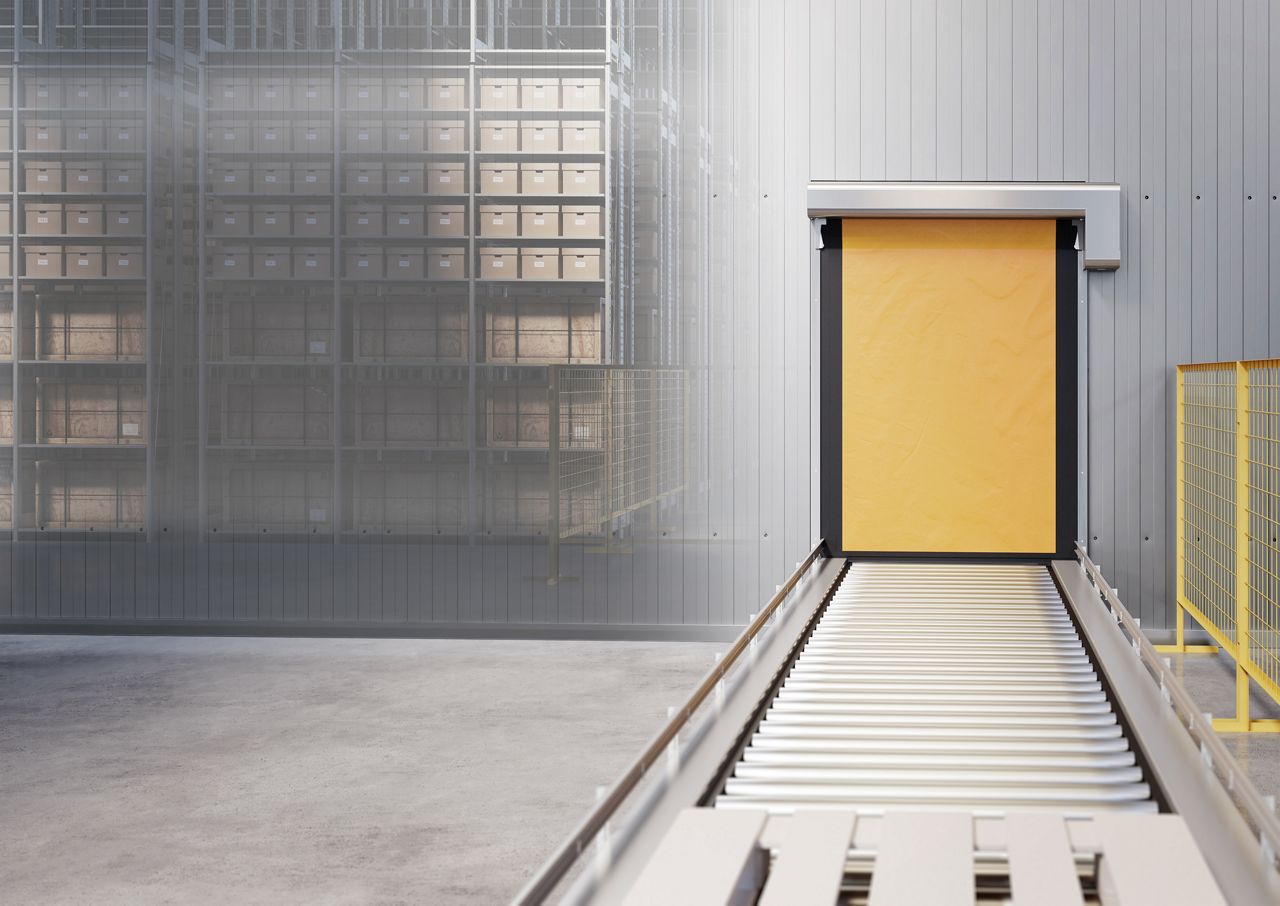

Oxygen reductions systems (ORS) are being increasingly used as active fire protection, as opposed to the more traditional, passive solutions such as sprinkler systems. To maintain integrity, ORS require an effective barrier to support active fire prevention. For such systems in automated warehouses and material handling facilities, the ASSA ABLOY RP150 is an ideal solution.

This compact, airtight high-speed door is specifically designed to meet ORS requirements. With fast speed and short cycle times to increase product flow and process productivity, it delivers on the performance, efficiency and reliability you expect from ASSA ABLOY

Downloads

Meeting the challenges of oxygen reduction systems (ORS)
ORS operate by lowering the oxygen content in the air to prevent a fire from igniting and spreading within an enclosed area. This means that unregulated air flow, humidity, pressure, and room temperature can all increase fire risk. In turn, this jeopardises safety of machinery, products and equipment.

Because this high-speed door is airtight, it forms an essential component that meets and exceeds the stringent requirements of ORS, completely sealing off oxygen-reduced areas, reducing air exchange to a minimum.
    • Door width min/max: 500 / 2200 mm
    • Door height min/max:  500 / 2800 mm
    • Opening/closing speed: up to 2.3/0.5 m/s
    • Wind load resistance, EN12424 – NPD
    • Air permeability, EN-12426 - Class 3 overpressure, Class 2 underpressure
    • Vision panel or transparent vision strip (optional)
    • Stainless steel frame, drum and bearings (optional)
    • Advanced foam curtain (optional)
    • Stainless steel 304/hex screws for easy clean
