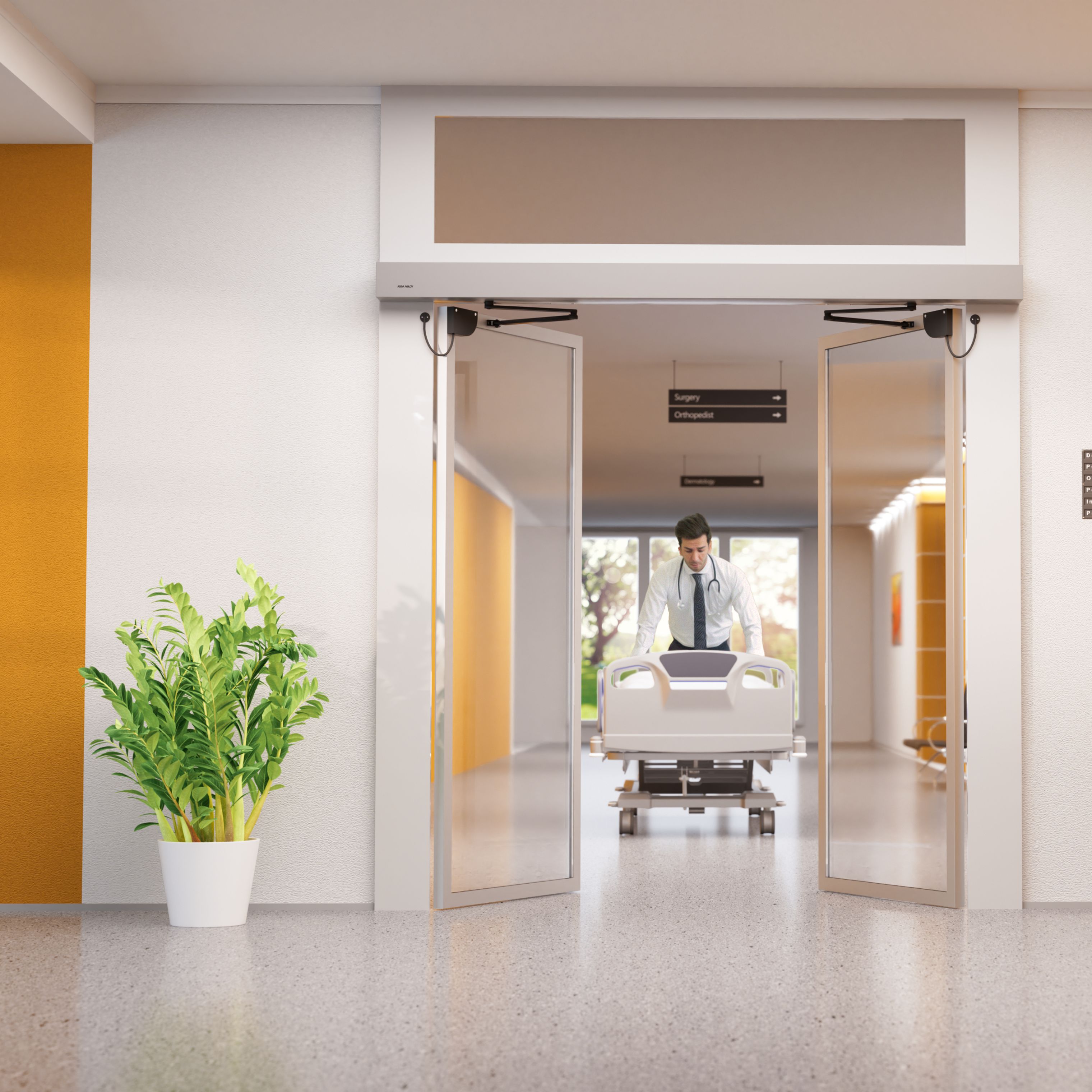

ASSA ABLOY SW110 Standard Swing Door Operator
A smart and silent swing door operator.

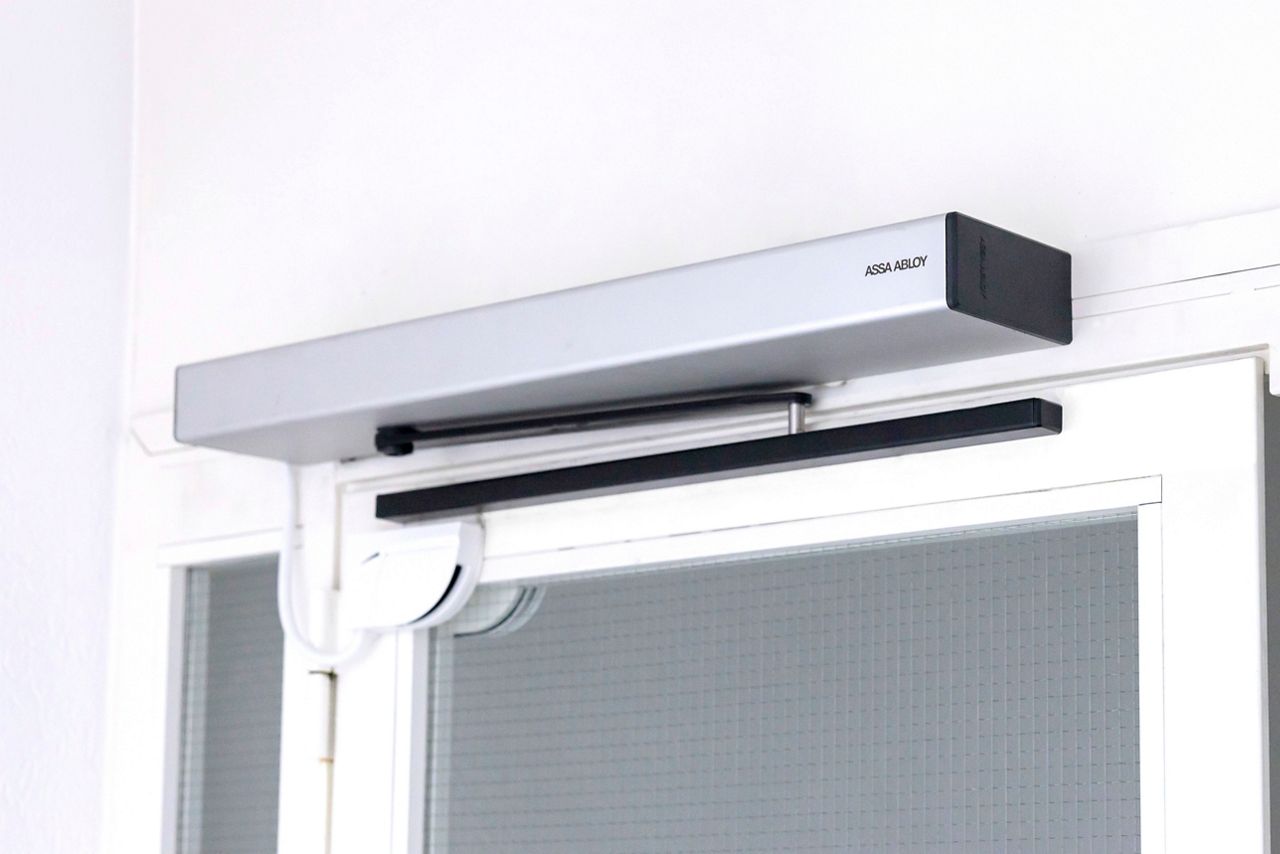

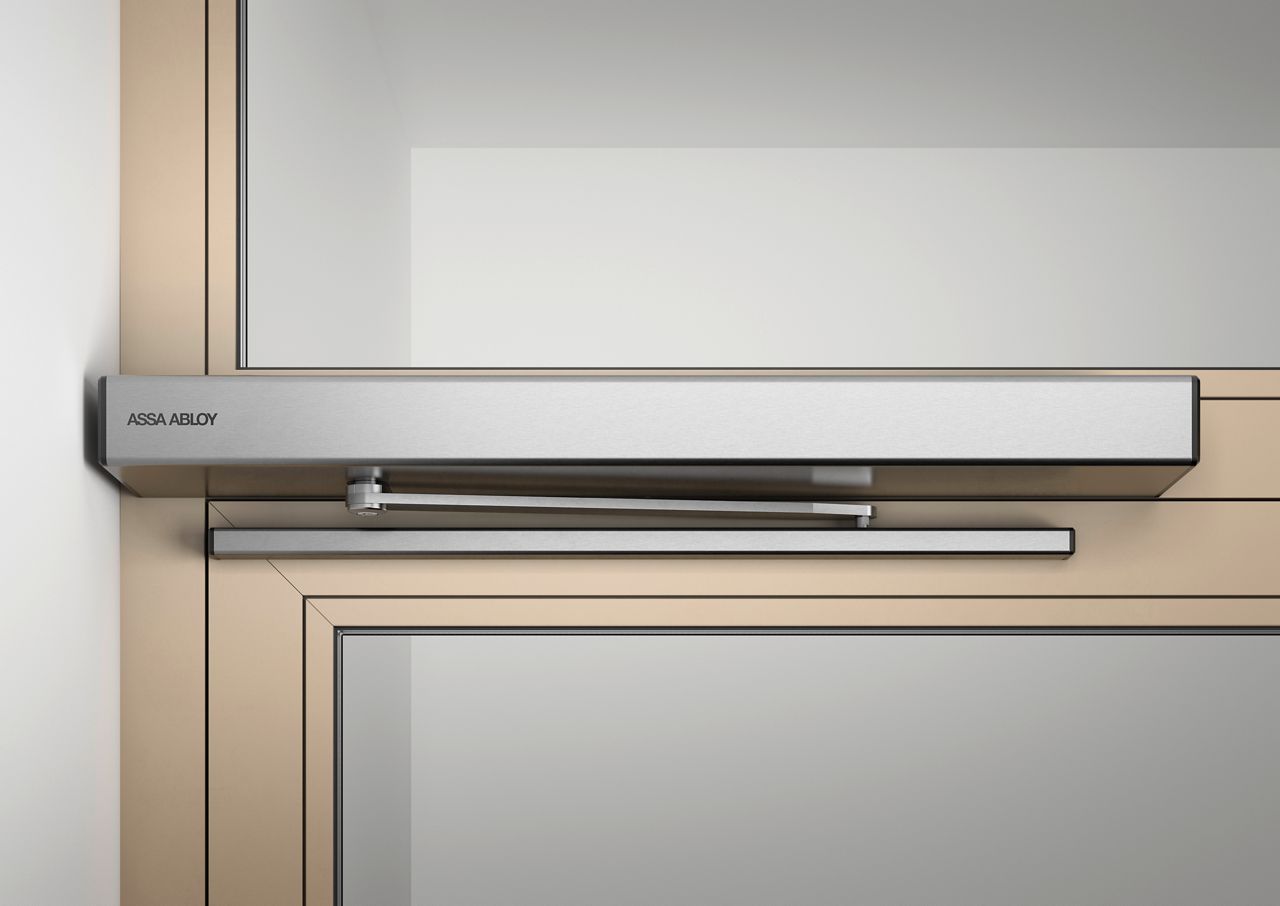

ASSA ABLOY SW300-S Swing Door Operator
Revolutionize your swing doors with the energy-saving and intelligent SW300-S.
The SW300-S is a stylish, versatile, eco-friendly swing door solution that saves money and time. An all-in-one swing door solution, the operator can be adapted to different operation modes, door types, and arm configurations. A new companion service app reduces the time it takes to commission, troubleshoot, and diagnose issues. Plus, the SW300-S can save energy and money on every installed door.
Key features of the SW300-S
Energy efficiency and sustainability
The new “ECO-Mode” in the SW300-S dramatically reduces energy and power consumption during standby mode, promoting a greener future and decreasing CO₂ emissions.
Effortless commissioning
Commissioning the SW300-S is simple with our user-friendly service app, which provides step-by-step installation guidance. With clear instructions and visual aids on their mobile devices, installers can save time and minimize effort, ensuring precise installation and reducing the likelihood of errors.
Streamlined troubleshooting
Our service app also features intelligent troubleshooting, enabling technicians to identify and resolve issues quickly. You can access real-time door data, statistics, errors, and more at your fingertips for timely and practical support.
Efficiency and versatility in one
The ASSA ABLOY SW300-S serves as a comprehensive solution for swing doors. It seamlessly switches between standard and inverse operation, accommodates fire doors and both single and double doors, and offers a variety of arm options, eliminating the need for multiple models.

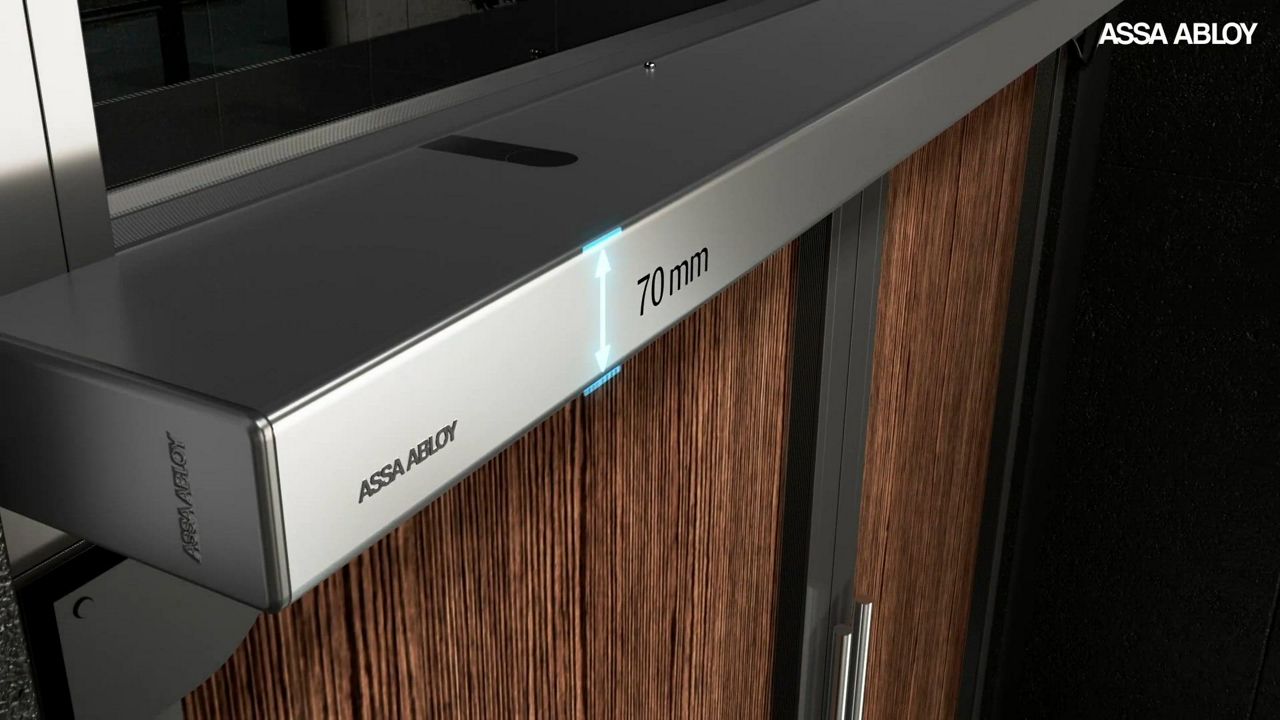

- Operator dimension (HxWxD): 70 mm x 840 mm x 148 mm
- Recommended max. door weight and door width Inertia J: PUSH = 140 kgm² and PULL = 80 kgm²
- Door size: EN4-EN7
- Arm type: PUSH, PULL, Double Acting arm

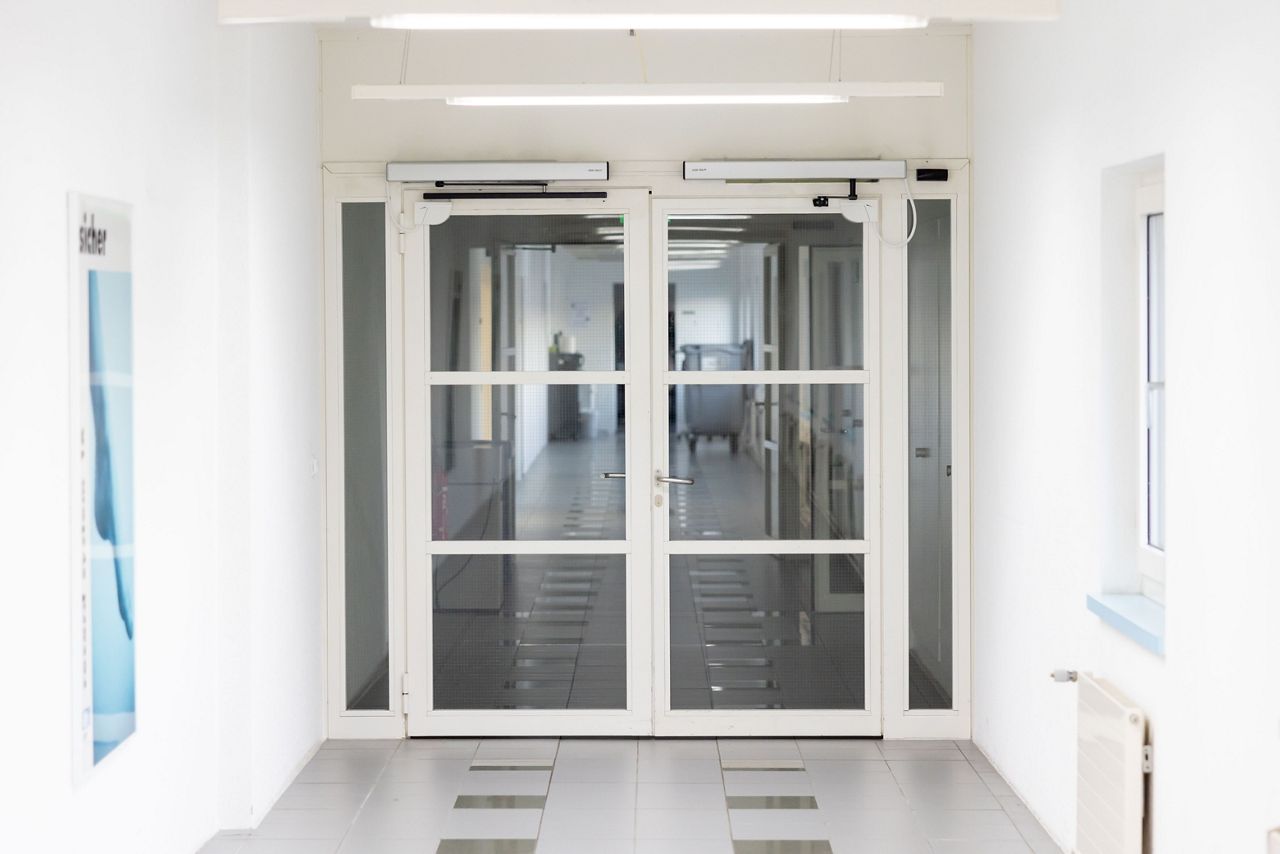

- Application: Single-/double door, Interior-/exterior door, fire door, smoke evacuation, escape route
- Fire certified integrated Power Back-up unit (Optional)
- Drive unit weight: 7.6 kg
Power consumption:
- ECO (power save) mode: <0.3 W
- IDLE mode: 5 W
- ON mode: Max. 40 W
Reveal:
- PUSH arm: 0 – 367 mm
- PULL arm: -20 – 230 mm
