ASSA ABLOY SW200 I Integrated Swing Door System
Providing safe entrances with unique features.

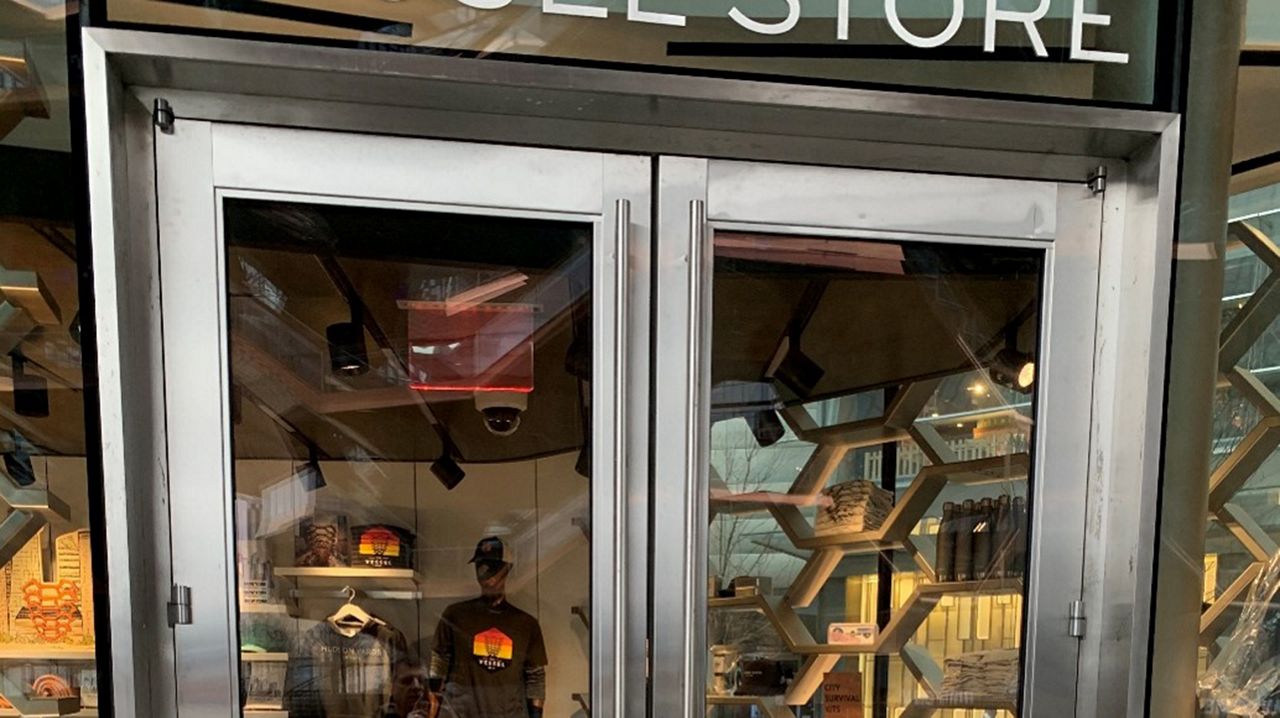

ASSA ABLOY SW200i-IG In Ground Swing Door System
ASSA ABLOY SW200i-IG in ground automatic door operators — superior performance.
Whether you are designing a modern, architectural masterpiece or preserving the historical integrity of a building, in ground automatic door operators provide an ideal way to automate doorways without compromising the integrity of your design.
The ASSA ABLOY SW200i-IG in ground automatic door operators are designed to provide a complete system with an in ground enclosure, operator and arm adapter. The enclosure is water resistant and powder coated to prevent corrosion. The adaptability to multiple arm configurations allows great flexibility for integration with your design.
The ASSA ABLOY SW200i-IG utilizes the proven and powerful ASSA ABLOY SW200i operator, offering superior performance to accommodate heavy doors and high traffic flow.
The ASSA ABLOY SW200i’s exclusive air pressure management system makes it the perfect solution for exterior applications where wind conditions might occur.
Safety compliance
The ASSA ABLOY SW200i-IG in ground automatic door operators comply with ANSI A156.10 and ANSI A156.19.
ASSA ABLOY SW200i-IG
- Product ID: SW200i-IG
- Variations: Single swing, Double swing
- ANSI compliance: field selectable full pedestrian usage (ANSI A156.10) and low energy (ANSI A156.19)
- Door weight: up to 700 lbs (315 kg) per operator
- Manual push force: adjustable from 5 lbf – 15 lbf
- Stack pressure compensation
- Intelligent trajectory control
- Extended Closing Torque (ECT)
Product leaflet
Product specifications
Product drawings (.dwg)
Product drawings (.dxf)
Product variations Single swing Double swing
