ASSA ABLOY DL6111S Swingdock 100 & 150

Choose robust and easy to maintain ASSA ABLOY hydraulic swing-lip dock levellers for maximum functionality

Hydraulic swing-lip dock levellers are designed to enable a safe and efficient loading and unloading while reducing downtime to a minimum. The result is exceptionally high safety for the transfer of goods, preventing any injuries or damage to equipment. Maintenance is easy and fast to secure functionality. The lip of ASSA ABLOY swingdock levellers is tapered (bent) to prevent material handling equipment from “grounding out” on the bed of docked trailers.

+ Add to NBS Specification Downloads

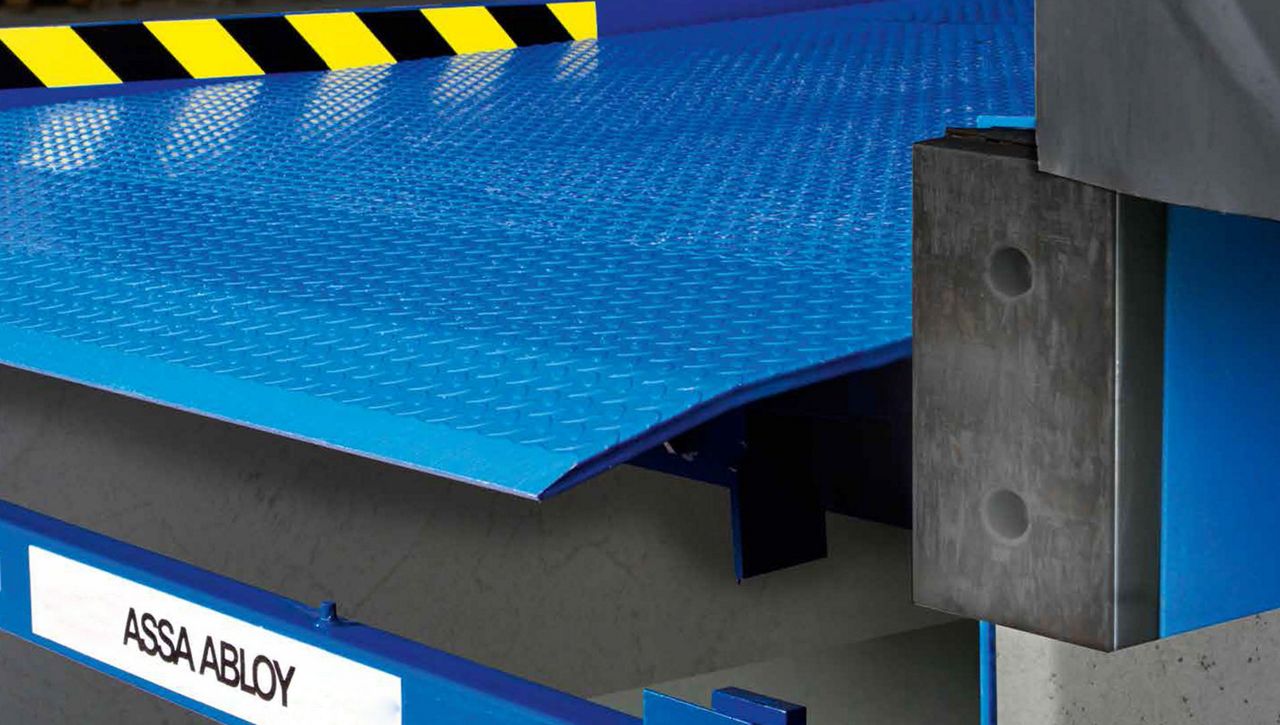

ASSA ABLOY DL6111S hydraulic swing-lip dock leveller
ASSA ABLOY DL6111S hydraulic swing-lip dock leveller



Hydraulic swing-lip dock levellers feature very robust swing-lip support with burned plates. All impact forces are absorbed optimally, reducing damage form impact of MHE movements and providing a long lifetime. Another outstanding feature is the lip design, with open hinges preventing the accumlation of debris and grime at the hinge. This low-maintenance solution guarantees trouble-free operation.

The innovative and unique ASSA ABLOY 950 series docking control system offers complete control of the dock leveller, dock shelter and door, all in one control unit. With very few self-explanatory buttons on the control unit, the system is easy to operate for all operators. Separate steering (control) units and complex wiring systems are no longer needed.



ASSA ABLOY DL6111S Swingdock 100 & 150

ASSA ABLOY DL6111S swingdock is a heavy-duty dock leveller with a load capacity of 100 kN or optional 150 kN. Robust and reliable construction guarantees high performance during the tough handling of high loads.

  • ASSA ABLOY DL6111S Swingdock 100 & 150

    • Product ID: DL6111S
    • Normal length 100 kN: 2000, 2500, 3000, 3500, 4000 mm
    • Normal length 150 kN: 2000, 2500, 3000 mm
    • Normal width: 2000, 2200 mm
    • Load capacity; 100 kN (10 tonnes), 150kN (15 tonnes)
    • Vertical working range 100kN; Rise above dock up to 490 mm, Fall below dock down to 310 mm
    • Vertical working range 150kN; Rise above dock up to 390 mm, Fall below dock down to 340 mm
    • Platform tear-plate thickness 100kN: 8/10 mm
    • Platform tear-plate thickness 150kN: 10/12 mm
    • Max point load leveller platform: 6,5 N/mm² (8 mm tear-plate & 10 mm tear-plate)
    • Lip material & length: Steel, 500 mm
    • Control unit protection class: IP 54
    • Nominal voltage: 400V 3-phase, 230V 3-phase
    • Nominal motor power: 1,5 kW
    • European standard: EN1398 dock levellers

10t or 15t load capacity

Open lip hinges construction

Safe for transfer of goods

Robust
