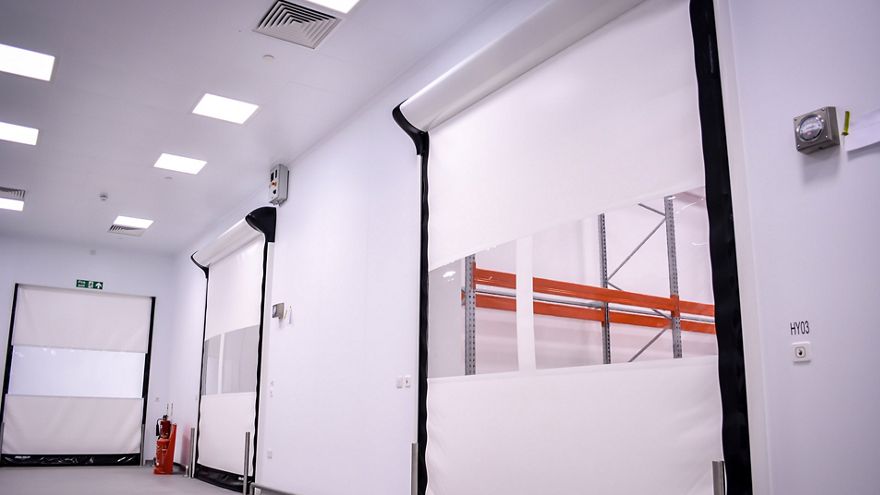

ASSA ABLOY HS9030GAT Cleanroom Door
Compact, airtight access solution for cleanroom efficiency in tight spaces
The ASSA ABLOY HS9030GAT is a compact, high-speed door designed for cleanroom use where space is limited and air control is essential. With certified air permeability to Class 4 and compliance with ISO 14644-1 Class 6 standards, it supports cleanroom integrity by helping to minimise particle transfer and maintain pressure balance. The integrated motor and slim profile allow for installation in tight spaces, while the continuous side sealing system provides reliable airtightness. Safety features include a soft bottom profile and a breakaway mechanism that resets automatically after impact to reduce downtime. Suitable for internal applications across sectors such as pharmaceuticals, electronics, and precision manufacturing.
Key features at a glance
- Airtight design for cleanroom environments
- ISO Class 8 and GMP Class D compliant
- Compact build, ideal for smaller openings
- Smooth, quiet operation with gravity-driven system
- Stainless steel or galvanised steel construction
- Break-away curtain with automatic reset
- Available with optional windows and vision panels
Compact, clean, and consistent
The ASSA ABLOY HS9030GAT is designed for smaller cleanroom spaces where hygiene, performance and control are essential. Despite its compact size, it offers reliable airtight sealing to help protect against airborne particles and maintain pressure stability. A frequency-controlled motor supports fast yet gentle movement, keeping operation smooth and wear to a minimum, even in high-use environments.
Reliable safety for controlled spaces
Built with user safety in mind, the HS9030GAT includes a soft bottom profile that gives way if met with resistance, along with an impact-absorbing curtain that detaches and resets automatically. A full-width light curtain adds extra protection across the opening. With a choice of colours, finishes, and optional curtain panels, the door can be tailored to suit cleanroom layouts where every detail counts.
- Door size max. 4000 x 4000 mm
- Opening / closing speed: up to 2.7 / 0.5 m / s
- Air permeability: class 4 positive pressure, class 3 negative pressure
- Pressure differences up to 50 PA
- Certification: ISO 6 (EN DIN standard EN 14644-1)
- Fraunhofer certificate
- Accident-forgiving crash system with automatic self-reset
- Soft finishing profile
