NASSAU 9000F Sectional Door
The NASSAU 9000F (Foam) door model has been developed for intensive daily use, and to cope with countless openings and closures. Robust by design, providing protection against the wind, rain and cold due to the combination of polyurethane foam sections and effective tight seals all the way round. This sectional door is ideal for factories and warehouses, logistics centres, agricultural buildings, just to name a few.
Sturdy & Stylish
To achieve greater longitudinal strength, the door leaf has a section height of 675mm and a thickness of 44mm, with highly insulated polyurethane foam sections. The front and back panels of the section are made from aluminium or hot galvanised steel with a stucco texture.
Select from a range of different track systems and colours: the NASSAU 9000F Sectional Door can be individually tailored to meet your bespoke requirements.
Maximise Insulation
Equipped with strong sealing strips to ward off wind and rain, the broken thermal bridges in the foam ensure outside temperatures cannot be transported through the door leaf. An expert combination of effective broken thermal bridges and highly insulated polyurethane foam provide optimised insulation. Fully tested, certified, and made in adherence with all current building regulations, a door-specific U Value is available by request.
A Superior Seal
The top seal fits on the top section, with all corresponding sections benefitting from a sealing strip: the bottom section has a rubber profile with internal and external lip seals. To secure tightness, a side sealing strip is attached to the vertical tracks to create a superior seal.
Safety First
Safety matters: A manually operated NASSAU 9000F Sectional Door is supplied with broken spring protection, with the option of additional broken wire protection. Protection plates are incorporated into its design to provide patented finger protection between the sections. This door complies with the EN standard in force and CE marking requirements.

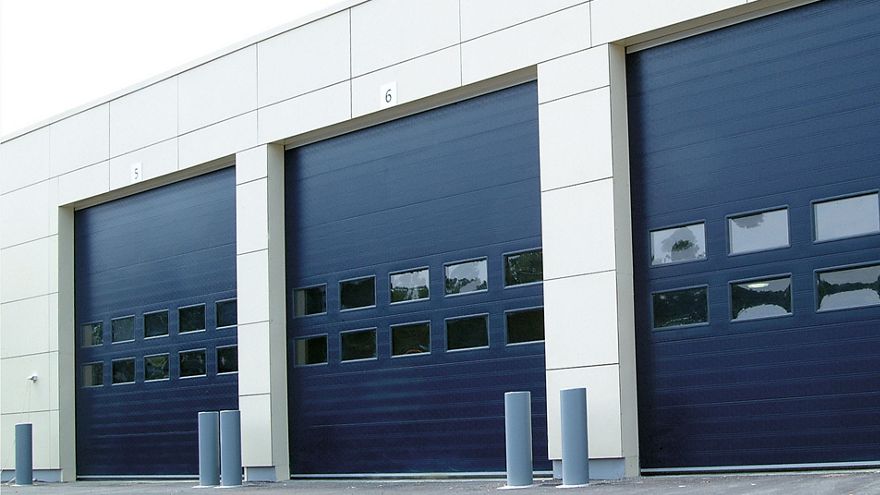

NASSAU 9000F insulated panel overhead sectional door
- Standard size up to (WxH) [1]: 8000 x 6000 mm
- Panel thickness: 44 mm
- Windows/Pass-door/Access and Automation: Optional
- Wind load, EN 12424 [2]: Class 3
- Thermal transmittance, EN 12428 [2]
- Full panel (steel) door [3] : 1,02 W/(m2K)
- Full panel (alum.) door [2] : 1,34 W/(m2K)
- Water penetration, EN 12425 [2]: Class 3
- Air permeability, EN 12426 [2]: Class 3
[1 ] Other sizes on request - up to 10m width on request.
[2] Values for aluminium door measuring 4m x 4m without windows and pass door.
[3] Values for steel door measuring 4m x 4m without windows and pass door.
Product variations Low Lift High Lift Standard Lift Vertical Lift with bracket-secured springs Low Head with standard spring placement High Lift with bracket-secured springs
