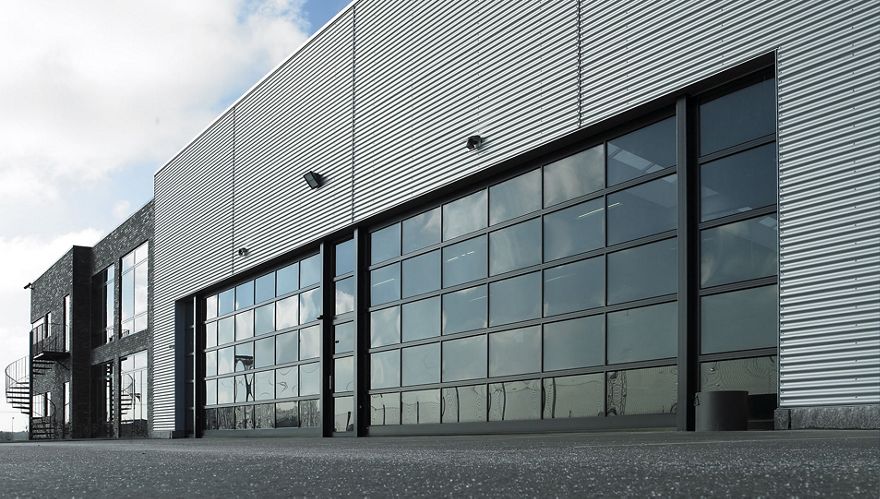

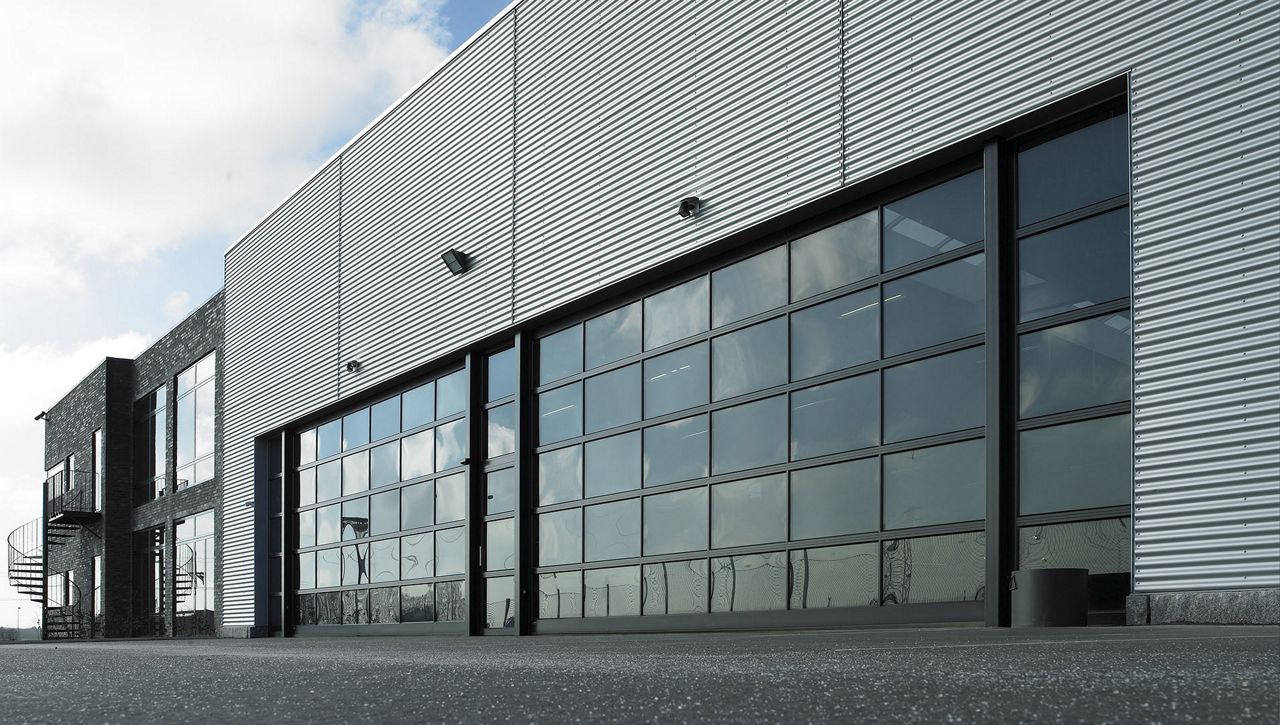

NASSAU 9000G Sectional Door
Specifically designed for buildings that require a lot of natural light, the NASSAU 9000G (Glazed) Sectional Door is ideal for car showrooms, service stations, multi-storey carparks and fire stations. Framed by lightweight yet strong aluminium profiles, this sectional door allows for lots of natural light inflow.
Choose from a range of different track systems and a wide variety of colours for your NASSAU 9000G Sectional Door.
A Range of Windows
You have a wide range of different windows to choose from for your NASSAU 9000G Sectional Door. They can be supplied in a combination of tempered glass or polycarbonate as an alternative to the 2.5mm double standard acrylic (SAN), if requested. An acrylic window with a scratch resistant finish and perforated panels can be fitted for more sensitive environments if you need added scratch protection.
Wind & Rain Protection
Secure protection against wind and rainwater with the strong sealing strips that have been built into the 9000G Sectional Door. The top seal is fitted at the top and the bottom section has a rubber profile with internal and external lip seals, with a sealing strip fitted to all other sections. To secure tightness, a side sealing strip is attached to the vertical tracks.
Highly insulating, the door leaf consists of aluminium profile sections built at different heights - from 400 to 675mm, with each section measuring 44mm in thickness. Each door is fully tested, certified and compliant with all current building regulations. A door specific U-Value is available upon request.
Safe & Secure
Supplied with broken spring protection with patented finger protection incorporated into its design, broken wire protection is also optional. Accidents are avoided thanks to the use of protection plates between the door rollers and vertical tracks. This door complies with the EN standard in force and CE marking requirements.
NASSAU 9000G (Glazed) overhead sectional door
- Standard size up to (WxH) [1]: 7000 x 5000 mm
- Panel thickness: 44 mm
- Wind load, EN 12424 [2]: Class 2
- Thermal transmittance, EN 12428 [2]
- Full panel (alum.) door [2] : 3,57 W/(m2K)
- Water penetration, EN 12425 [2]: Class 3
- Air permeability, EN 12426 [2]: Class 3
[1 ] Other sizes on request
[2] Values for aluminium door measuring 4m x 4m with double acrylic fillings
Product variations Low Lift High Lift Standard Lift Vertical Lift with bracket-secured springs Low Head with standard spring placement High Lift with bracket-secured springs
