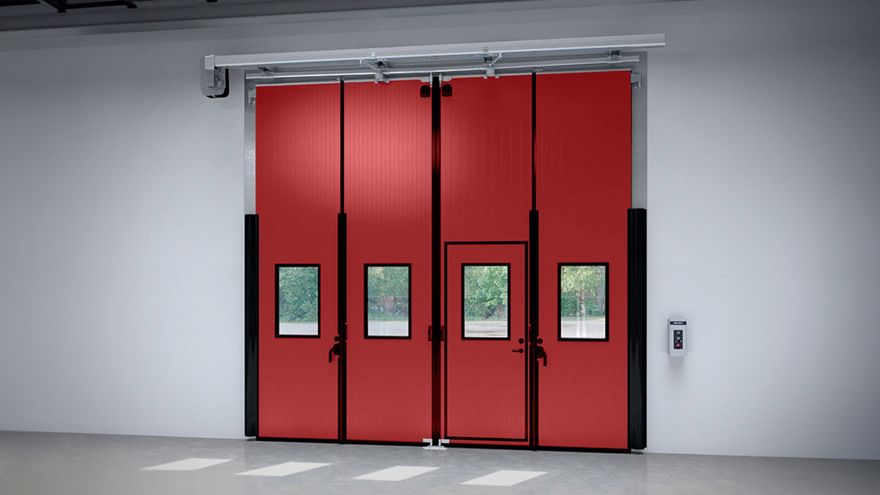

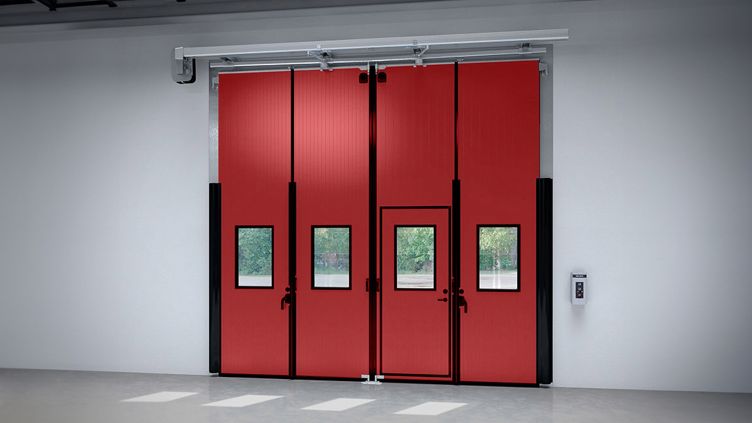

ASSA ABLOY FD2350P Insulated folding door
Save space and energy
The ASSA ABLOY FD2350P is a highly-functional folding door designed to optimize space and energy efficiency, whatever your application. Because energy saving is top of mind for most businesses, the door comes with optional panel insulation which improves its U-value. To keep inside temperatures steady, its broken cold bridge, tight weather seal, partial opening and optional pass door help keep air exchange as low as possible.
Easy operation with or without motors
Thanks to its easy-grip handle, this folding door can be manually operated with ease.
The motorized version enables both sides to be opened fast and smoothly by one or two operators depending on application and space around the door. Two motor options are available – DAAB MK2 and ASSA ABLOY CDM9 – with the latter’s IoT-connectivity allowing you to monitor your door’s operational activity in real time via our digital platform ASSA ABLOY Insight.
This also sends alerts in the case of breakdown or malfunction, or if your door is obstructed from closing and consequently wasting energy.
Reduced wear and tear – and collision risk
As the doors slide open, lifting hinges raise it off the floor, significantly reducing wear and tear. As the doors are always visible during opening and closing, the risk of collision is also greatly reduced. Different lock configurations and window options optimize light and improve your work environment, while a range of colors mean you can tailor your folding door to stylishly suit your personal business requirements.
- Standard size up to (W x H) * manually operated 7240 x 6000 mm
- Standard size up to (W x H) * electrically operated 5000 x 6000 mm
- Door leaf thickness 57 mm
- 11 standard colors
- Unlimited optional colors
- Pass-door (optional) built in door leaf or door leaf as a pass-door
- Wind load, EN 12424 manually operated class 5 **
- Wind load, EN 12424 electrically operated class 3 ***
- Thermal transmittance, EN 12428 1,1 W/ (m2K) ****
- Water penetration, EN 12425 class 3 ***
- Air permeability, EN 12426 class 5 ***
* Other sizes available on request
** DLW 4000 mm x DLH 3300 mm
*** DLW 5000 mm x DLH 3300 mm
**** Door configuration 5000 mm x 5000 mm
