ASSA ABLOY RD150 Compact Revolving Door
A secure, automated, and reliable entrance solution.

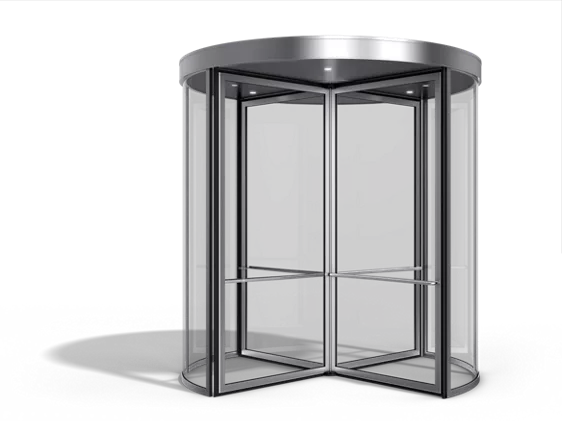

ASSA ABLOY RD100 Revolving Door
The ASSA ABLOY RD100 revolving door is a versatile, reliable, and secure entrance solution that is optimal for any setting that requires steady pedestrian flow. Prioritize sustainability and safety with the RD100, which welcomes users into both private and public settings with pace and comfort.
Equipped with many outstanding features like Smart Assist technology, speed control, power assist, and RC2/RC3 security, this entrance easy-to-install revolving door offers optimal security and the ability to create your signature entrance.
Versatile & energy-efficient
The ASSA ABLOY RD100 is a manual and energy-efficient entrance solution configurable as a 3-wing or 4-wing.
The perfect fit
It’s the perfect option for businesses seeking a compact, manual, and energy-efficient entrance without sacrificing quality. Designed for locations with steady pedestrian traffic, the RD100 combines user-friendly features with exceptional performance.
Smart assist technology
The RD100 is equipped with Smart Assist technology, allowing you to control the doors' movement manually. It responds gently to touch, adjusting to the user's pace and stopping at the ideal position, ensuring a smooth flow of people. Suitable for public and private offices, the RD100 maintains an optimal indoor climate and lowers operating costs thanks to its energy-saving capabilities and easy maintenance.
User-friendly & secure
The RD100 also boasts safety-enhancing features like soft door leaves, braking capabilities, and an intuitive Return-to-Home position. Additional protection is available at the RC2 and RC3 security levels. Reliable and sustainable, the ASSA ABLOY RD100 is the perfect entrance solution for any setting and is easily adjustable with one touch of a button.
Optimized door designs for accessibility and capacity
By design, a four-wing door has a wider throat opening than a three-wingdoor of similar diameter. The wider throat opening is more accessible, increasing user comfort and capacity. In smaller-diameter doors, the throat opening width becomes an influential factor in determining capacity. The two-wing options is used for our high-capacity doors, and come equipped with an automatic middle sliding door.
Product series specifications
| RD100 Manually operated with power | 1800 – 3000 mm | RD400 High Security | 1600 – 2500 mm |
| RD150 Fully Automatic | 1800 – 3000 mm | RD600 High Capacity 2-wing | 3600 – 5400 mm |
| RD200 Fully Automatic | 1800 – 4000 mm | RD700 High Capacity 3-wing | 4200 – 6200 mm |
| RD300 All Glass | 1800 – 3000 mm |
- Internal diameter D (mm) = 1800 – 3000
- Internal passage height IPH (mm) = 2200 – 3000
- Canopy height CH (mm) = 200 –1250
- Power supply: 100-240 VAC+10/-15%, 50/60 Hz, mains fuse max. 10 A (building installation)
- Powder-coated finish (RAL colours)
- Stainless steel cladding
