ASSA ABLOY DS6060A Curtain Dock Shelter Aluminium

Secure efficient weather protection and a high tear-resistance with a ASSA ABLOY mechanical-curtain dock shelter

The ASSA ABLOY DS6060A is a premium curtain dock shelter, designed to provide optimal energy efficiency and protection for loading and unloading operations. Equipped with a lightweight aluminium frame, this shelter ensures durability while maintaining ease of use.

As the vehicle reverses into the ASSA ABLOY DS6060A, the flexible side and top curtains create a secure seal, protecting both workers and goods from adverse weather conditions. This not only enhances the working environment but also ensures product safety during transportation.

+ Add to NBS Specification Downloads

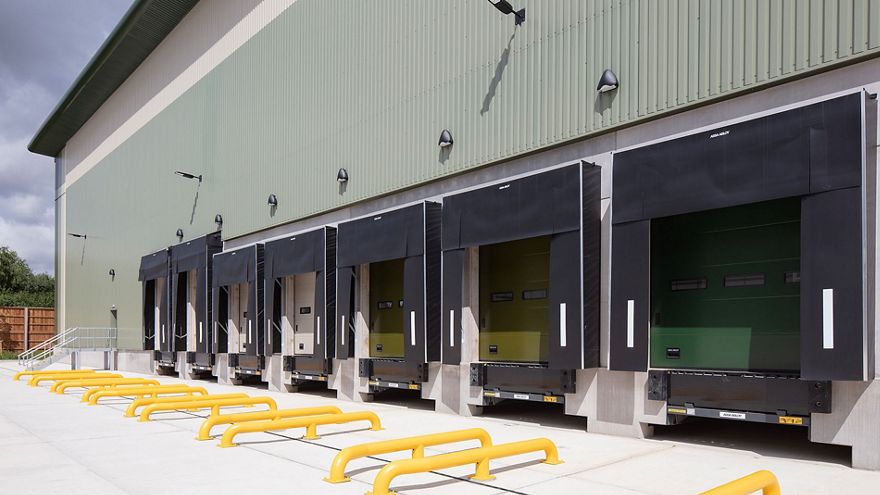

A row of ASSA ABLOY mechanical-curtain dock shelters
A row of ASSA ABLOY mechanical-curtain dock shelters



Key Features & Benefits:

  • Exceptional Durability: The curtain material is highly resistant to wear and tear, ensuring long-term reliability.

  • Versatile Compatibility: Designed to accommodate a wide range of vehicle sizes, making it an ideal choice for various operations.

  • Impact-Resistant Flexibility: Built-in spring mechanisms allow the shelter to absorb movements if a vehicle deviates from the dock-in centerline, minimising damage.

  • Cost-Effective Performance: A high price-performance ratio makes this dock shelter the preferred choice for European loading bays.



Innovative Curtain Fixation System

Unlike conventional dock shelters, the ASSA ABLOY DS6060A features a unique steel ball fixation system for securing the front curtains. This advanced method enhances tear resistance by eliminating weak points caused by traditional screws or rivets. The factory-made perforations ensure superior durability, reducing maintenance needs and extending the product’s lifespan.

Sustainability & Environmental Focus

ASSA ABLOY is committed to sustainability. All ASSA ABLOY mechanical dock shelters can be equipped with optional enhancements to further improve working conditions and minimise draught into the building, creating a more energy-efficient and comfortable workspace.

Upgrade your loading bay with the ASSA ABLOY DS6060A Curtain Dock Shelter – the industry standard for durability, flexibility, and efficiency!
Download banner with a person typing on a laptop.Download banner with a person typing on a laptop.
ASSA ABLOY DS6060A Curtain Dock Shelter Aluminium

BIM object

Download the file

Weather protection

Collapsable frame

Frame parts of aluminium

Medium sizes range

Downloads

  • ASSA ABLOY DS6060A Curtain Dock Shelter Aluminium

    • Product Id : DS6060A
    • Normal height: 3200, 3400, 3600 mm
    • Normal width: 3250, 3450 mm
    • Normal depth: 600, 900 mm
    • Top curtain: 1000, 1200 mm
    • Side curtain: 600, 700 mm
    • Curtain colour: black
    • Parking guides: white, yellow
    • Wall fixings: concrete, sandwich,light concrete, loadhouse, cavity, insulated panel
    • Top and side curtains: double layer high quality polyester
    • Thickness: 3,0 mm
    • Weight Approx.: 3400 g/m²
    • Continuous roof cover: one layer high quality polyester
    • Thickness: 0,5 mm
    • Weight Approx.: 680 g/m²
    • Flammability all curtains: DIN 75200
    Environmental Product Declaration

    Available for this product download here:
