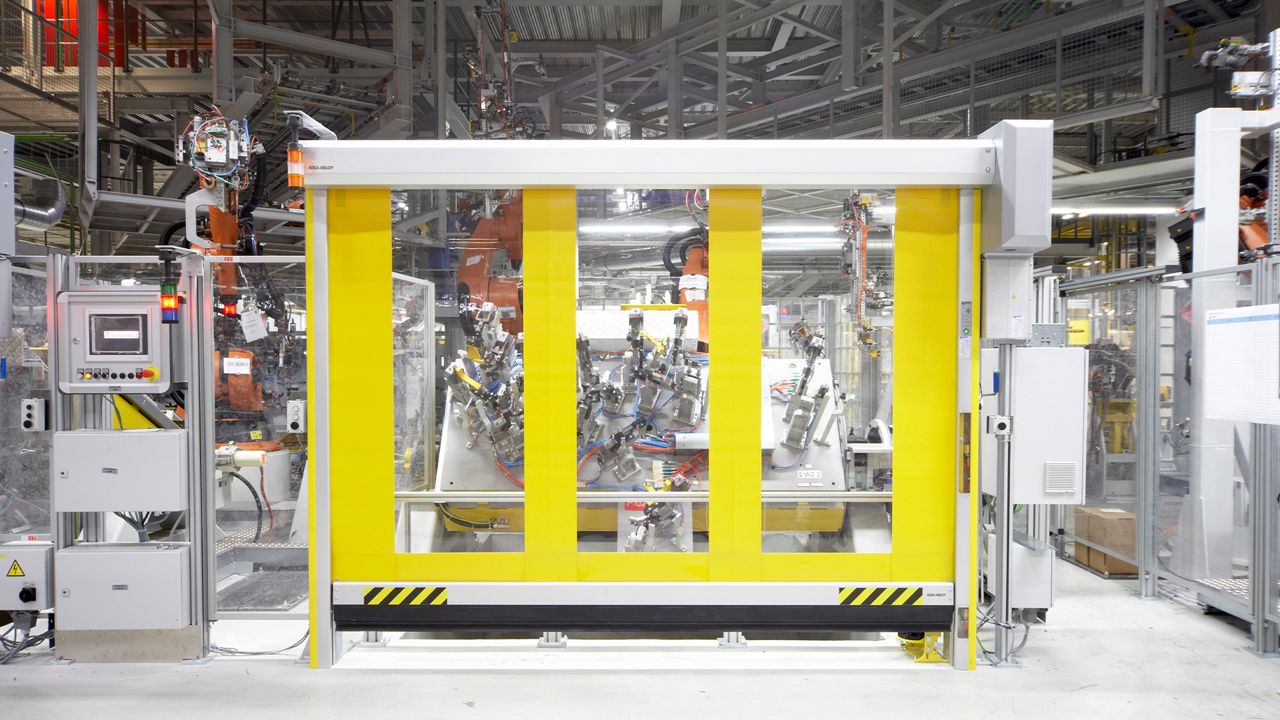

ASSA ABLOY RP300 Machine Protection Door
High-speed, compact door solution for automated production lines
Tough, fast and built for demanding environments, the ASSA ABLOY RP300 machine protection door is purpose-made for automated production lines.
Designed to support smooth, efficient operations, the RP300 opens and closes at high speed to keep cycle times short and production moving. Its compact design means it fits neatly into tight spaces, making it ideal for installations close to machinery where every millimetre matters.
The door’s integrated safety system includes pre-running and door-line photo cells housed within the side frames, helping to protect workers without slowing down the process. It connects easily to automated systems and supports key safety standards, giving you peace of mind with every operation.
Built with a minimal number of moving parts, the RP300 is easy to install and maintain. It’s a robust, low-maintenance solution that stands up to the demands of daily use in high-speed environments.
Whether you’re working with robotic cells, conveyor lines or other automated setups, the ASSA ABLOY RP300 helps create a safer, more productive space, without getting in the way.
Key features at a glance
- Conforms to EN ISO 13849-1, EN 62061 and CE safety standards
- High-speed operation – up to 5 cycles per minute
- Reliable performance over extended high-cycle use
- Optional safety contact edge or touchless photocell
- Electrical safety limit switches integrated into the side frame
- Optional anti-UV or transparent windows for process visibility
- Aluminium side frames allow easy access for inspection
- Available with MCC or ACS 50 control system
- Suitable for integration into machines and production lines
- Also available in upside-down configuration for vertical access
Built for safe, consistent performance
The ASSA ABLOY RP300 range is designed specifically for machine protection. These high-speed fabric doors support smooth, uninterrupted production by opening and closing rapidly, reducing downtime and enabling shorter cycle times. Each model complies with relevant safety standards and can be integrated directly into machines, production lines, or enclosed work areas. A range of safety features, including electrical contact edges and safety limit switches, helps maintain protection for operators and equipment.
Flexible control and minimal maintenance
With side-mounted motors and user-friendly control systems, the RP300 series is both space-efficient and easy to maintain. The aluminium frame allows straightforward access for servicing, and the integrated cable chain keeps wiring secure and protected. Whether you need a standard, wide, or upside-down variant, each door is built for repeatable, long-term use in automated environments where safety and reliability are essential.
ASSA ABLOY RP300 Machine protection door
- Door dimension (mm) max. 4000 x 3500 mm
- Speed open/close: up to max. 2.4/1.8 m/s depending on control systems
- Cycle number/minutes max. 1 – 5
- Door Curtain: Depending on application, various door curtains and colors are available, from partially transparent PVC curtains with colored reinforcement stripes to highly rigid durable material, protect against sparks. Optional anti-UV welding windows that conform to EN 1598 are also available.
- Side frames are made of two aluminium profiles, integrated safety limit switches connect the door with the machine. Window areas allow easy monitoring of integrated safety limit switches.
- Safety limit switches according to EN ISO 13849-1 and EN 62061
- Doors conform to EN ISO 12100 and EN 1088
- Control systems: Depending on the application 2 control systems which offer a broad spectrum of speeds, power supplies and options for safety devices. Door without a control system is possible. UL-Version as option.
- Space saving extension box allows mounting of interface card or safety monitoring module for safety limit switches.
- Connectin to the machine
- Motor Power 0,75 KW
- Protection IP 55
- Mains connections different from contron system, see technical data sheet
- Safety features: Electrical safety contact edge and door line photocell, pre-running photocell as option
- The door is designed according to the Workplace Directive of the UVV regulations and the harmonised CE Guidelines including the EN 13241-1 and 98/37/EG.
Special:
- Short cycle times up to 5 cycles per minute is possible
- The door can be mounted freestanding on floor with optional mounting brackets.
- Flexible positioning of the gear motor can be mounted on the left or right side of the door. The motor can tilt in 45° increments for easy positioning and installation
- Self-Supporting: the door can be mounted directly to the floor with optional mounting brackets. Levelling screws allow the door to be levelled on uneven surfaces.
Product leaflet
Product specification text
Product drawings
Product variations Description RP300 Wide Safety switch cat. 4, MCC and pre running, and door support frame for easy integration in production lines RP300 USD PLe according EN ISO 13849-1, photocell for high speed and short cycle time, and durable RollTex door blade for welding applications
