Reliable access solutions for food processing facilities
The ASSA ABLOY HS-GHY range is designed specifically for hygiene-sensitive environments where operational speed, safety, and compliance are key. Both the HS9120GHY and HS9030GHY models offer smooth, high-cycle performance with minimal maintenance, making them well suited to food production settings.
The HS9120GHY features a corrosion-resistant stainless-steel build, a break-away curtain with automatic reset, and a full-width light curtain for added safety. An optional touch-free opening system is also available to support strict hygiene protocols.
For smaller internal openings, the HS9030GHY provides a compact, space-efficient solution with reliable sealing, flexible curtain technology, and an intuitive control unit. Both models help maintain climate control and reduce energy loss while supporting regulatory compliance through tested and certified designs.
Purpose-built for hygiene-critical environments
The ASSA ABLOY HS-GHY Food Processing Doors are designed for areas where cleanliness and control are essential. This high-speed interior door supports reliable operation in hygiene-sensitive spaces such as food production and pharmaceutical processing. With its stainless steel frame and corrosion-resistant components, it performs reliably in humid or washdown-prone environments while helping to separate clean and non-clean zones efficiently.
Fast, contact-free entry with built-in protection
Speed and safety come as standard. The HS9120GHY can be equipped with a touch-free opening system to reduce contact and lower the risk of contamination. In the event of a collision, the door curtain releases and resets automatically, helping to avoid disruption. The flexible bottom edge prevents injury or damage, while an optional light curtain ensures the door stops and reopens if any obstruction is detected. Designed for easy integration and low maintenance, the HS9120GHY supports smooth, hygienic operations every day.
All HS-GHY food processing doors feature a break-away and automatic reset system that allows the curtain to reinsert itself after a crash, minimising downtime and reducing maintenance needs. Powered by a frequency-converter driven motor, these doors ensure smooth and dependable operation. As hygiene and food safety standards become more demanding, ASSA ABLOY offers solutions that are certified to support compliance. The HS9120GHY, for example, is HACCP International certified, offering an assurance of suitability for hygienic applications.

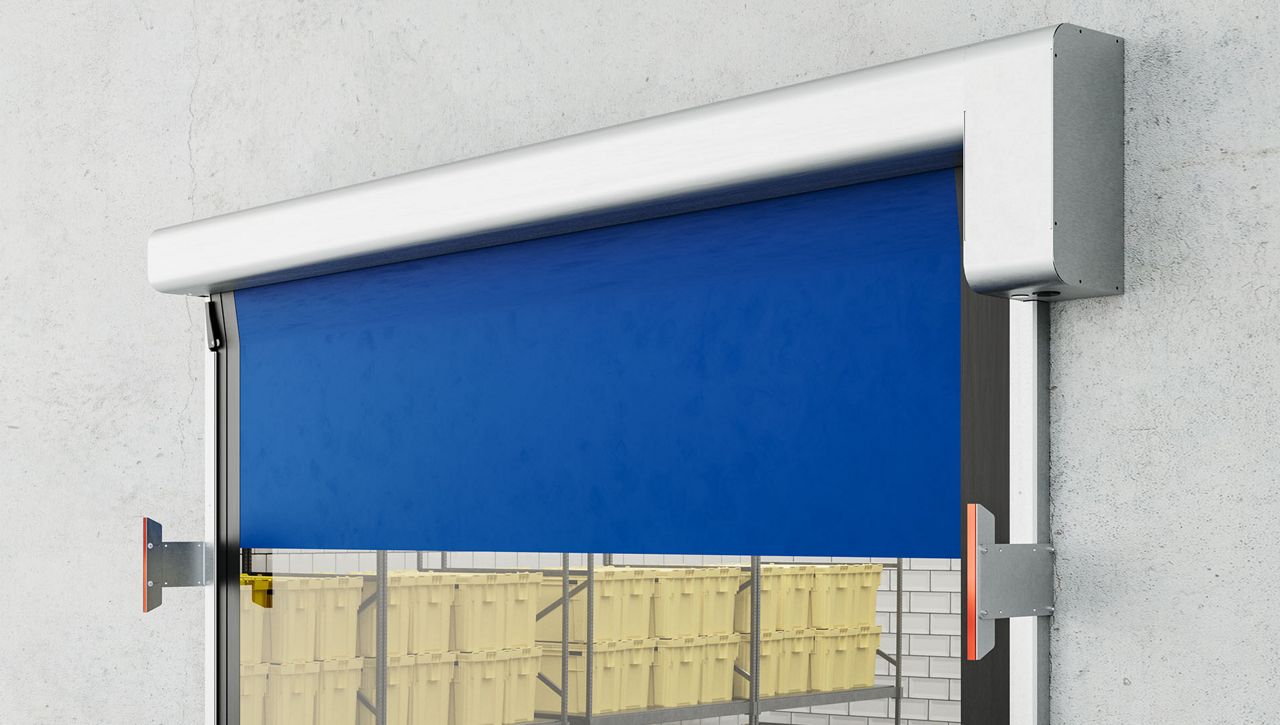

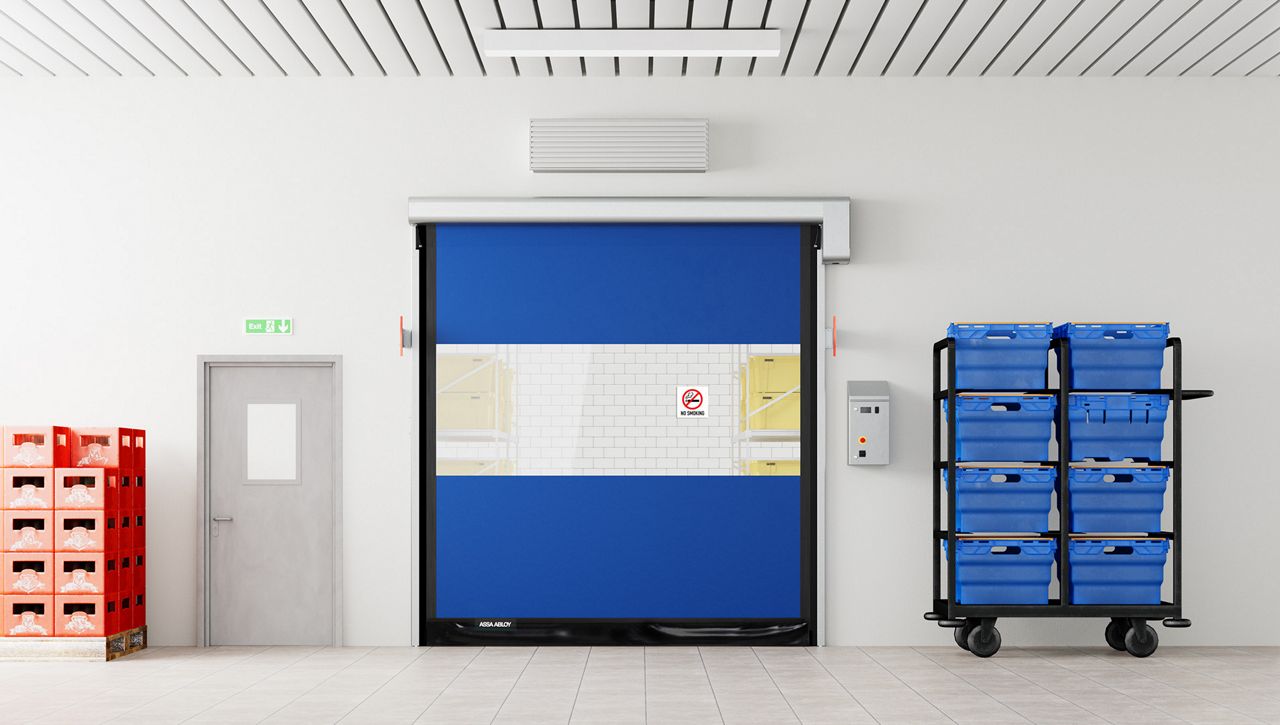

The ASSA ABLOY HS9120GHY is a robust high-cycle door built for demanding applications in humid or corrosive environments, such as food production areas. Constructed from stainless steel, it offers excellent corrosion resistance, durability, and ease of cleaning. With an opening speed of up to 2 meters per second, it improves traffic flow and operational efficiency. For enhanced safety, the HS9120GHY includes a light curtain that spans the entire width of the door up to a height of 1600 mm; if any obstruction is detected, the door automatically halts and reopens. The soft-bottom profile contains no rigid elements and safely gives way if an obstruction is encountered. The door is also available with the optional SPOT ON touchless opening system, which allows for completely contact-free access — an ideal solution for hygiene-sensitive environments. Additionally, an insulated curtain can be selected to improve acoustic insulation and reduce energy loss between controlled environments.
The ASSA ABLOY HS9030GHY is the most space-efficient high-speed door in the market, specifically engineered for medium-sized interior openings in food processing environments. With dimensions of up to 4000 x 4000 mm and a fast opening speed of up to 2.7 meters per second, it ensures high operational efficiency. Its stainless steel 304 construction and corrosion-resistant components make it suitable for humid or corrosive environments. The door uses a gravity-driven system and features a flexible curtain with no stiffeners, which increases safety by allowing the curtain to conform to any obstructions. The break-away feature enables the curtain to release from its side guides on impact and automatically reinsert itself, preserving the integrity of the door and avoiding unnecessary downtime.
The HS9030GHY is equipped with a continuous side curtain seal that helps prevent drafts, pests, and air transfer between production areas, which is critical in maintaining hygiene and climate control. A user-friendly control unit housed in a robust steel box offers easy configuration and diagnostics through a clear, informative display, including a cycle counter and status indicators.
Both HS9120GHY and HS9030GHY models embody ASSA ABLOY’s commitment to providing hygienic, safe, and efficient access solutions tailored to the unique needs of the food processing industry. Whether for high-speed interior access or partitioning between zones, these doors offer long-term performance, energy savings, and peace of mind in maintaining food safety standards.
If you’re looking to enhance hygiene, streamline traffic, and improve safety within your food production facility, ASSA ABLOY HS-GHY high-speed doors offer a proven and certified solution.
ASSA ABLOY HS9120GHY
Opening speed up to 2,2 m/s (Option: 2,0 m/s)
BIM objects
Download these products as BIM objects here:
ASSA ABLOY HS9030GHY
BIM objects
Download these products as BIM objects here:
Product variations | Description |
---|---|
HS9020GHY | Stainless steel door structure, break-away - an automatic reset system, soft bottom profile and high speeds up to 2,0 m/s. |
HS9030 GHY | Stainless steel door structure, break-away - an automatic reset system, opening speed up to 2,7 m/s and drum motor, hidden in top roll. |
