NASSAU 9000 Panorama Sectional Door
The door that adds natural light to your indoor climate

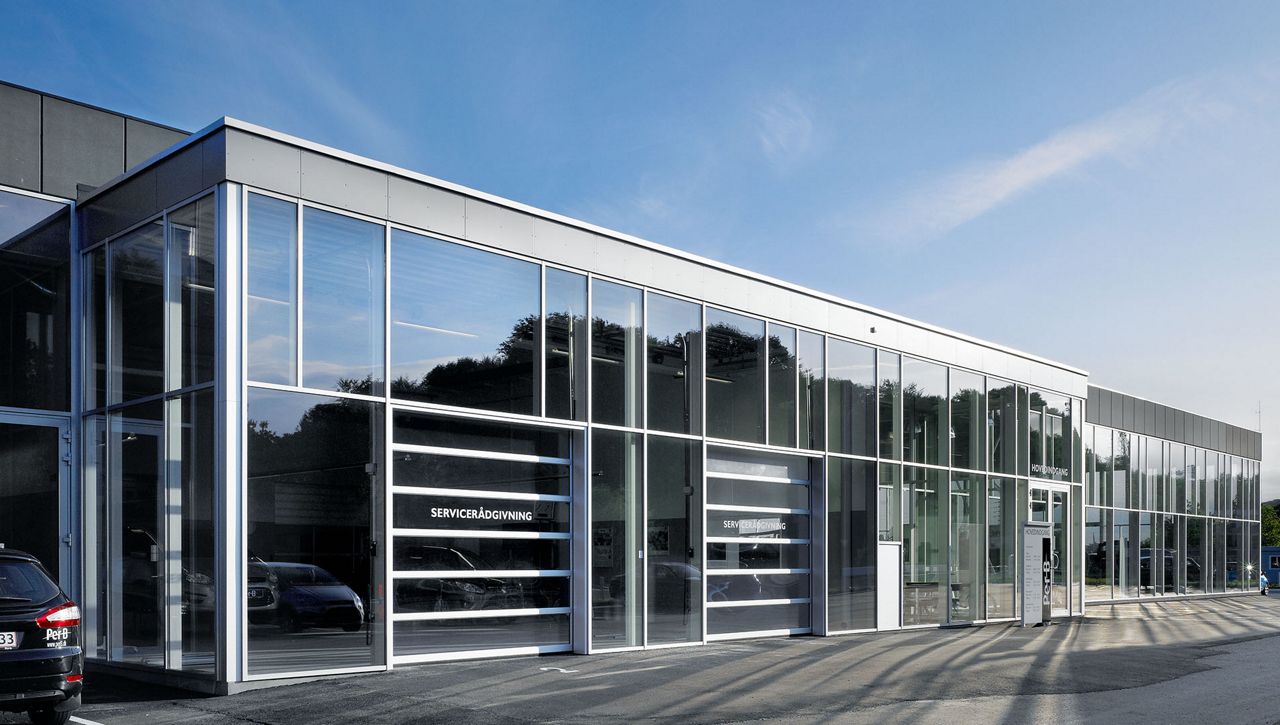

Designed especially for buildings whose operations rely on a lot of natural light, the NASSAU 9000P (Panorama) Sectional Door does not have any vertical bars obstructing the windows. Ideal for car showrooms, warehousing and production environments, this sectional door is elegant in appearance, with clean lines and a large inflow of light. The door appears light and can be adapted to the architectural lines of the building.
Customise: choose from a range of different track systems and a wide variety of colours for your NASSAU 9000P Sectional Door.
Door Leaf Design
Maximum glazing within the door leaf optimises light inlet, adding vibrancy to the inside of your facility. The panorama effect is created through a combination of light, but strong, extruded and anodised aluminium profiles - with uniform section heights for aesthetic balance - and glazing options to suit requirement. Double polycarbonate or scratch resistant acrylic are robust options, and of the highest quality.
The door is supplied in a maximum 5000mm x 5000mm, with the door leaf consisting of aluminium profile sections without vertical bars. The sections are 44mm thick and the maximum height of the door’s middle section is 500mm. For your protection, the door has been designed in accordance with special regulations that ensure the necessary stability in the barless window sections.
Wind & Rain Protection
Strong sealing strips are built into the NASSAU 9000P Sectional Door that protect your building from wind and rainwater. The top seal is fitted at the top and the bottom section has a rubber profile with internal and external lip seals, with a sealing strip fitted to all other sections. To secure tightness, a side sealing strip is attached to the vertical tracks.
Safe & Secure
This sectional door is supplied with broken spring protection and patented finger protection. Essentially, you cannot trap your fingers in between door sections due to the deliberately placed protection plates. Broken wire protection is also available to you and your door complies with the EN standard in force and CE marking requirements.
NASSAU 9000P (Panoroma) overhead sectional door
- Standard size up to (WxH) [1]: 5000 x 5000 mm
- Panel thickness: 44 mm
- Windows: Polycarbonate 2x3mm
Scratch Resistant Acrylic - Wind load, EN 12424 [2]: Class 2
- Thermal transmittance, EN 12428 [2]
- Full panel (alum.) door [2] : 3,57 W/(m2K)
- Water penetration, EN 12425 [2]: Class 3
- Air permeability, EN 12426 [2]: Class 3
[1 ] Other sizes on request
[2] Values for aluminium door measuring 4m x 4m with double acrylic fillings
Product variations Low Head High Lift Standard Lift Vertical Lift with bracket-secured springs Low Head with standard spring placement High Lift with bracket-secured springs
