ASSA ABLOY DL6010SM Swingdock Minidock Leveler

If you’re using a fleet of standardized vehicles with similar trailer bed heights, you need a straightforward, economical docking solution—so we built exactly that. A gas spring and crank lever make this minidock easy and ergonomic to operate by hand.  No need for a power supply or big energy bills.

Get in touch to buy this product Service and maintenance

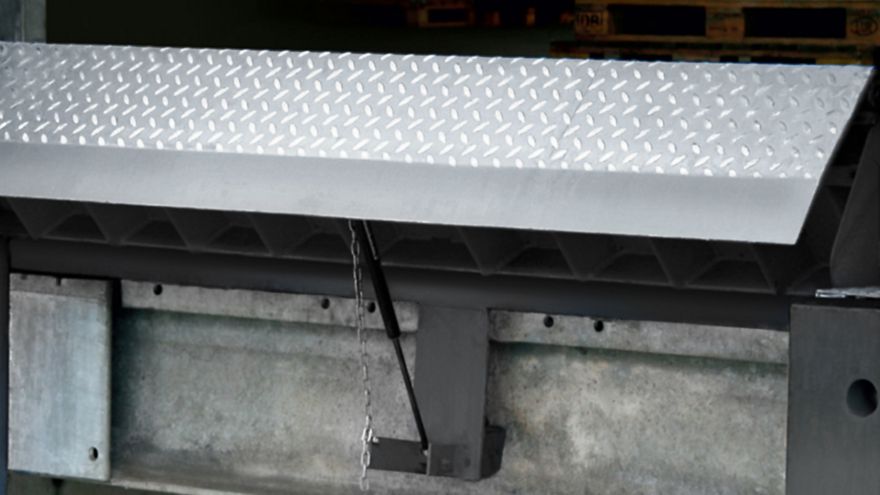

Installation of a galvanized swingdock minidock leveler.
Installation of a galvanized swingdock minidock leveler.

Bump-free and built for buffers

We’ve made the steel lip of the DL6010SM extremely flat, ironing out any bumps between the building and the truck bed at the dock edge. And unlike other dock levelers you can choose to fix buffers to the frame when it’s installed. So your brickwork and levelers stay well protected while drivers perfectly position their vehicles.

  • ASSA ABLOY DL6010SM

    • Nominal Length: 700mm
    • Nominal Width: 2000mm
    • Load capacity: 6 tonnes (60kN)
    • Color : RAL 9005- Standard paint class
    • Color options: Other colors Available on request
    • Buffers:  100X250X400-Standard
    • Installation Type: Ramp installation
