ASSA ABLOY
ASSA ABLOY DL Swingdock
Robust and easy to maintain for maximum functionality.

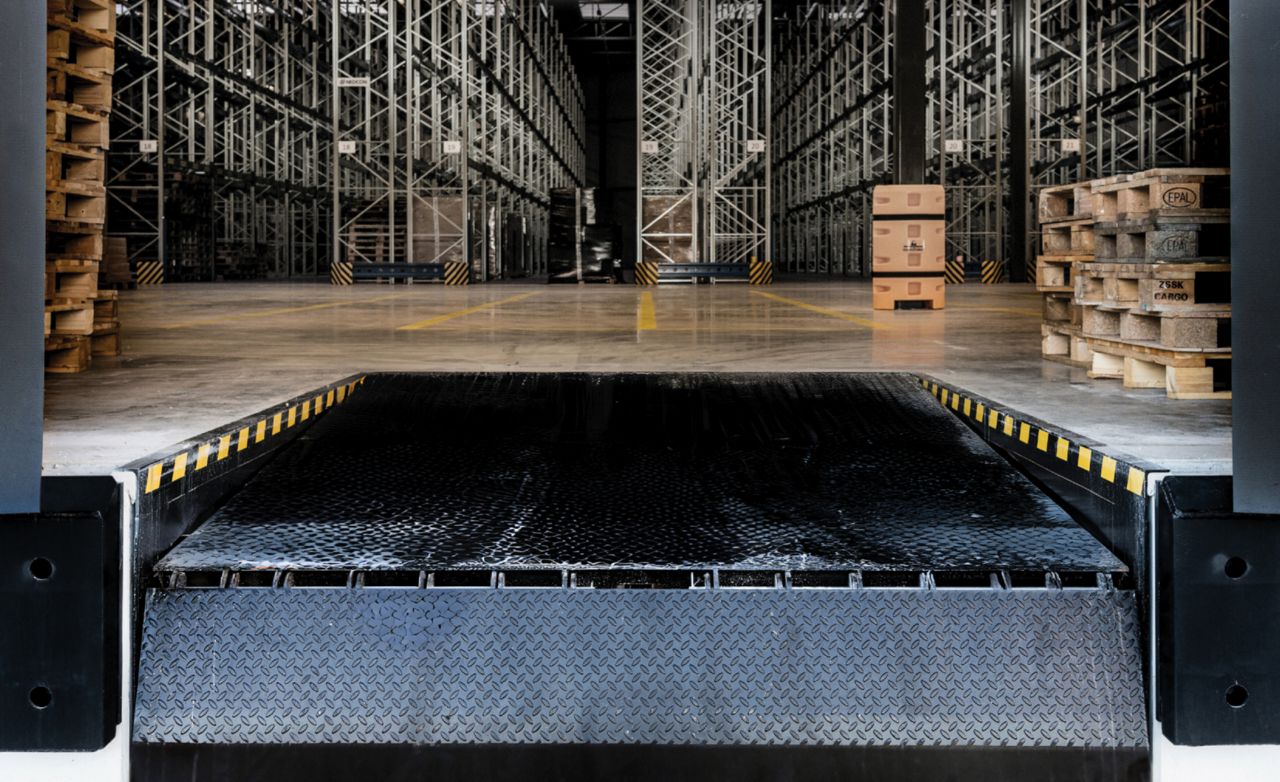

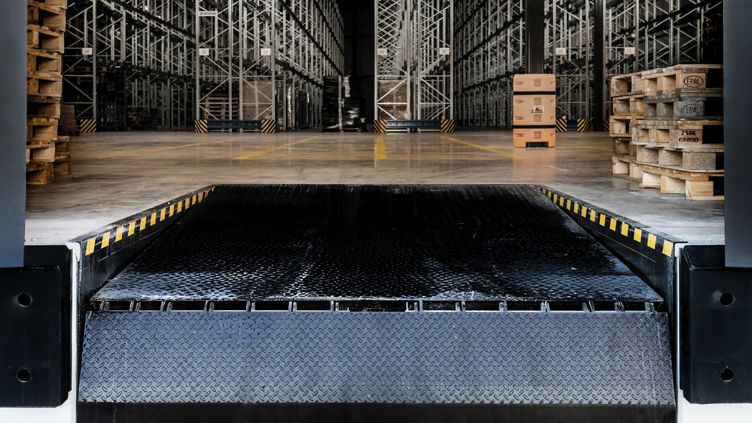

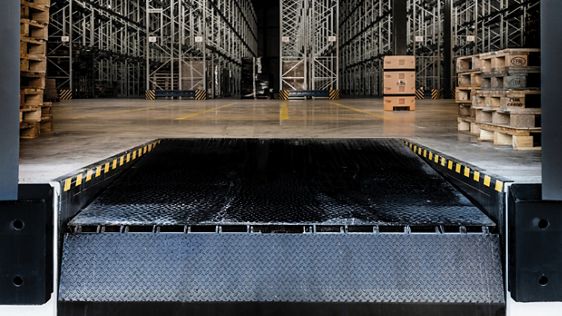

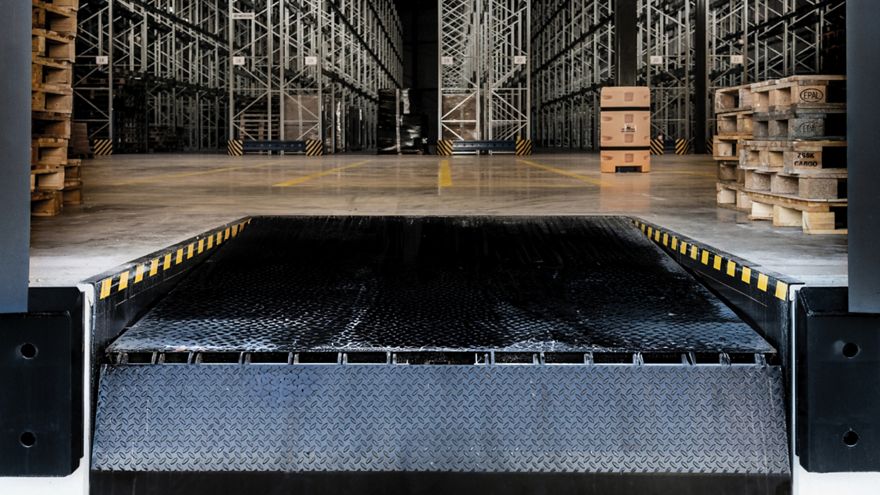

ASSA ABLOY Swing DL6010 SE
Opt for the durable and super easy to install ASSA ABLOY hydraulic swing-lip dock levellers to ensure optimal performance.
These hydraulic swing-lip dock levellers are engineered to facilitate safe and efficient loading and unloading, minimizing downtime. This design ensures a high level of safety during goods transfer, preventing injuries and equipment damage. Additionally, maintenance is quick and straightforward, ensuring continued functionality.
Adhering to IS3502, E250A standards, ASSA ABLOY DL6010 SE delivers exceptional strength and longevity. Lighter and easy to install, this dock leveler is specially designed for Indian environment.
Various safety features like emergency stop function, toe guard protection and safety valves to prevent lowering movement beyond the safe gradient, makes ASSA ABLOY DL6010 SE model as one of the best solutions for the warehouses and logistics application areas.
ASSA ABLOY DL 6010SE-In
- Normal length: 2500, 3000 mm
- Normal width: 2000, 2200 mm
- Load capacity; 60 kN (6 tonnes)
- Vertical working range; Rise above dock up to 350 mm, fall below dock down to 300 mm
- European standard: EN1398 dock levellers
- Standards: CE
- Lip material & length: Steel, 400 mm
- Control unit protection class: IP 55
- Temperature range hydraulic oil: -20°C - +60°C
- Motor: 1.1 kW
- Nominal voltage: 380V 3-phase
- Platform tear-plate thickness: 7 mm with 1mm chequered plate
- Lip tear-plate thickness: 10 mm +1mm chequered tape with 40mm bevel
