ASSA ABLOY SW60 Swing Door Operator

ASSA ABLOY SW60 swing door operator – redesigned with you in mind.

The ASSA ABLOY SW60 packs quite a bit into a small package. The SW60 is aesthetically appealing with a sleek design and ability to fit in spaces with limited overhead space. With its slim profile, app compatibility and quick install time, the SW60 offers tremendous functionality and flexibility when it comes to converting existing manual doors to automatic.

The SW60 features a low profile automatic door operator with impressive features such as free swing, push & go and ratchet function. The operator can be integrated with electric strikes, door mounted presence sensors (approach side only) or touchless activation units.

This operator is the perfect choice for applications for single doors such as restrooms, offices, senior care or public buildings.

Service and maintenance

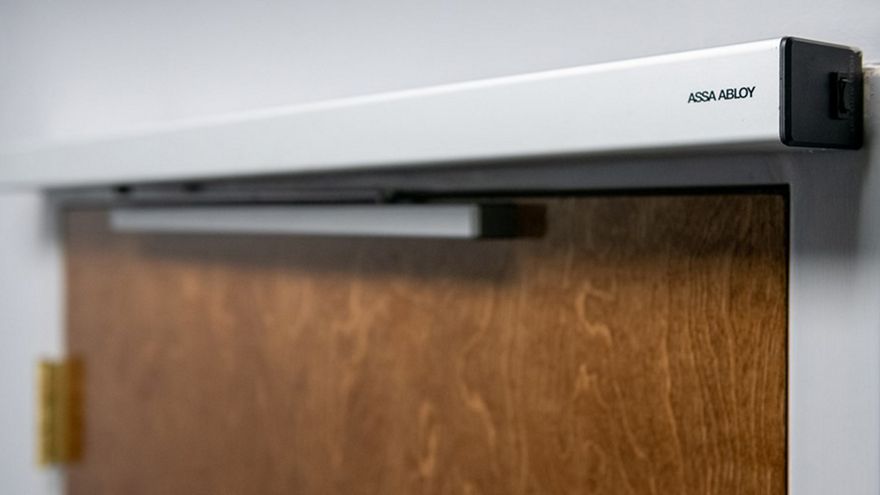

Close-up of the ASSA ABLOY SW60 Swing Door Operator on a brown wooden door.

ASSA ABLOY SW60
Product ID: SW60
Low profile appearance: 1-7/8” (47mm) high by 3 1/4” (83mm) deep
39.5” Header
Max weight: 200lbs
Max width: 48”
Non-handed
Single applications
Exterior doors that may be subject to low/mild wind conditions or stack pressures
Interior doors
ANSI compliance: A156.19
Push or pull application
Clear or dark bronze anodized finish
Electric strike integration
Integration with door mounted presence devices for safety (approach side only)
Touchless wave plate compatibility
Time delay cancellation, door parking, ratchet function
Standard: on-board power supply
Option: plug-in power (no electrician required)
Mobile app compatibility (ASSA ABLOY Swing Door Manager)
