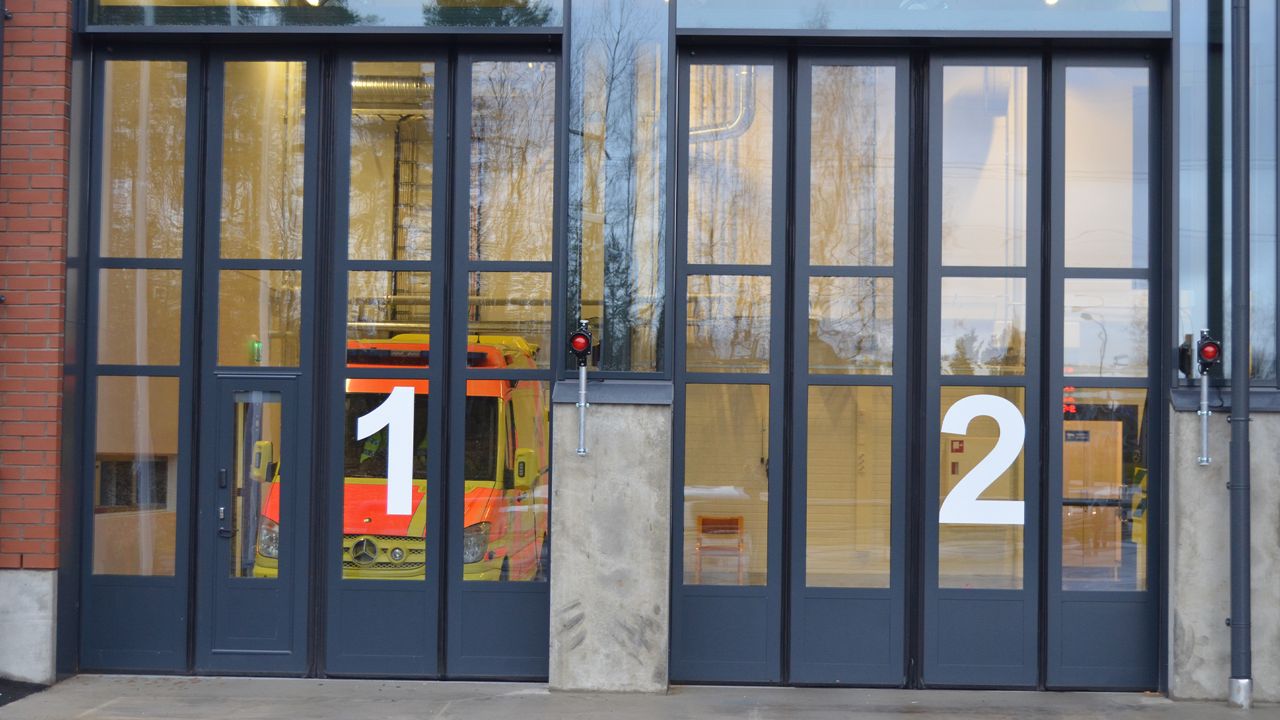

ASSA ABLOY FD2050F Glazed Folding Door

BIM object

  • Fully-glazed folding door ASSA ABLOY FD2050F

    • Standard size up to (W x H) [1]: 7590 x 6000 mm
    • Frame thickness: 50 mm
    • Filling: acrylic/glass/panels
    • Colours: Frame standard - anodised RAL9006 optional - unlimited; Fillings standard - anodised RAL9006, optional - unlimited
    • Pass-door (optional): built in doorleaf as a pass-door
    • Thermal transmittance, EN 12428 [2]: 3,75 W/ (m2K)
    • Wind load [3], EN 124243: class 2
    • Air permeability, EN 12426: class 3
    • Water penetration, EN 12425: class 2

    [1] Other sizes available on request

    [2] 4000 x 4000 mm, 2 + 2,2 rows windows type DAD/DAS

    [3] Higher wind load on request
