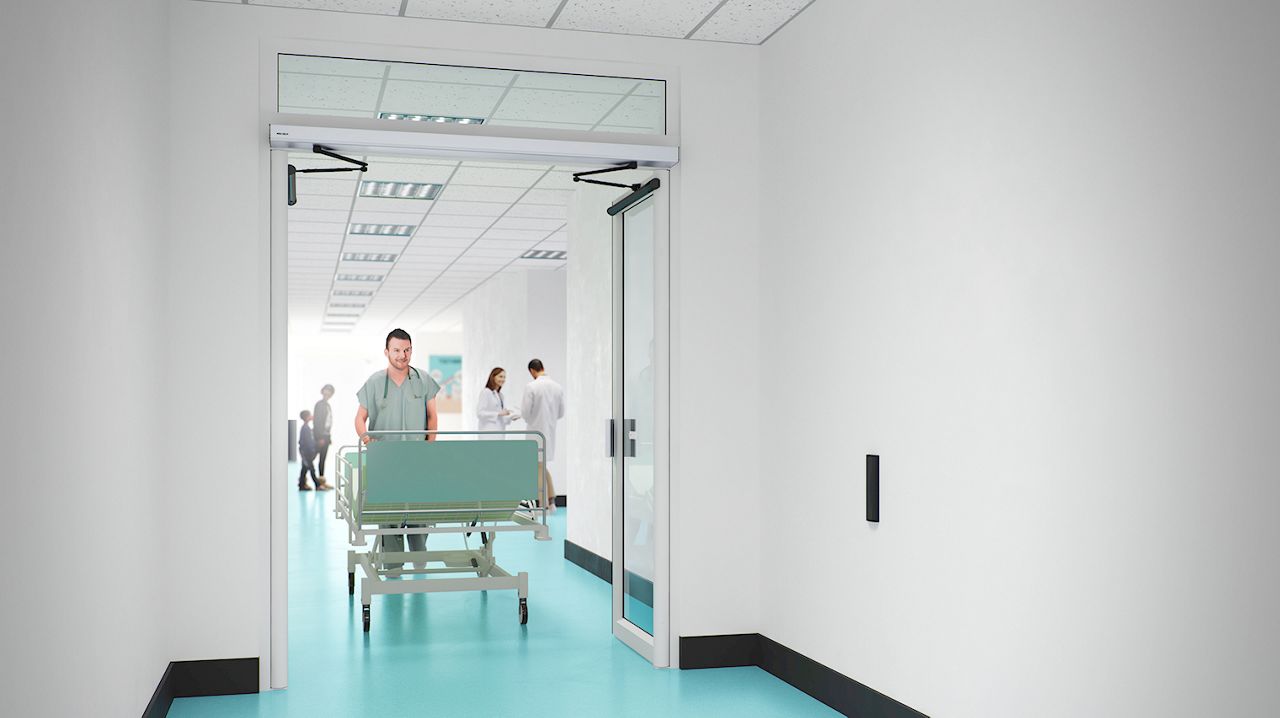

ASSA ABLOY SW300 Slim Swing Door Operator

BIM object

  • ASSA ABLOY SW300

    • Product ID: SW300
    • Power supply: 100-240 VAC +10/-15%, 50/60 Hz, mains fuse max. 10A (building installation)
    • Power consumption max.: 300 W
    • Auxiliary voltage: 24 V DC, max. 700 mA
    • Monitored battery backup unit: 24 V DC
    • Electromechanical locking connection: 12 V DC, max. 1200 mA or 24 V DC, max. 600 mA
    • Ambient temperature: -20 °C to +45 °C
    • Relative humidity (non condensing) 95%
    • Recommended max. door weight and door width Inertia J: PUSH = 140 kgm² and PULL = 80 kgm²
    • Class of protection IP20
    • Integrated coordination unit for double fire doors
