ASSA ABLOY HS90-Series Emergency Exit Doors
Make your premises safer for its occupants by installing the fast and reliable ASSA ABLOY (previously Albany Doors) high-speed emergency exit doors.
The absence of stiffeners, combined with a flexible curtain that moulds itself, ensures high safety for personnel and equipment. Exceptional reliability and smooth operation are ensured by a motor driven by a frequency inverter. This technology ensures a soft start and stop, which increases the longevity of the motor considerably.
ASSA ABLOY HS9010PEM
ASSA ABLOY HS9010PEM is designed for medium-sized openings and high-speed, heavy-duty operations. The unique direct door drive system eliminates the need for weighted bottom bars or tension systems. To increase natural light, the door curtain can be equipped with vision panels.

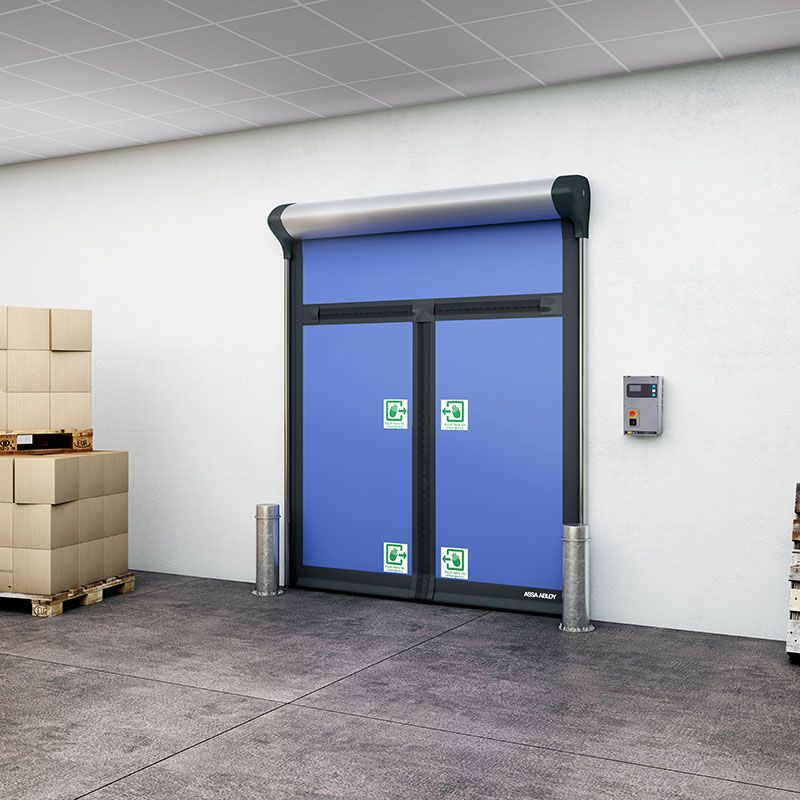

ASSA ABLOY HS9030GEM
ASSA ABLOY HS9030GEM is a compact door with an emergency exit. It is designed for medium-sized openings. With an integrated motor, it is extremely space-efficient. To increase natural light, the door curtain can be equipped with vision panels.
Manual activation: the door can be opened by manually releasing the brake on the balancing system. As an option the door can be equipped with a hand lever on both sides and/or with an automatic activation. The door opens automatically in the event of a power outage.
In both cases the springs of the balancing system are released and the door opens to a maximum height of max. 2.0 m (depending on the size).
ASSA ABLOY HS9010PEM
- Medium-sized, max. 5500 x 5500 mm
- Heavy-duty operations
- Integrated Emergency exit
- Galvanised steel construction
- Unique direct door drive system
- Opening speed up to 2,0 m/s
BIM objects
Download these products as BIM objects here:
ASSA ABLOY HS9030GEM
- Medium-sized, max. 3500 x 3500 mm
- Space saving design
- Integrated Emergency exit
- Galvanised steel construction
- Gravity door drive system
- Opening speed up to 2,0 m/s
BIM objects
Download these products as BIM objects here:
Product leaflet
Product datasheet
Product specification text
Product variations Description HS9010PEM Easy to operate emergency exit feature, opening speeds up to 2,0 m/s, soft bottom profile and break-away - an automatic reset system. HS9030GEM Easy to operate emergency exit feature, opening speeds up to 2,0 m/s, soft bottom profile and break-away - an automatic reset system.
