Energy-efficient
With significantly improved insulation to improve energy savings.

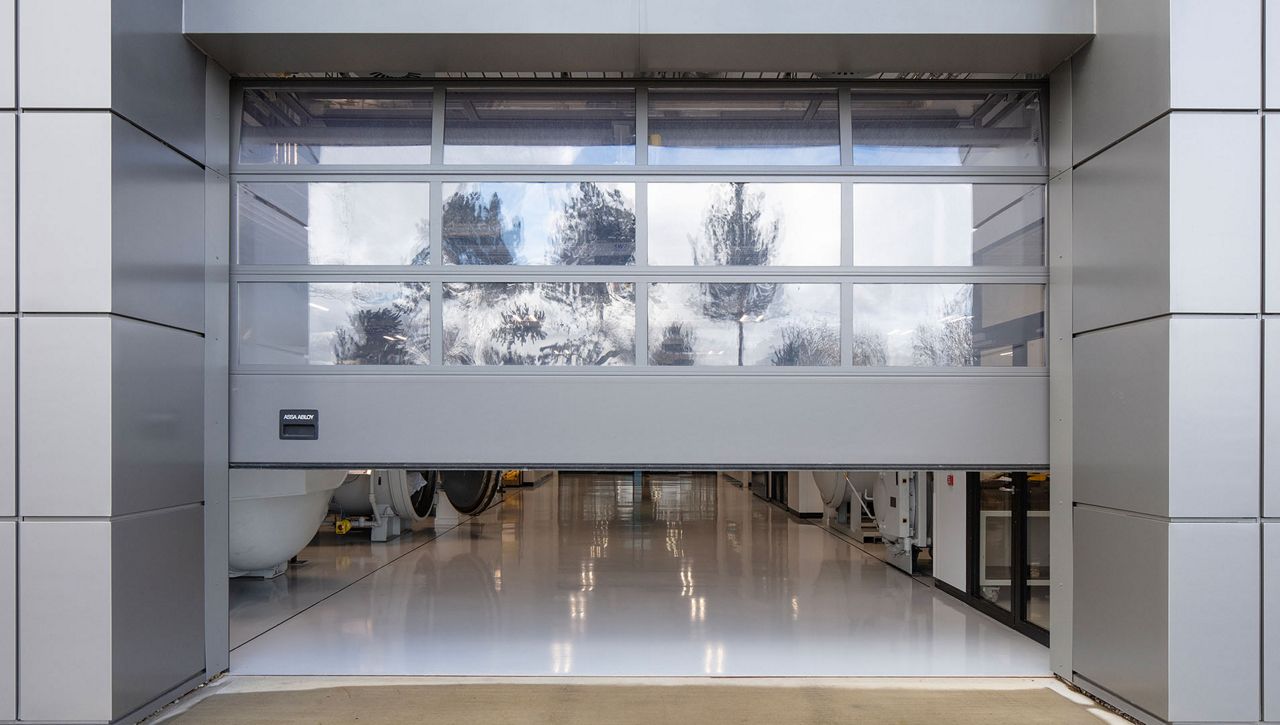

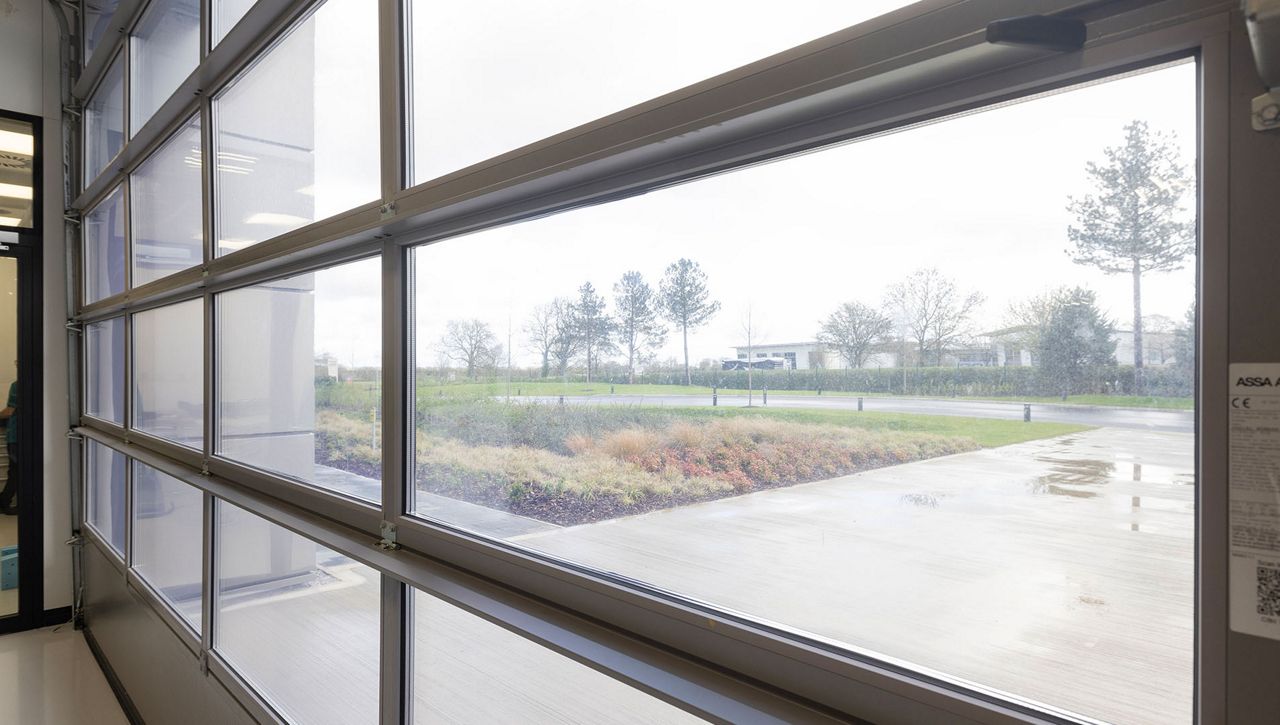

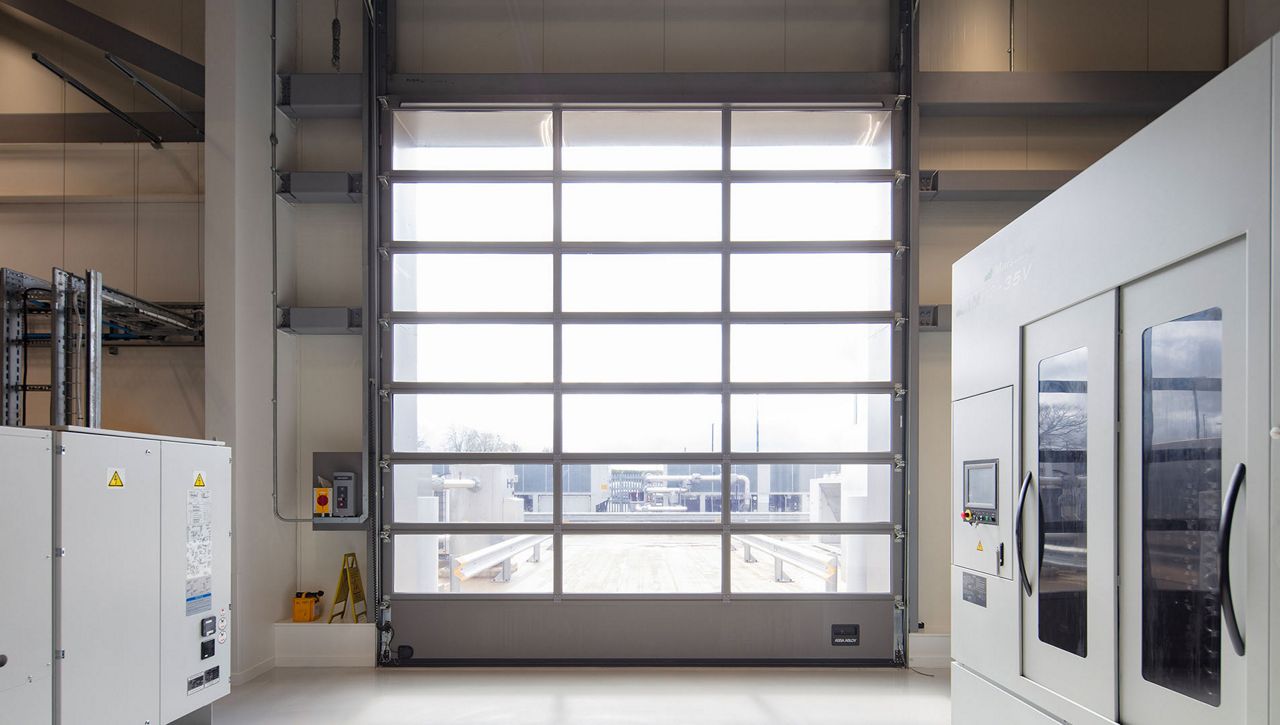

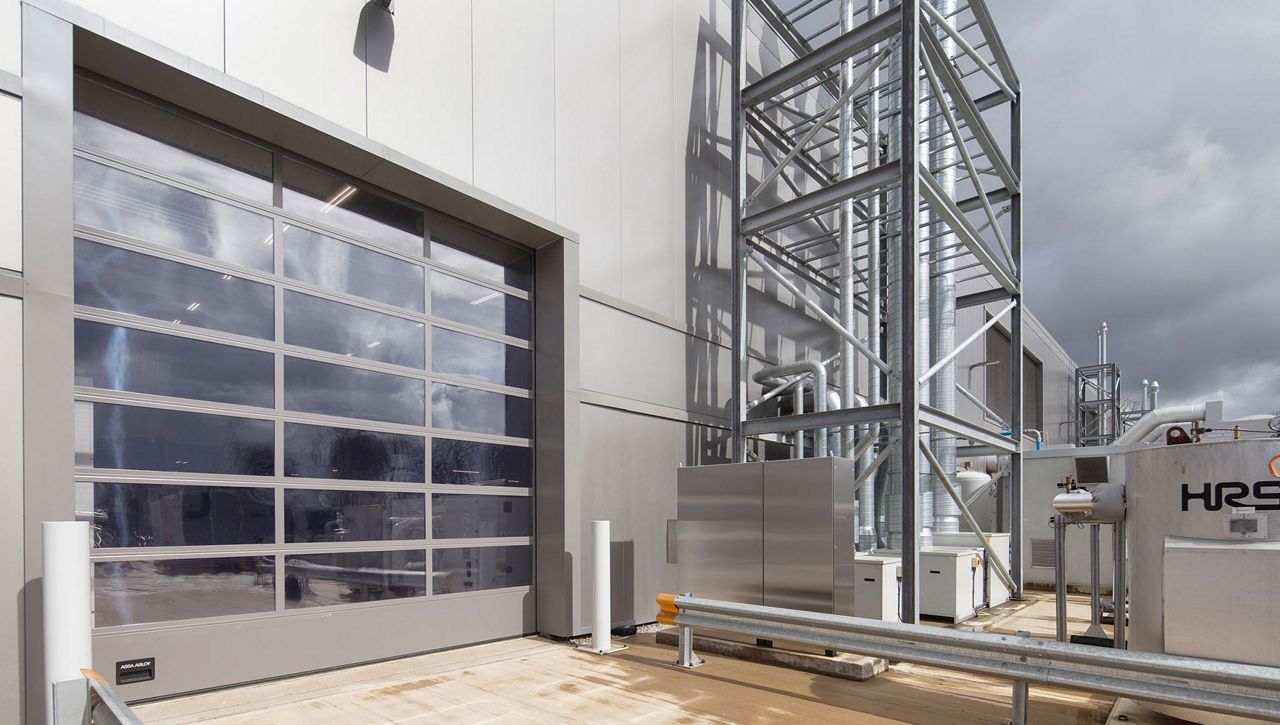

Crawford OH1042FI Glazed Insulated Doors
The Crawford OH1042FI Glazed Insulated Door is the ideal choice for businesses that require both excellent visibility and energy efficiency. Perfect for spaces such as showrooms, workshops, and other high-traffic environments, this door combines the benefits of large glazing areas with exceptional insulation properties. Its design features a broken cold bridge that improves insulation and reduces energy consumption while also preventing issues like condensation and ice buildup, making it suitable for a wide range of climates.
Insulated
Combination of insulated panels and frame sections with broken cold bridge.
Semi-transparent
Available in frosted or tinted glass to increase natural light while limiting visibility from the outside.
Transparent
Configurable with different types of glass increasing the visibility through the door.
Key features and benefits
- CEN Safety Assured – Meets European safety standards for improved reliability and security.
- Improved Thermal Efficiency – Insulated frame minimises heat loss and prevents condensation.
- Customisable Appearance – Available in a range of glazing options and panel configurations.
- Robust and Low Maintenance – Strong aluminium frame with durable, energy-efficient panels.
Customisable and functional design
With a flexible and adaptable design, the OH1042FI enables businesses to customise the door to their specific requirements. The sturdy 42mm aluminium frame can be configured with various window and infill panel combinations, allowing for a perfect balance of natural light and privacy. Whether you choose transparent or semi-transparent glazing, the door can be tailored to provide optimal lighting and visibility for your space. Additionally, its overhead sectional design maximises usable floor space by sliding vertically into the ceiling or above the entrance.
Durability and performance
Built for longevity, the Crawford OH1042FI features a robust construction that ensures consistent, long-term performance. The insulated panels improve thermal efficiency while maintaining structural integrity. With multiple track options, including SL, HL, LL, VL, HHL, and SLL, this door offers flexible installation to suit different building layouts. Designed to endure demanding environments, it provides reliable operation while lowering energy costs and creating a more comfortable workspace.
- Standard size up to (WxH) [1]: 7250 x 6050 mm
- Frame thickness: 42 mm
- Bottom section thickness: 42 mm
- Windows: Various options available
- Pass-door: Not available
- Access and Automation: Optional
- Track options: SL, HL, LL, VL, HHL, SLL
- Wind load, EN 12424 [2]: Class 3 W < 4250, Class 2 W > 4250
- Thermal transmittance, EN 12428 [3]: 2,6 W/(m2K) triple acrylic glazing 3,1 W/(m2K) double acrylic glazing 2,2 W/(m2K) Double hard energy glass
- Water penetration, EN 12425: Class 3
- Air permeability, EN 12426: Class 3
[1] Other sizes on request
[2] Higher wind load classification on request
[3] Door size 5000 x 5000 mm
Crawford OH1042FI OVERHEAD SECTIONAL DOOR
Environmental Product Declaration
Available for downloads
